Crankshaft and Components

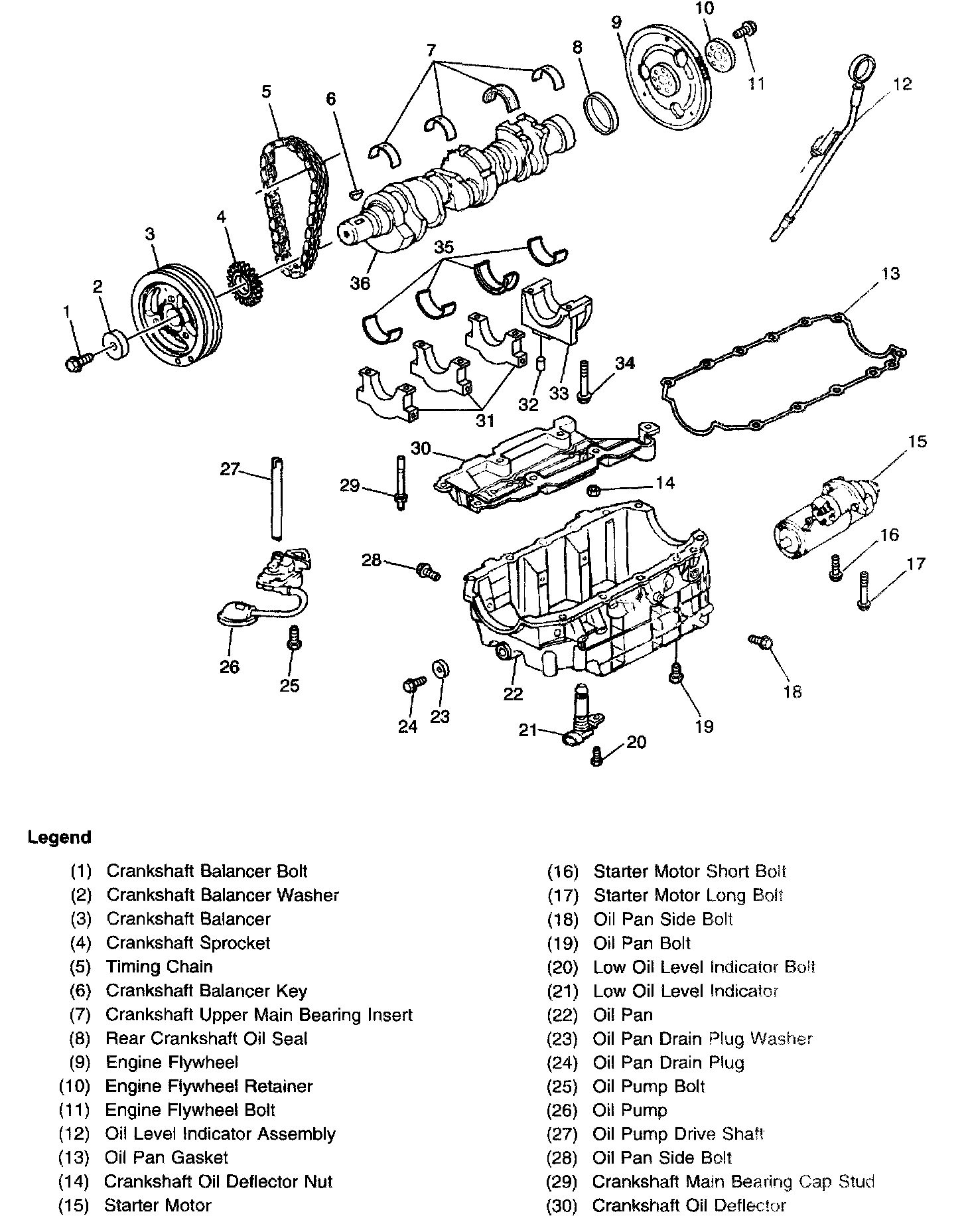

Crankshaft and Components (Part 1 Of 2):




Crankshaft and Components (Part 2 Of 2):





Crankshaft and Components
