Air Recirculation Malfunction

AIR RECIRCULATION MALFUNCTION









Test Description

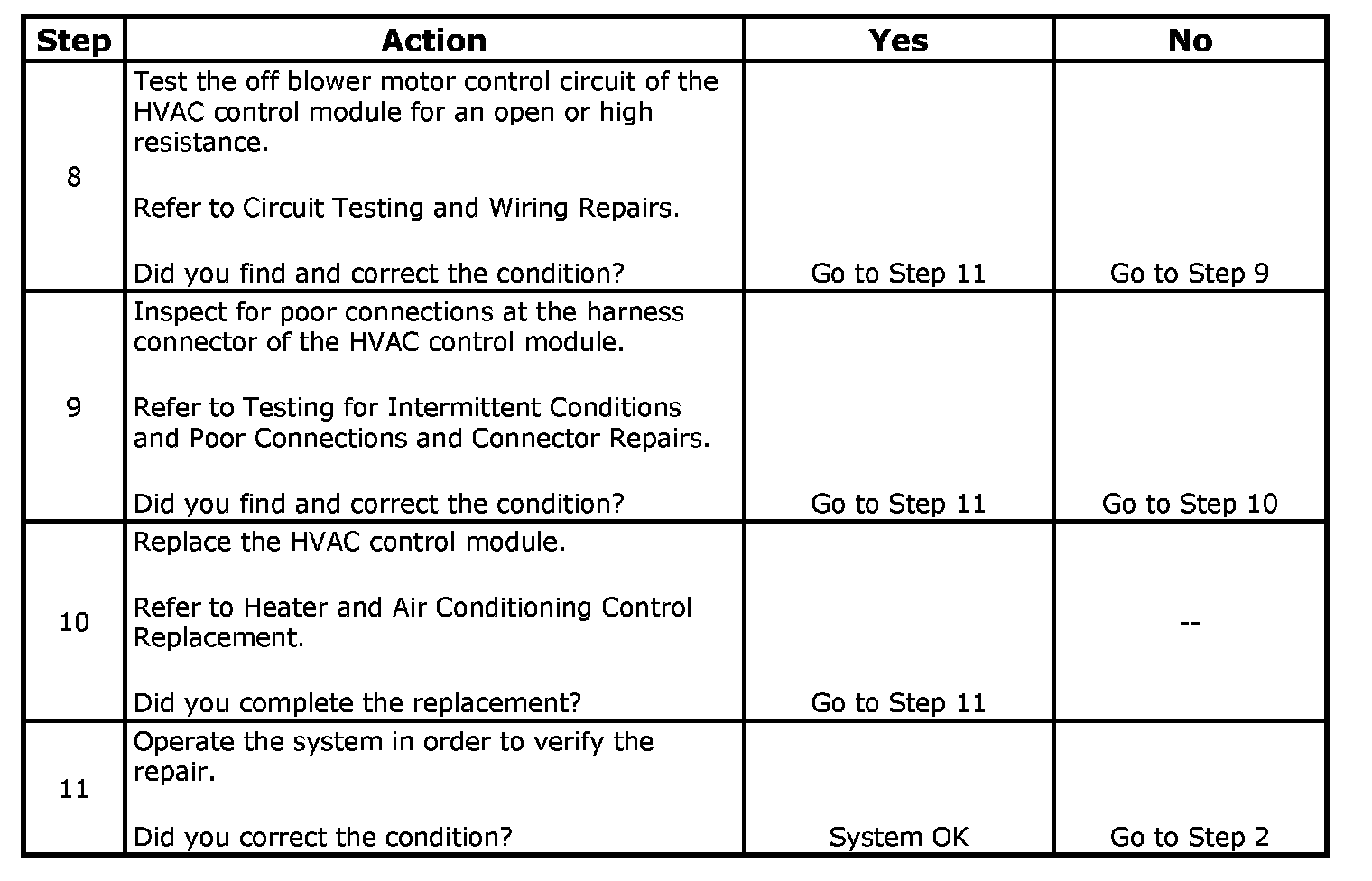

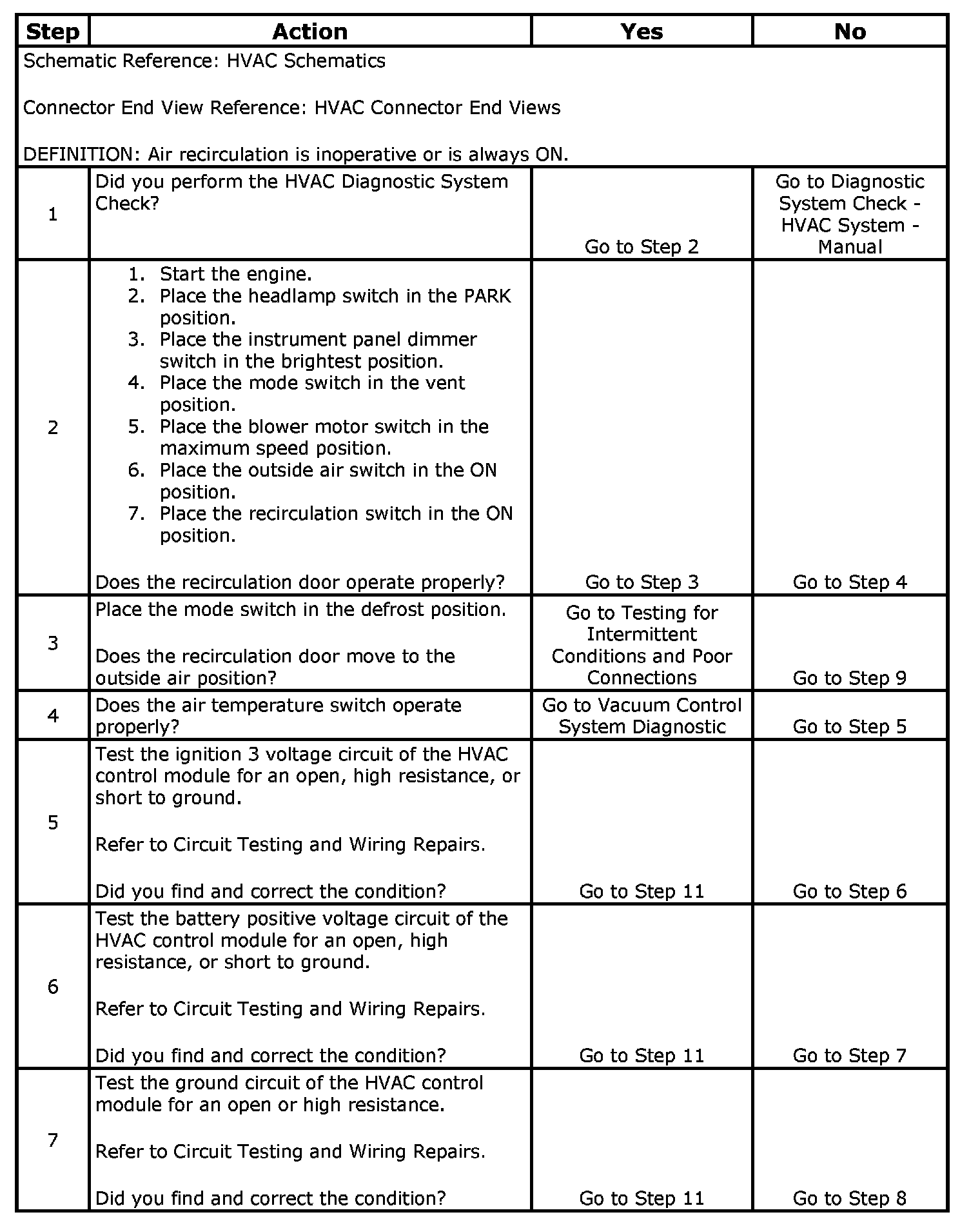

The numbers below refer to the step numbers on the diagnostic table.

5. There are 2 ignition 3 voltage circuits at the HVAC control module. Test the circuit that is not the supply voltage circuit for the blower motor switch.
