Too Cold in Vehicle

TOO COLD IN VEHICLE















Test Description

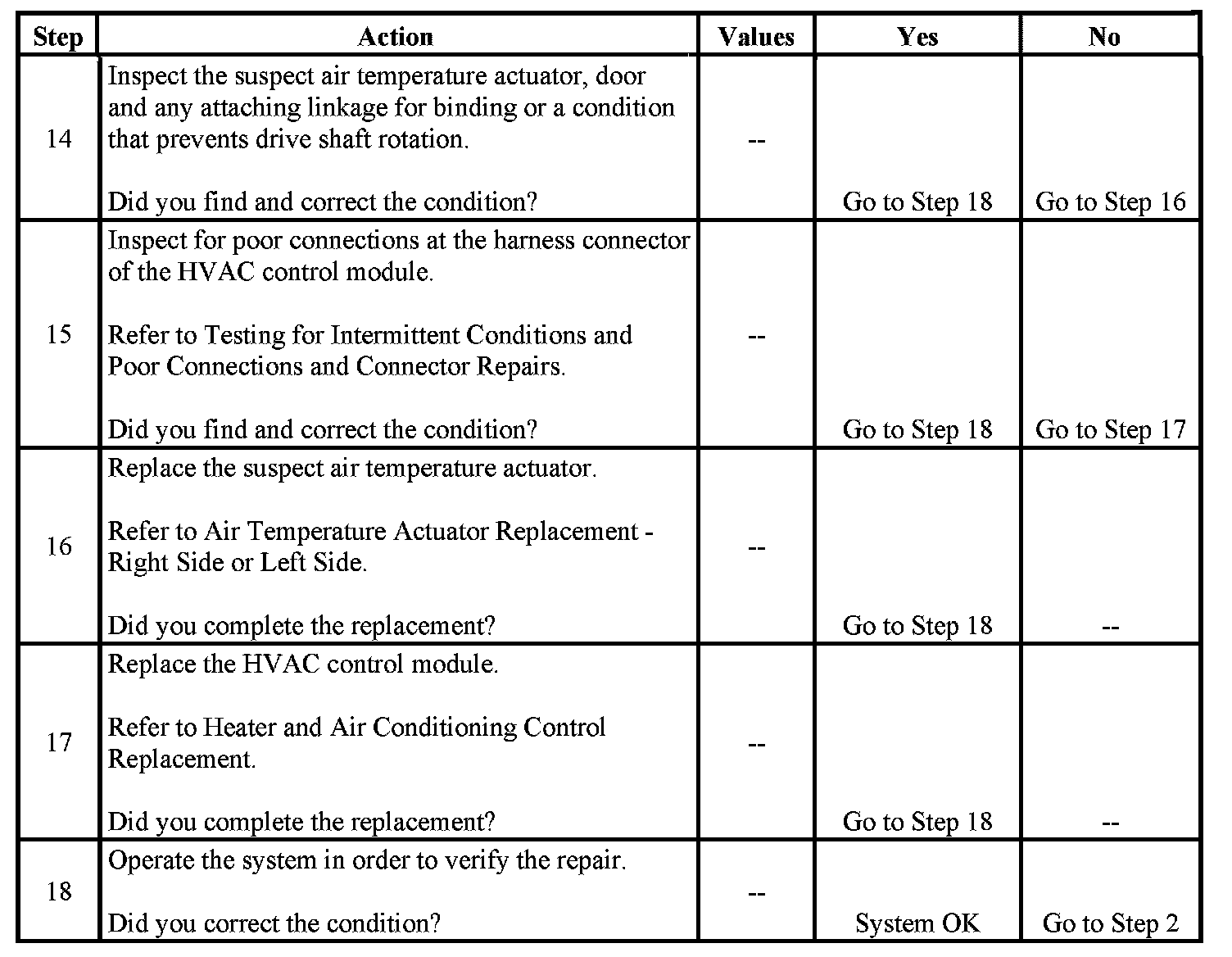

The numbers below refer to the step numbers on the diagnostic table.

7. Vehicles equipped with C60 HVAC systems will only have left air temperature actuator.

12. The voltage will vary between 0-12 volts during normal operation. The HVAC control module connector must be connected during this step.
