Too Hot In Vehicle

TOO HOT IN VEHICLE

� M:

Test Description

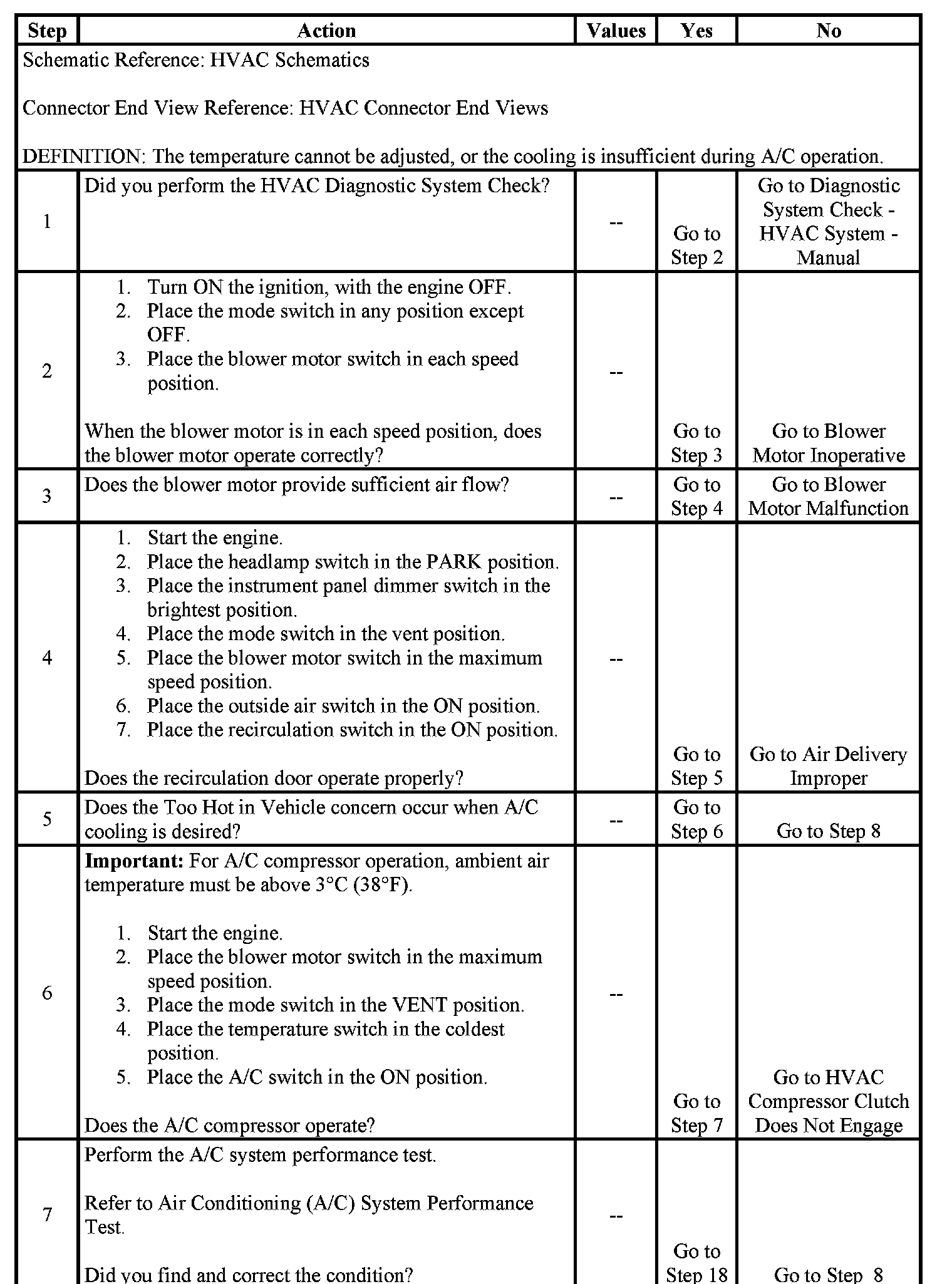

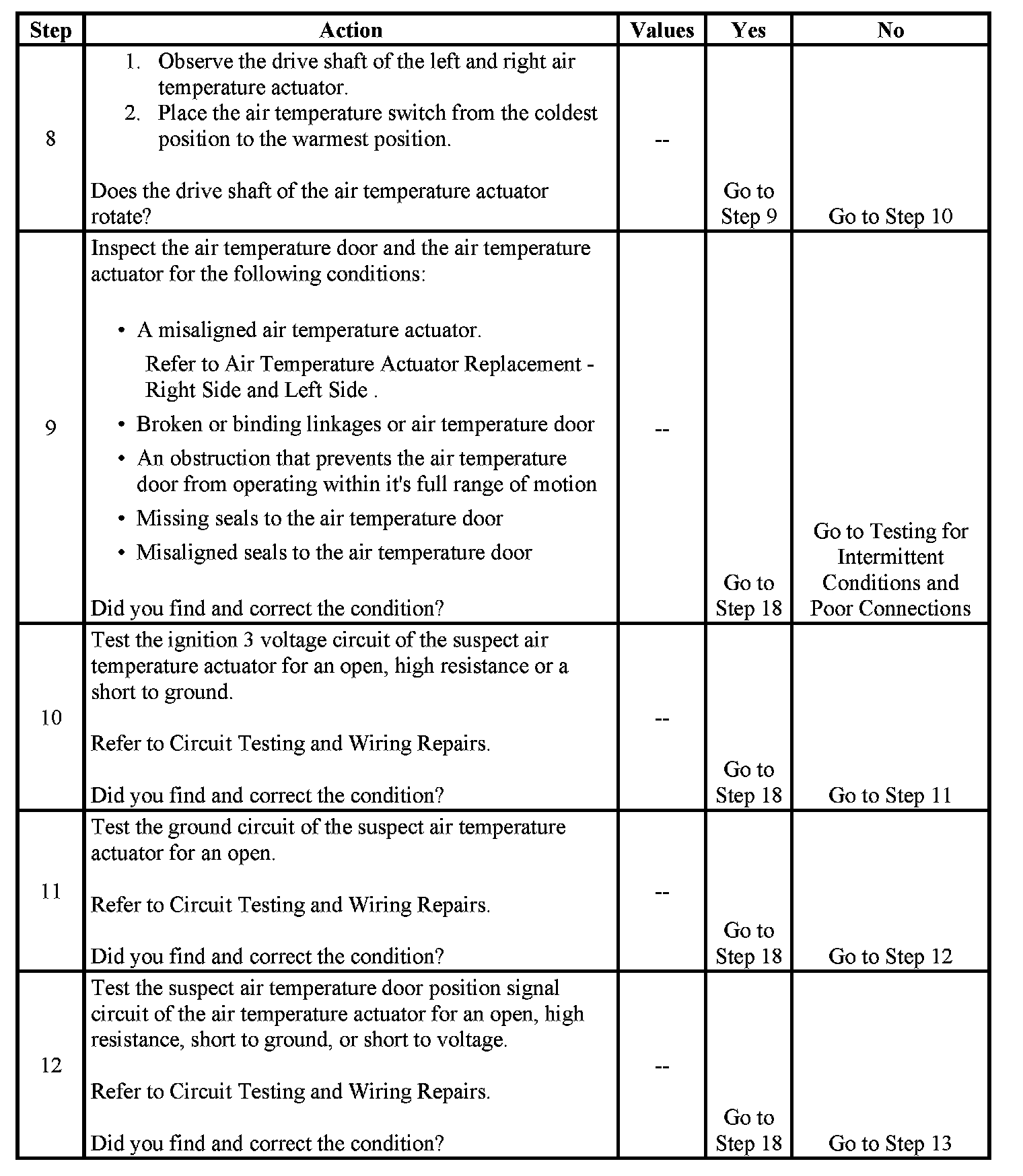

The numbers below refer to the step numbers on the diagnostic table.

7. The specified values are from the A/C System Performance Test.

8. Vehicles equipped with C60 HVAC systems will only have left air temperature actuator.

13. The voltage will vary between 0-12 volts during normal operation. The HVAC control module connector must be connected during this
