Cigar Lighter Housing Replacement - Instrument Panel (I/P)

CIGAR LIGHTER HOUSING REPLACEMENT - INSTRUMENT PANEL (I/P)

TOOLS REQUIRED
J 42059 Cigarette Lighter Socket Remover

REMOVAL PROCEDURE
1. Remove the cigarette lighter fuse.

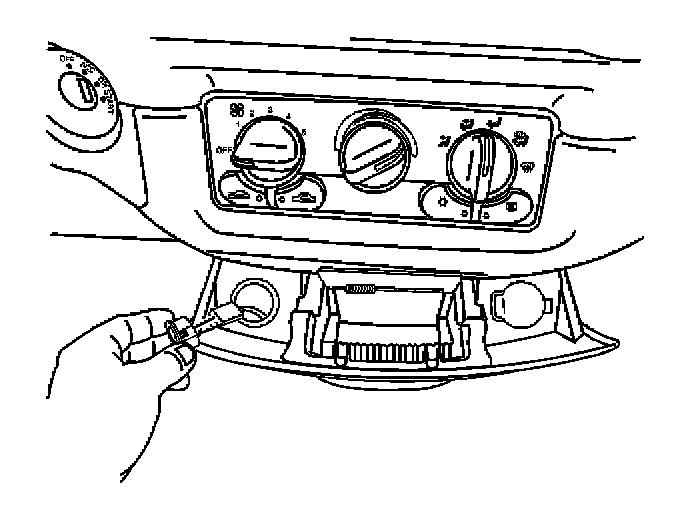

2. Remove the cigarette lighter socket by placing one side of the "T" portion of J 42059 into the tab window. Place the other side angled into the opposite tab window. Pull the power accessory port socket straight out.




3. If the standard method fails to remove the socket, use the following alternate method:

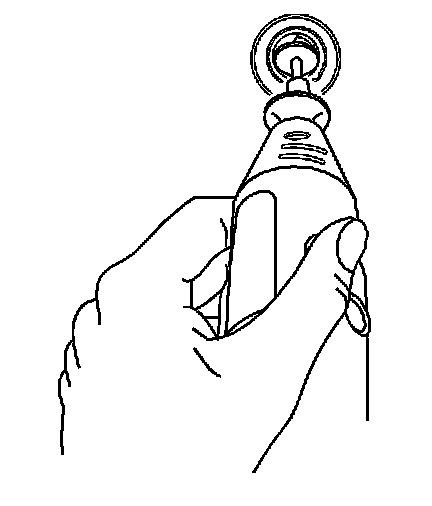

3.1. Insert a small grinding tool with a cutoff wheel into the socket.
3.2. Remove the plastic latches in the 3 mm (0.11 in) square windows.

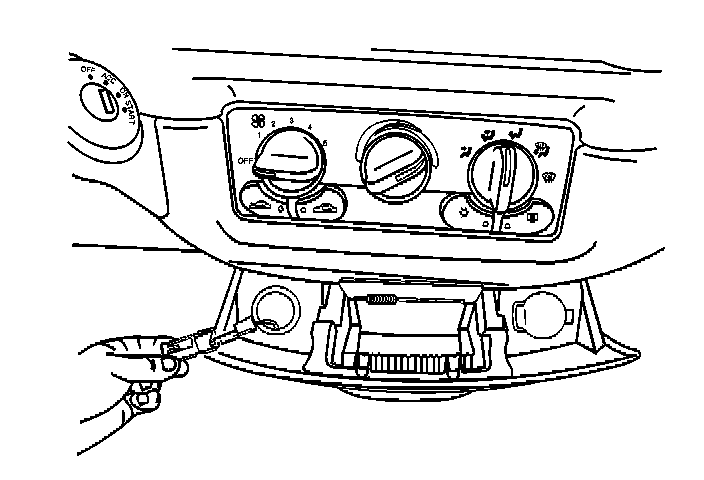

3.3. Use the J 42059 as directed above to remove the socket.

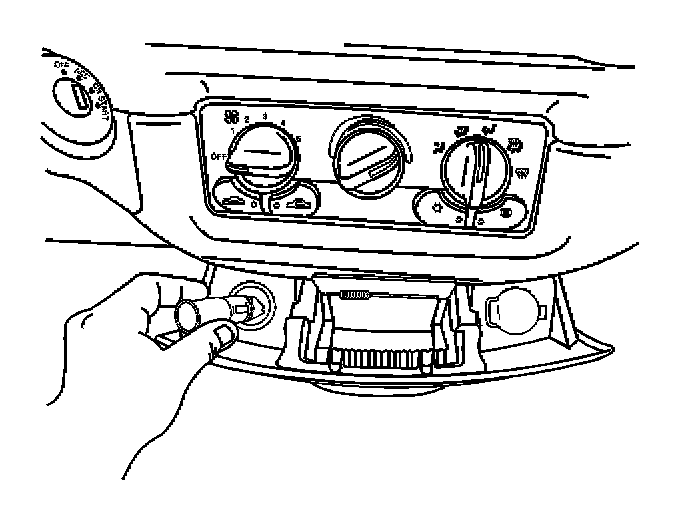

4. Remove the tool from the cigarette lighter socket.




5. Disconnect the electrical connector from the front floor console cigarette lighter.

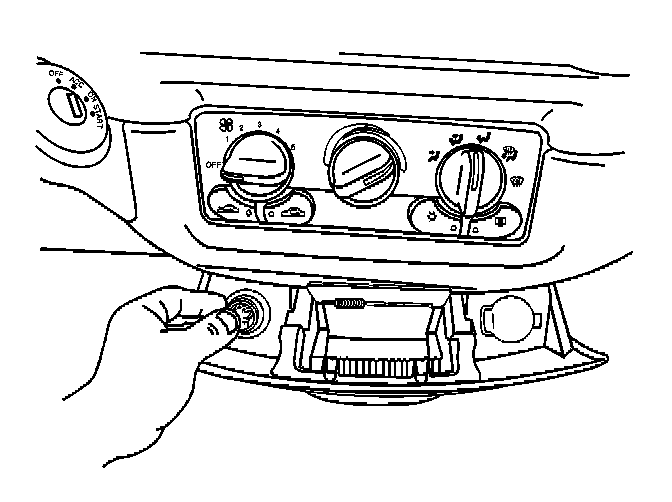

6. Use your index finger in order to pull out the cigarette lighter retainer.

INSTALLATION PROCEDURE




1. Align the cigarette lighter retainer to the slot in the cigarette lighter hole.

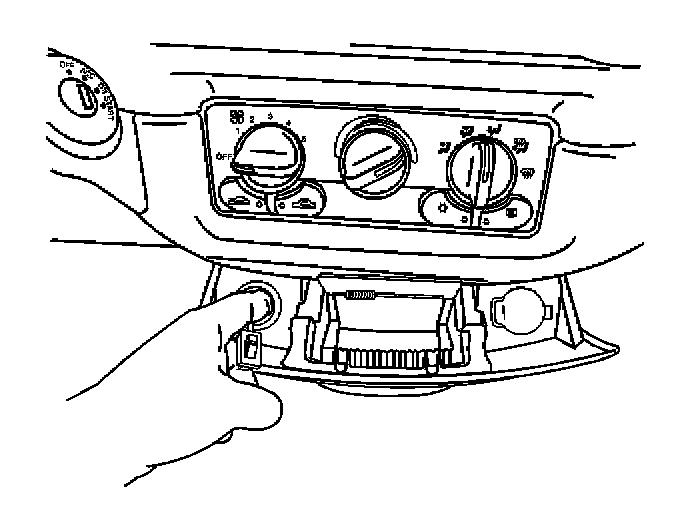

2. Install the cigarette lighter retainer. Press into place until the retainer is fully seated.




3. Connect the electrical connector to the front floor console cigarette lighter.




4. Align the cigarette lighter socket tabs to the retainer.

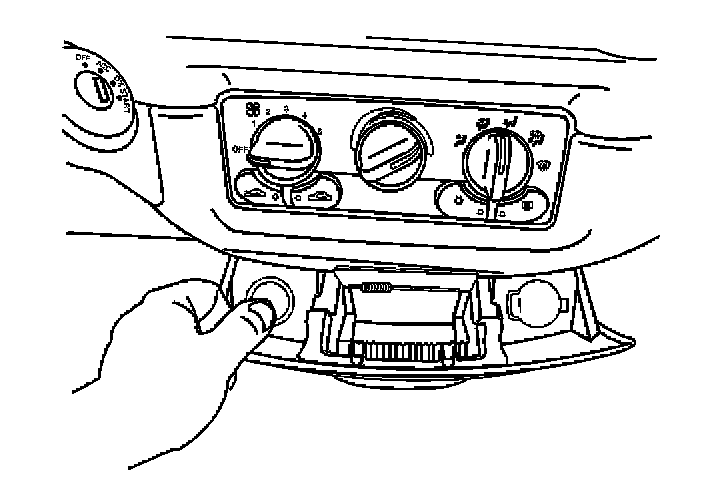

5. Install the cigarette lighter socket into the front floor console. Press the socket into place until fully seated.
6. Install the cigarette lighter fuse.
7. Inspect the cigarette lighter for proper operation.
