Power Accessory Receptacle Replacement

ACCESSORY POWER RECEPTACLE REPLACEMENT - FLOOR CONSOLE

TOOLS REQUIRED
J 42059 Cigarette Lighter Socket Remover

REMOVAL PROCEDURE
1. Remove the power accessory port fuse.

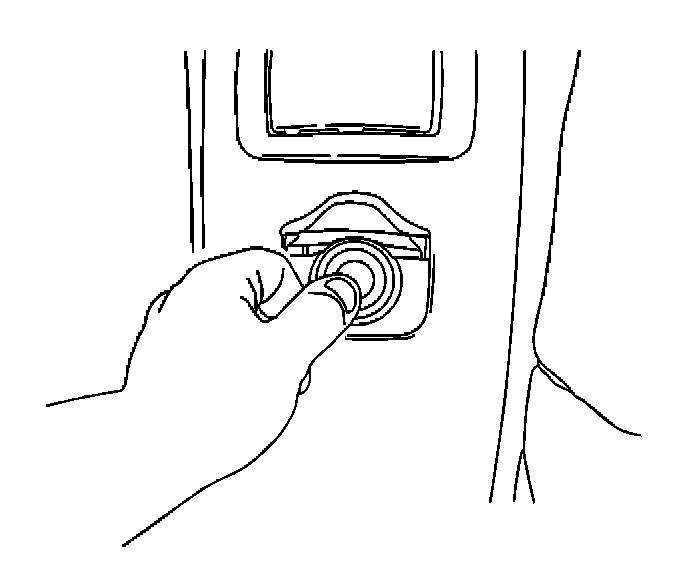

2. Remove the power accessory port socket by placing one side of the "T" portion of J 42059 into the tab window. Angle the other side into the opposite tab window. Pull the power accessory port socket straight out.




3. If the standard method fails to remove the socket, use the following alternate method:
3.1. Insert a small grinding tool with a cutoff wheel into the socket.
3.2. Remove the plastic latches in the 3-mm (0.11-in) square windows.
3.3. Use J 42059 as directed above to remove the socket.
4. Remove J 42059 from the power accessory port socket.

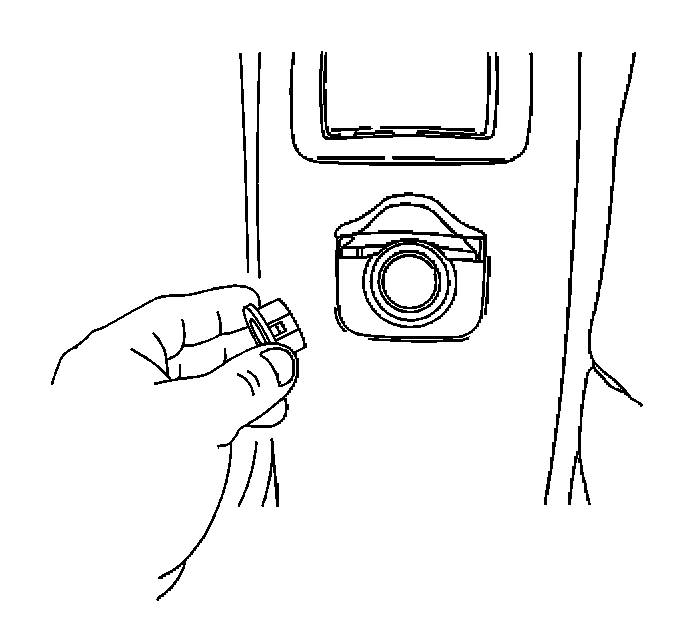

5. Disconnect the electrical connector from the power accessory port.




6. Using your index finger, pull out the power accessory port retainer.

INSTALLATION PROCEDURE




1. Align the power accessory port retainer to the slot in the power accessory port opening.




2. Install the power accessory port retainer by pressing the retainer into place until fully seated.




3. Connect the electrical connector to the power accessory port.




4. Position the tabs on the power accessory port to the retainer.




5. Install the power accessory port into the front floor console, pressing the port into place until fully seated.
6. Install the power accessory port fuse.
7. Inspect the power accessory port for proper operation.
