Home >> Chevrolet >> 2003 >> Monte Carlo V6-3.4L VIN E >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

Fuse Block: Locations

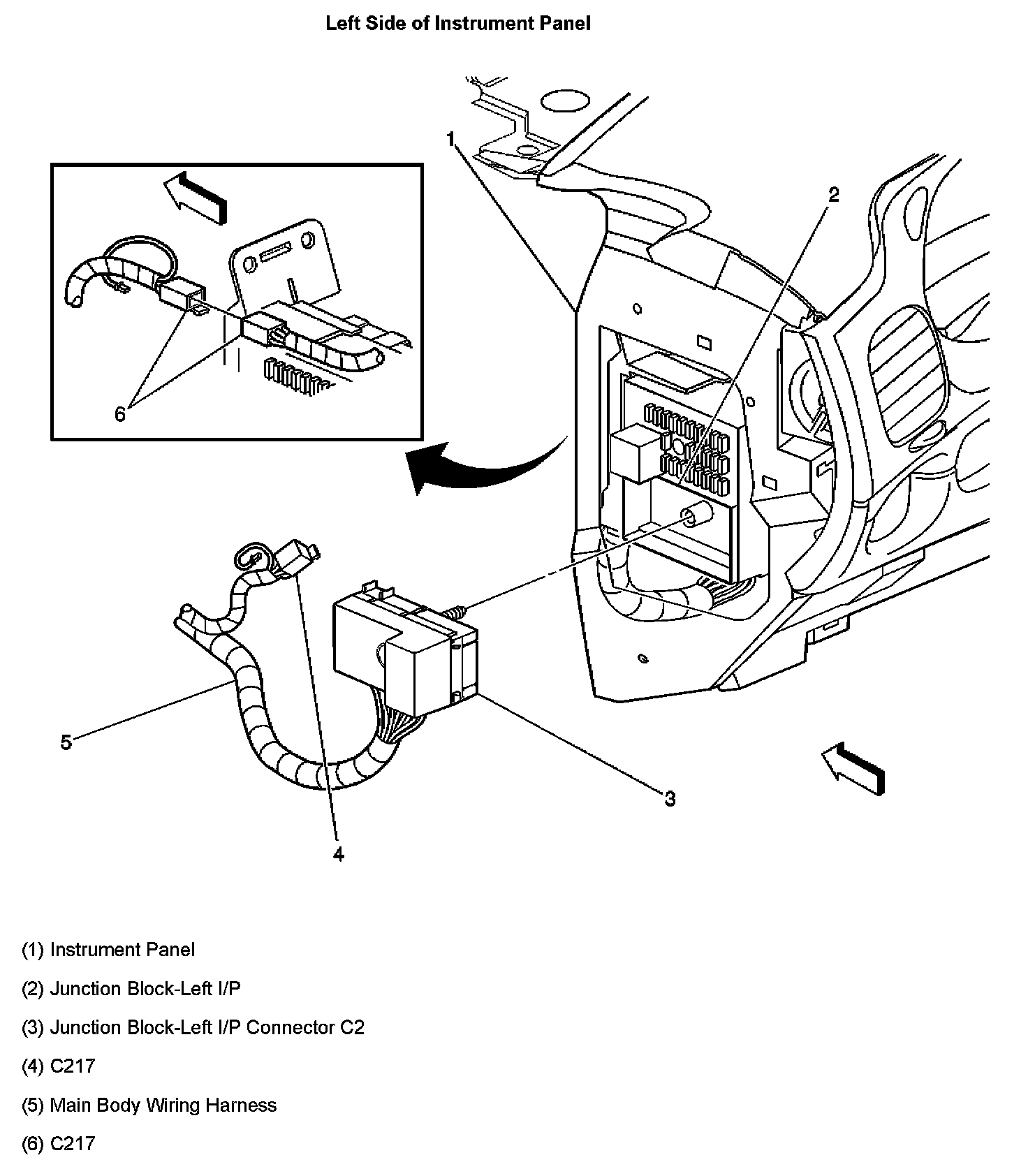

Left Side Of Instrument Panel:



Locations View:
