DTC 007
DTC 007CIRCUIT DESCRIPTION
When the ignition switch is turned to ON, the sensing and diagnostic module (SDM) will perform a turn-on test to diagnose critical malfunctions within the SDM itself.
The test ignition and deployment loop voltages are measured to ensure that they are within their normal voltage ranges. The SDM monitors the voltages at the driver low and the passenger low to detect shorts to ground or voltage in the deploy loops.
The SDM inspects the wiring connection to the passenger air bag module by letting the infinitesimal current flow through the internal circuit and verify the resistance. If the resistance is in the 2 kilo ohms between 10 kilo ohms, the defect may occur depending upon the SDM. The normal resistance is over 10 kilo ohms.
CONDITIONS FOR SETTING THE DTC
- The air bag wiring of passenger's high is shorted to ground.
- The air bag wiring of passenger's low is shorted to ground.

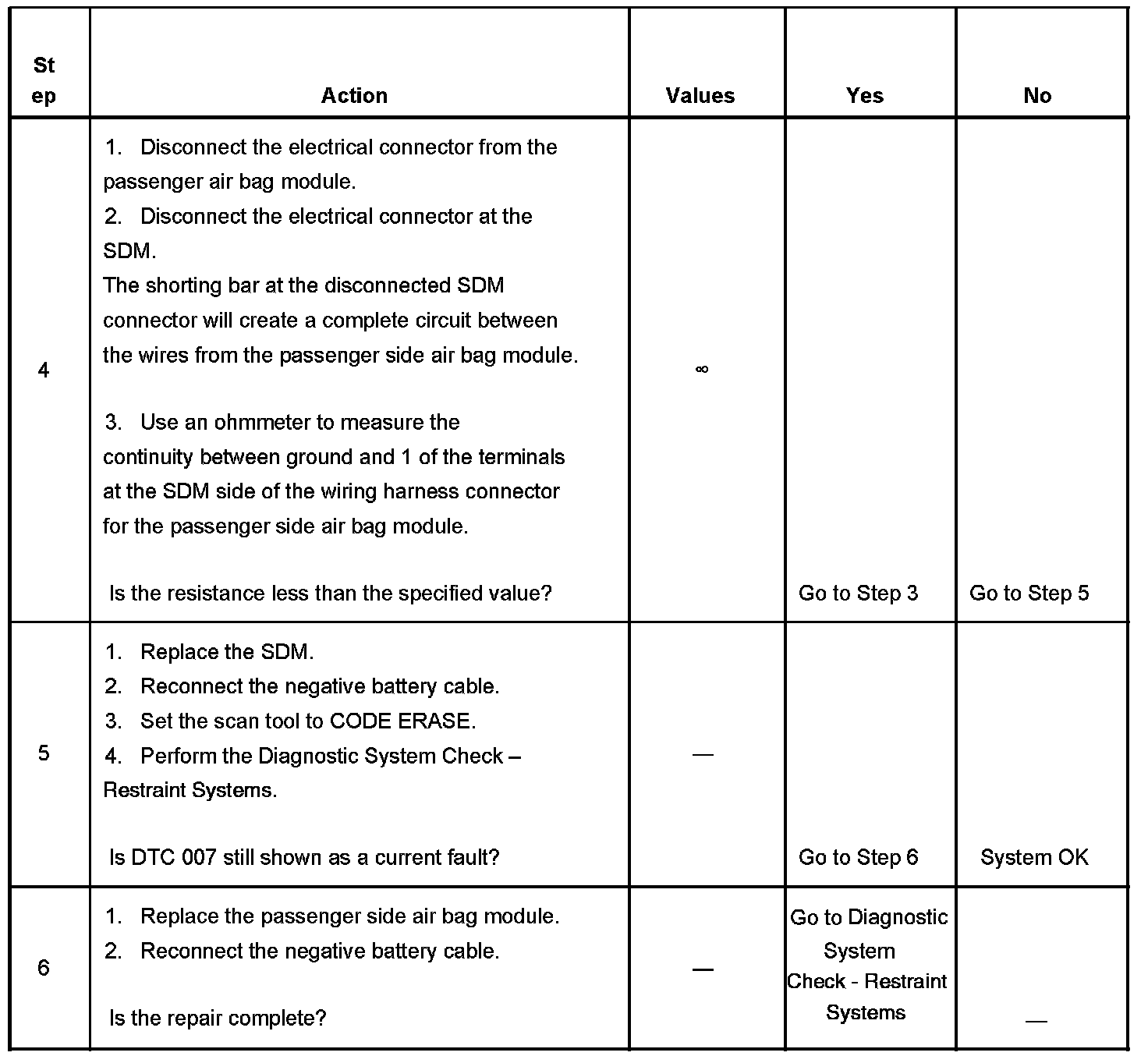

TEST
