DTC 032
DTC 032CIRCUIT DESCRIPTION
When the ignition switch is turned to ON, the sensing and diagnostic module (SDM) will perform a turn-on test to diagnose critical malfunctions within the SDM itself.
In case of air bag inflation by a vehicle collision, the SDM maintains the warning lamp ON and then all the air bag systems including the SDM, air bag module, and wiring should be replaced.
CONDITIONS FOR SETTING THE DTC
The history of air bag inflation or belt pretensioner explosion is in the SDM.

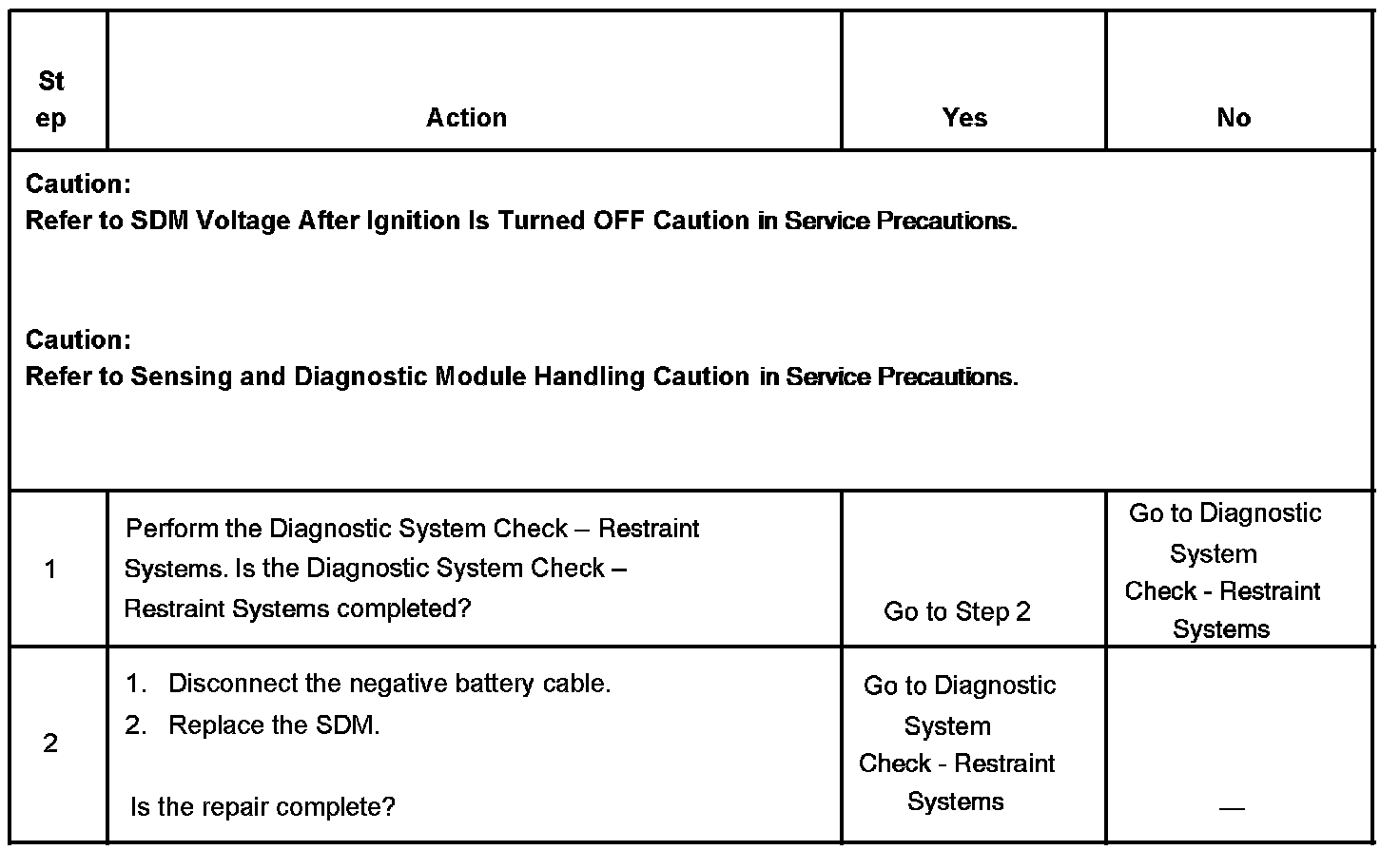

TEST
