DTC 034
DTC 034CIRCUIT DESCRIPTION
When the ignition switch is turned to ON, the sensing and diagnostic module (SDM) will perform a turn-on test to diagnose critical malfunctions within the SDM itself.
In case of passenger side air bag inflation by side impact, the SDM maintains the warning lamp ON. All the air bag systems, including the pretensioners, the side air bag sensor, and the wiring should be replaced. If the passenger side air bag inflation by side impact counts over 5, the SDM should also be replaced.
CONDITIONS FOR SETTING THE DTC
The history of passenger air bag inflation or belt pretensioner explosion is in the SDM.

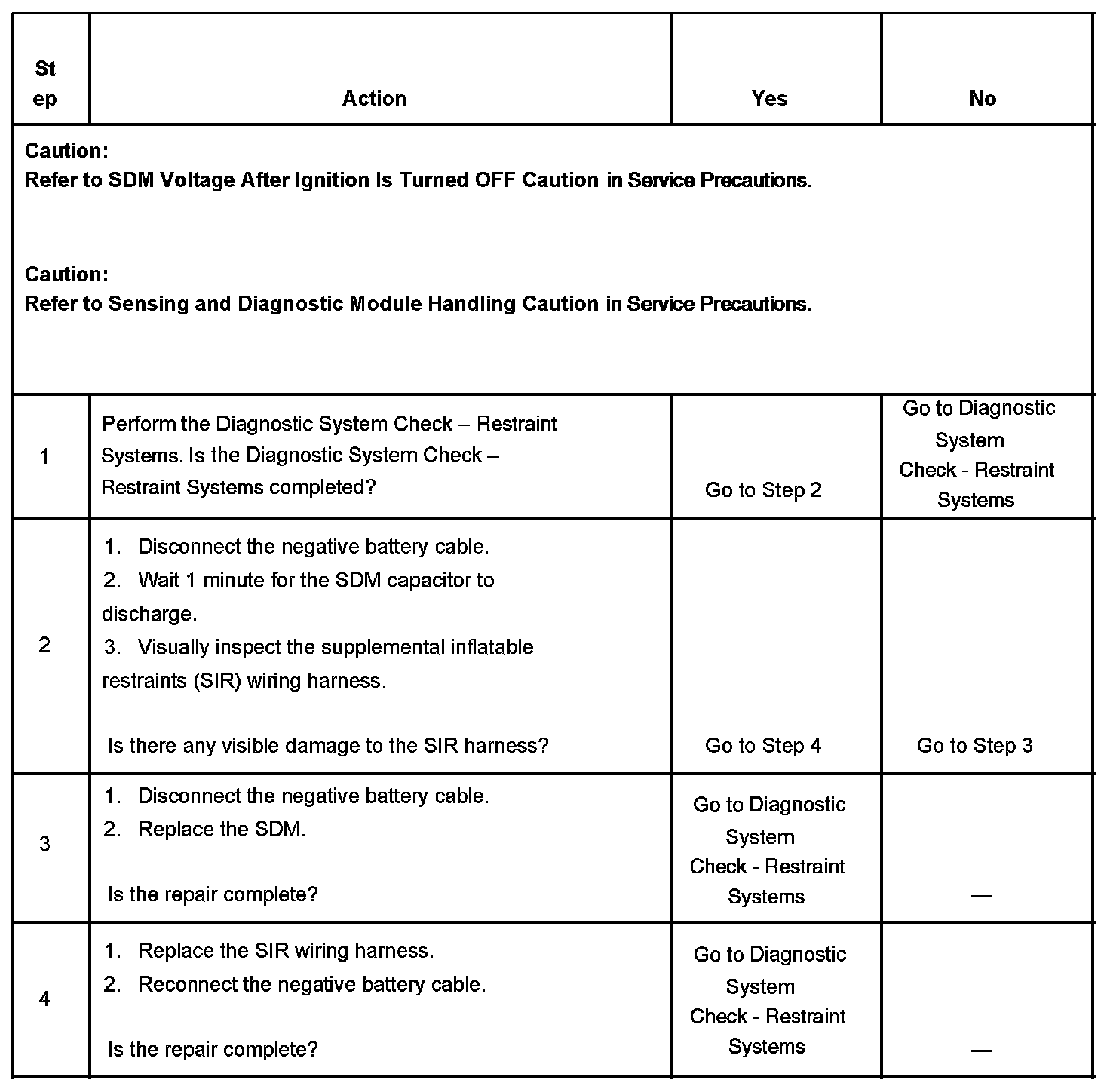

TEST
