P0317

DTC P0317

CIRCUIT DESCRIPTION
The engine control module (ECM) identifies engine misfire by detecting variations in crankshaft speed. Crankshaft speed variations can also occur when a vehicle is operating over a rough road. The ECM receives a rough road signal by a gravity sensing rough road sensor or an electronic brake control module (EBCM), if equipped with the anti-lock brake system (ABS). The ABS can detect if the vehicle is on the rough surface based on wheel acceleration/deceleration data supplied by each wheel speed sensor. This information is sent to the ECM by the EBCM through a serial data line. The rough road sensor is a vertical low G-acceleration sensor. By sensing vertical acceleration caused by rough road conditions, the ECM determines if the changes in crankshaft speed are due to engine misfire or are driveline induced. If the ECM can not receive any of those signals, this DTC sets.

DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC P0317 Rough Road Signal Not Detected

CONDITIONS FOR RUNNING THE DTC
- The engine is running.
- DTC P0317 runs continuously once the above condition is met for more than 10 seconds.

CONDITIONS FOR SETTING THE DTC
The ECM does not detect a rough road signal for more than 9 seconds.

ACTION TAKEN WHEN THE DTC SETS
- The control module stores the DTC information into memory when the diagnostic runs and fails.
- The malfunction indicator lamp (MIL) will not illuminate.
- The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Failure Records.
- The driver information center, if equipped, may display a message.

CONDITIONS FOR CLEARING THE DTC
- A current DTC Last Test Failed clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
- Clear the DTC with a scan tool.

TEST DESCRIPTION

Steps 1-4:

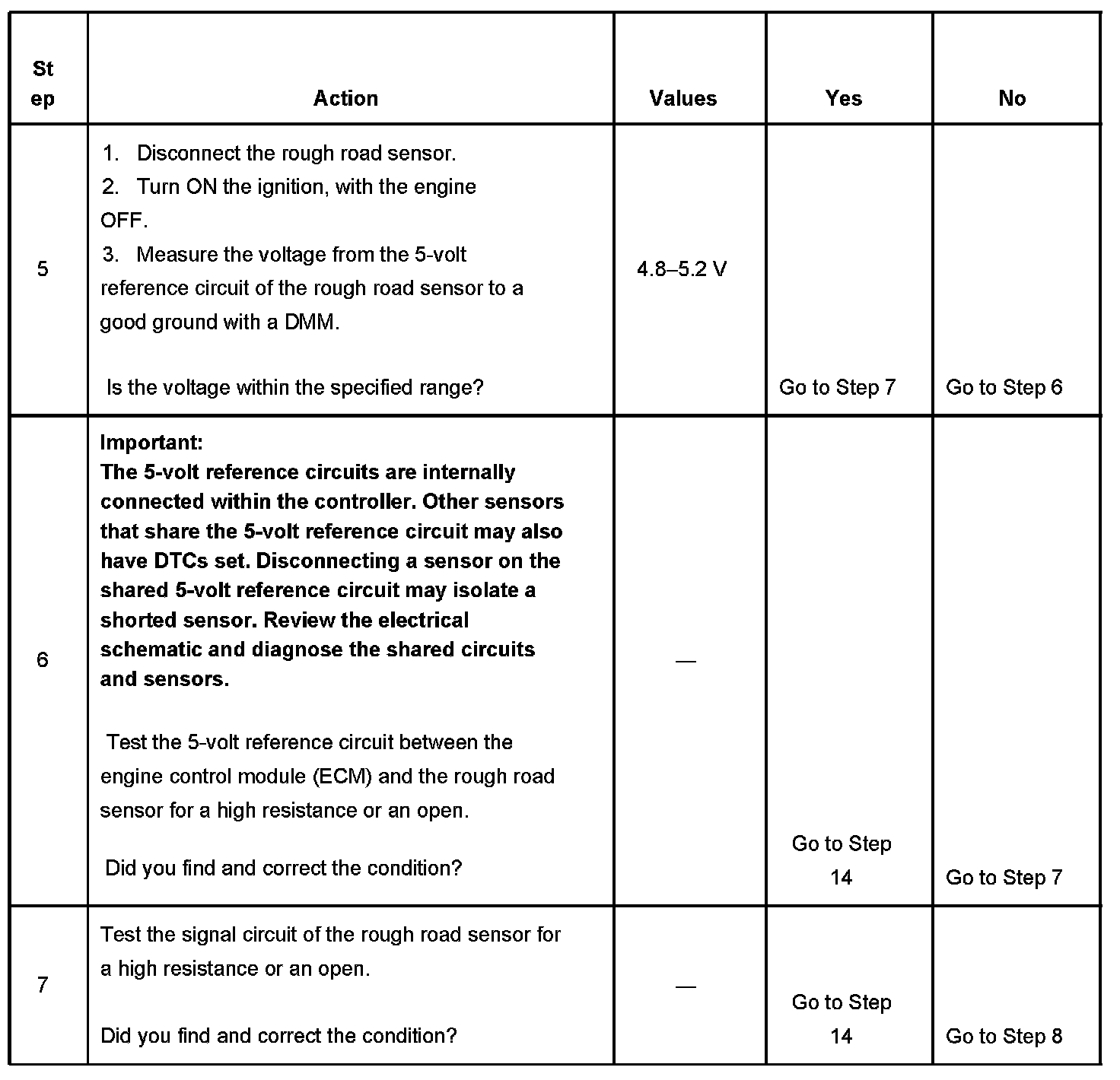

Steps 5-7:

Steps 8-11:

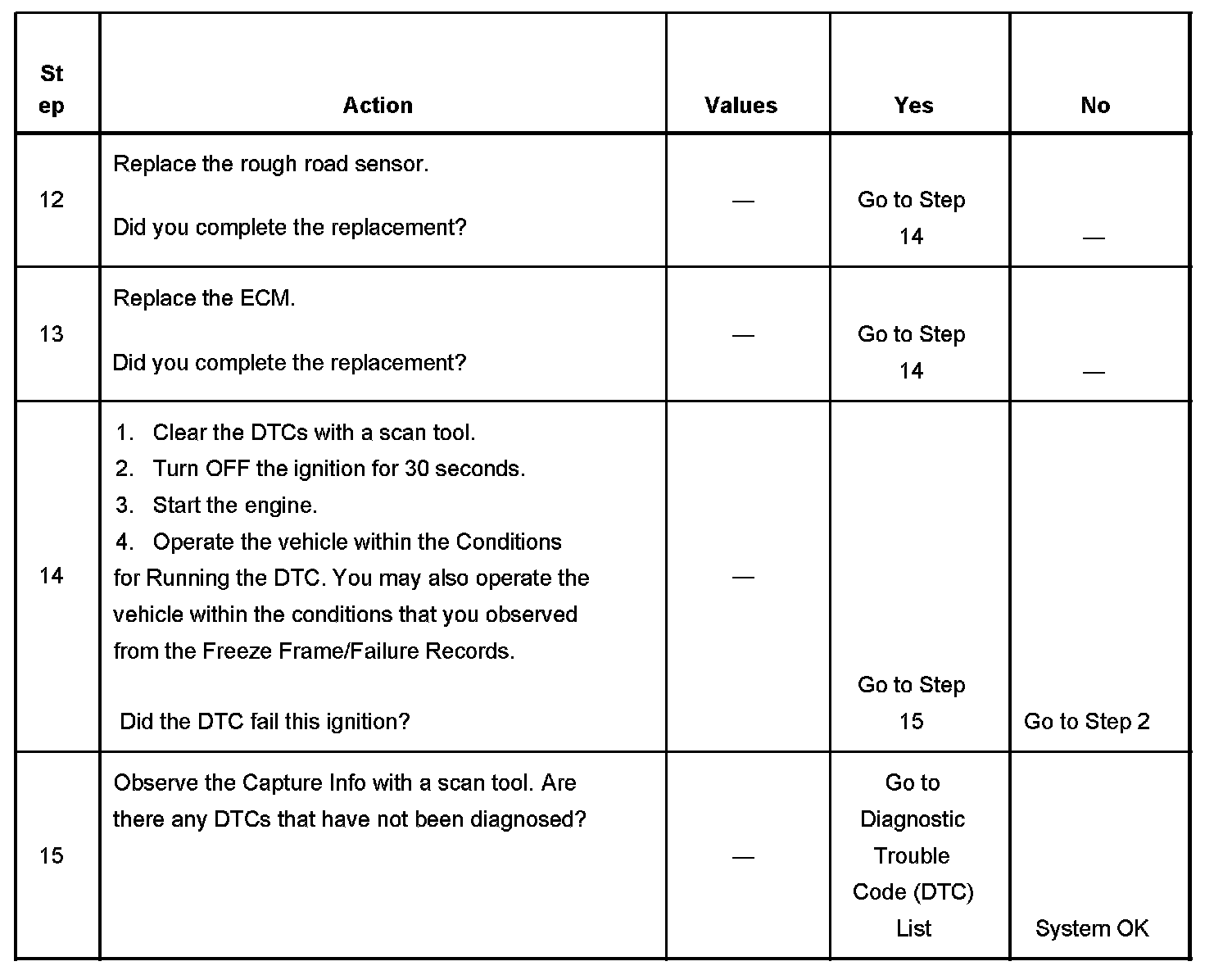

Steps 12-15:

The numbers below refer to the step numbers on the diagnostic table.
11. This step tests for a poor connection at the ECM or the harness connections for backed-out terminals, improper mating, broken locks, improperly formed or damaged terminals, and a poor terminal-to-wire connection.
