P0341
DTC P0341CIRCUIT DESCRIPTION
The camshaft position (CMP) sensor correlates the crankshaft to camshaft position so that the engine control module (ECM) can determine which cylinder is ready to be fueled by an injector. As the camshaft rotates, the reluctor wheel interrupts a magnetic field produced by a magnet within the sensor and sends a signal to the ECM through the signal circuit. The CMP sensor circuits are directly connected to the ECM. The CMP sensor also determines which cylinder is misfiring. The circuits between the CMP sensor and the ECM consists of the following:
- A ground circuit
- A CMP signal circuit
If the ECM detects that a minimum number of CMP re-syncs has not occurred, the ECM fuels the engine by using the alternating synchronous double fire (ASDF) method and DTC P0341 sets.
DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC P0341 Camshaft Position (CMP) Sensor Performance
CONDITIONS FOR RUNNING THE DTC
- The engine is running
- DTC P0341 runs continuously when the above condition is met.
CONDITIONS FOR SETTING THE DTC
The ECM detects an incorrect number of CMP re-syncs has occurred 40 out of 200 tests.
ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.
CONDITIONS FOR CLEARING THE MIL/DTC
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.
TEST

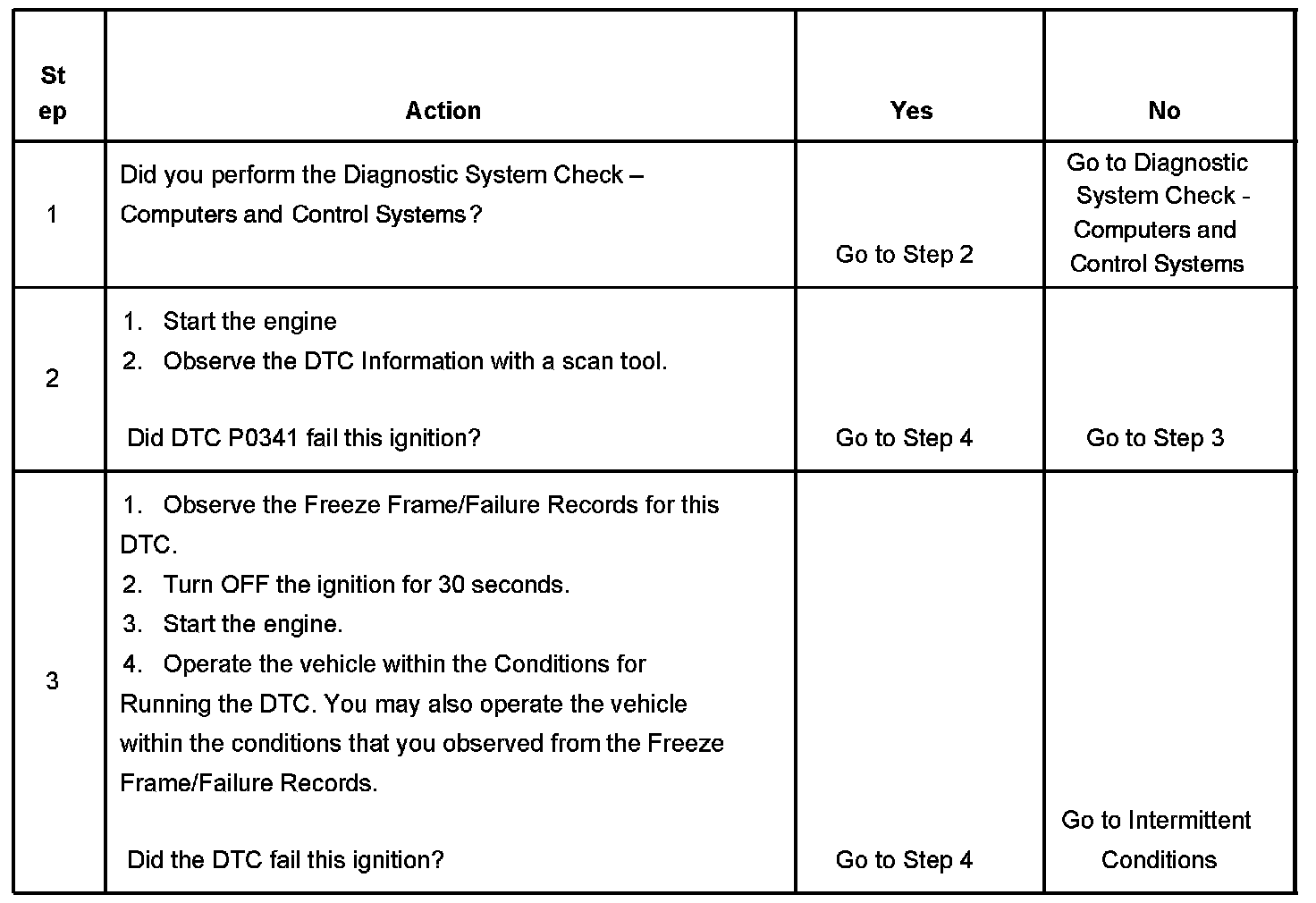

Steps 1-3:

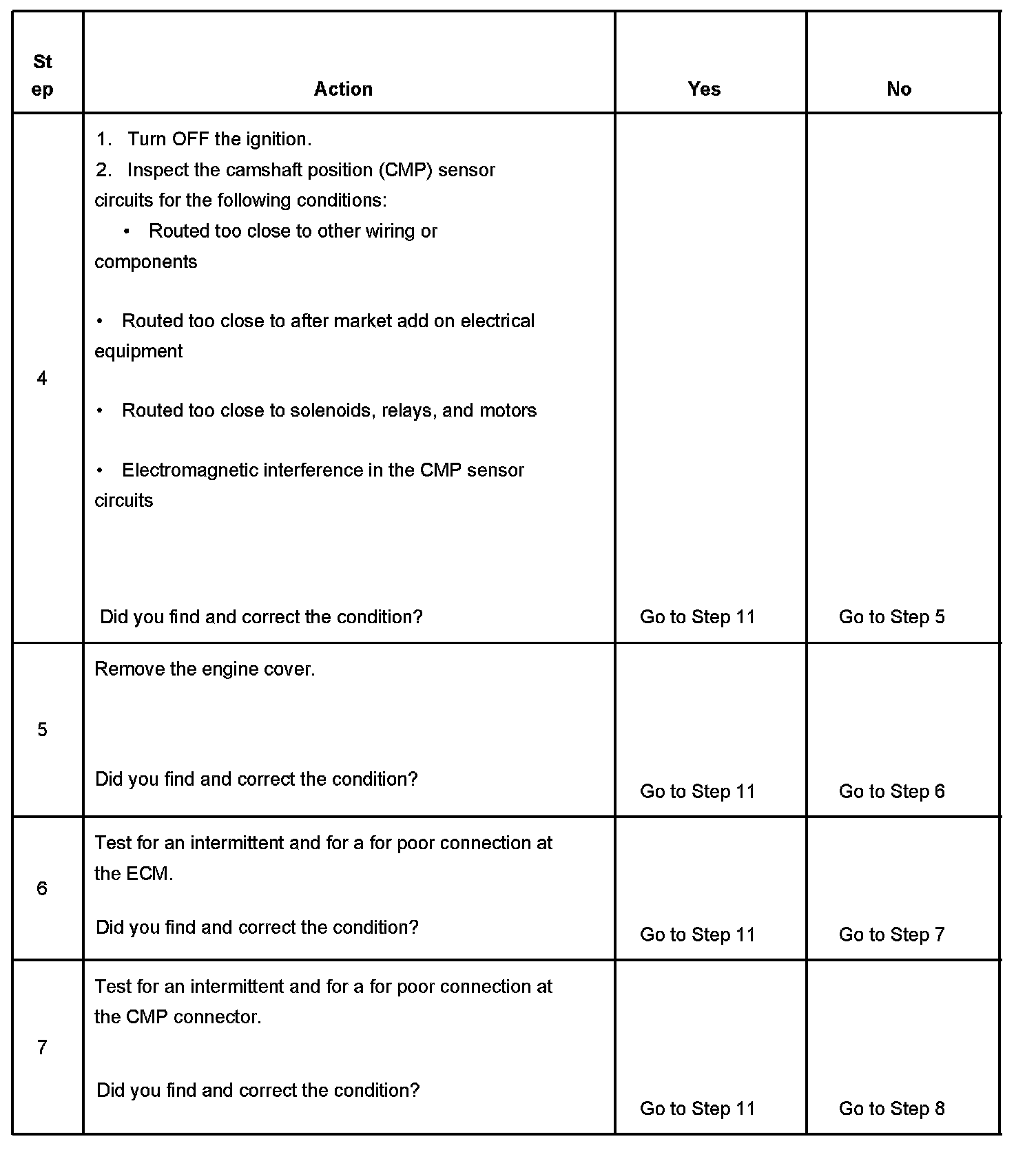

Steps 4-7:

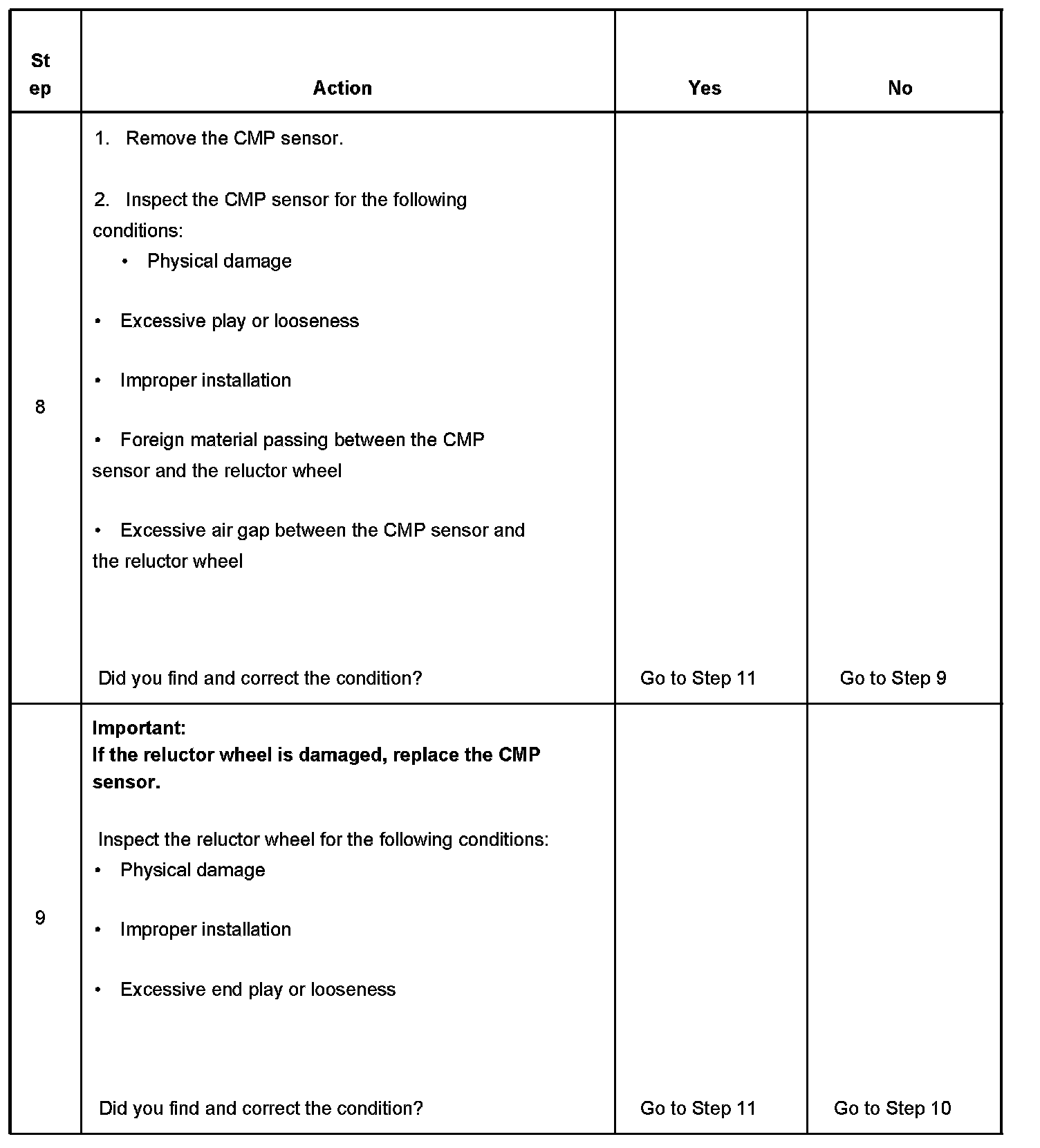

Steps 8-9:
