P0406

DTC P0406

CIRCUIT DESCRIPTION
The engine control module (ECM) monitors the position of the exhaust gas recirculation (EGR) valve through the EGR valve position sensor. The EGR valve position sensor sends a feedback voltage on the signal circuit to the ECM. The EGR position sensor voltage varies depending on the position of the EGR valve. If the voltage on the signal circuit of the EGR valve position sensor is pulled higher than a calibrated value, DTC P0406 sets.

DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC P0406 Exhaust Gas Recirculation (EGR) Position Sensor Circuit High Voltage

CONDITIONS FOR RUNNING THE DTC
- The ignition 1 voltage is between 11.7-16 volts.
- DTC P0406 runs continuously every 125 milliseconds when the above condition is met.

CONDITIONS FOR SETTING THE DTC
The ECM detects the voltage on the signal circuit of the EGR valve position sensor is more than 4.9 volts for more than 10 seconds.

ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) when the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Freeze Frame/Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.

TEST

Steps 1-4:

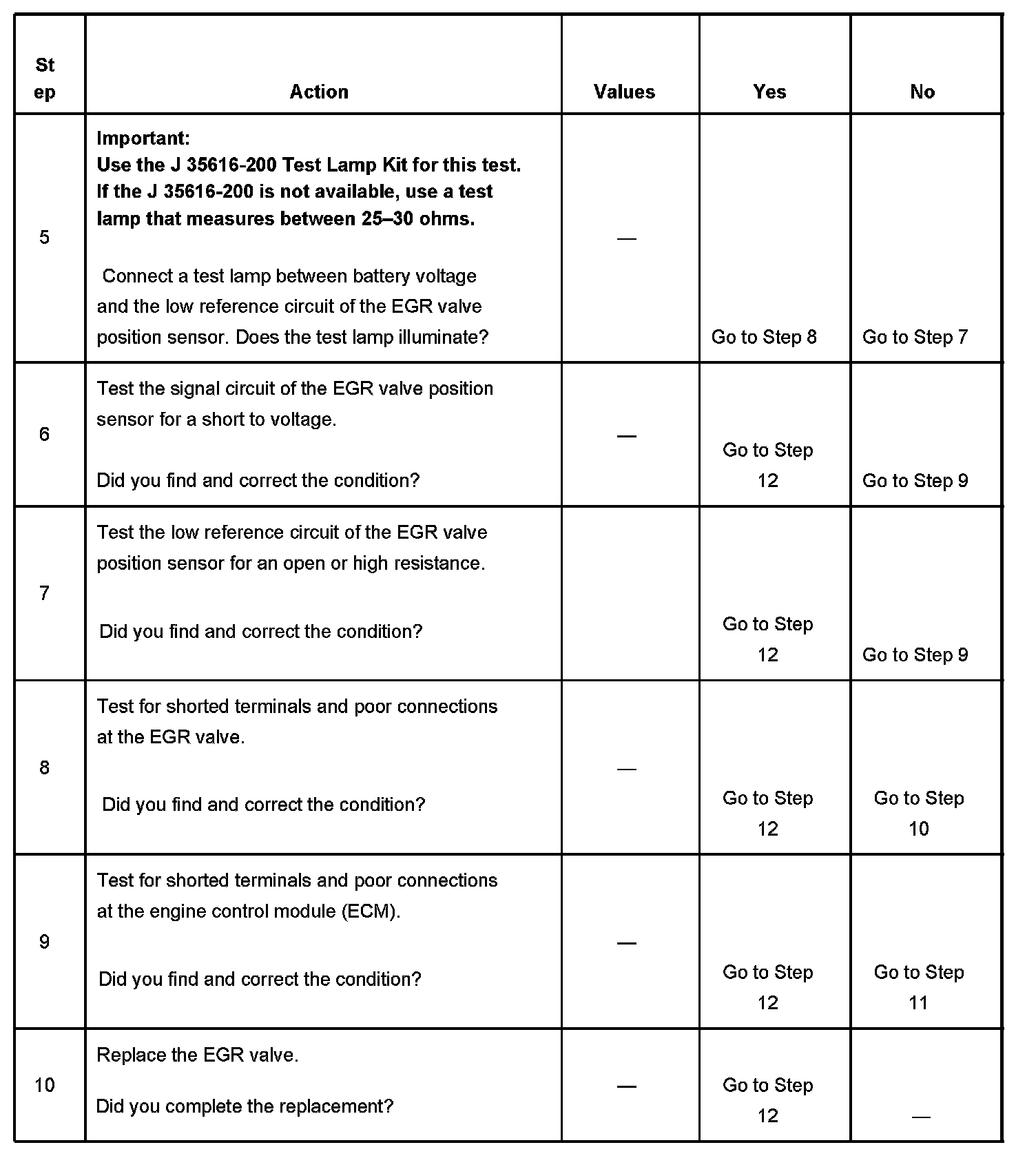

Steps 5-10:

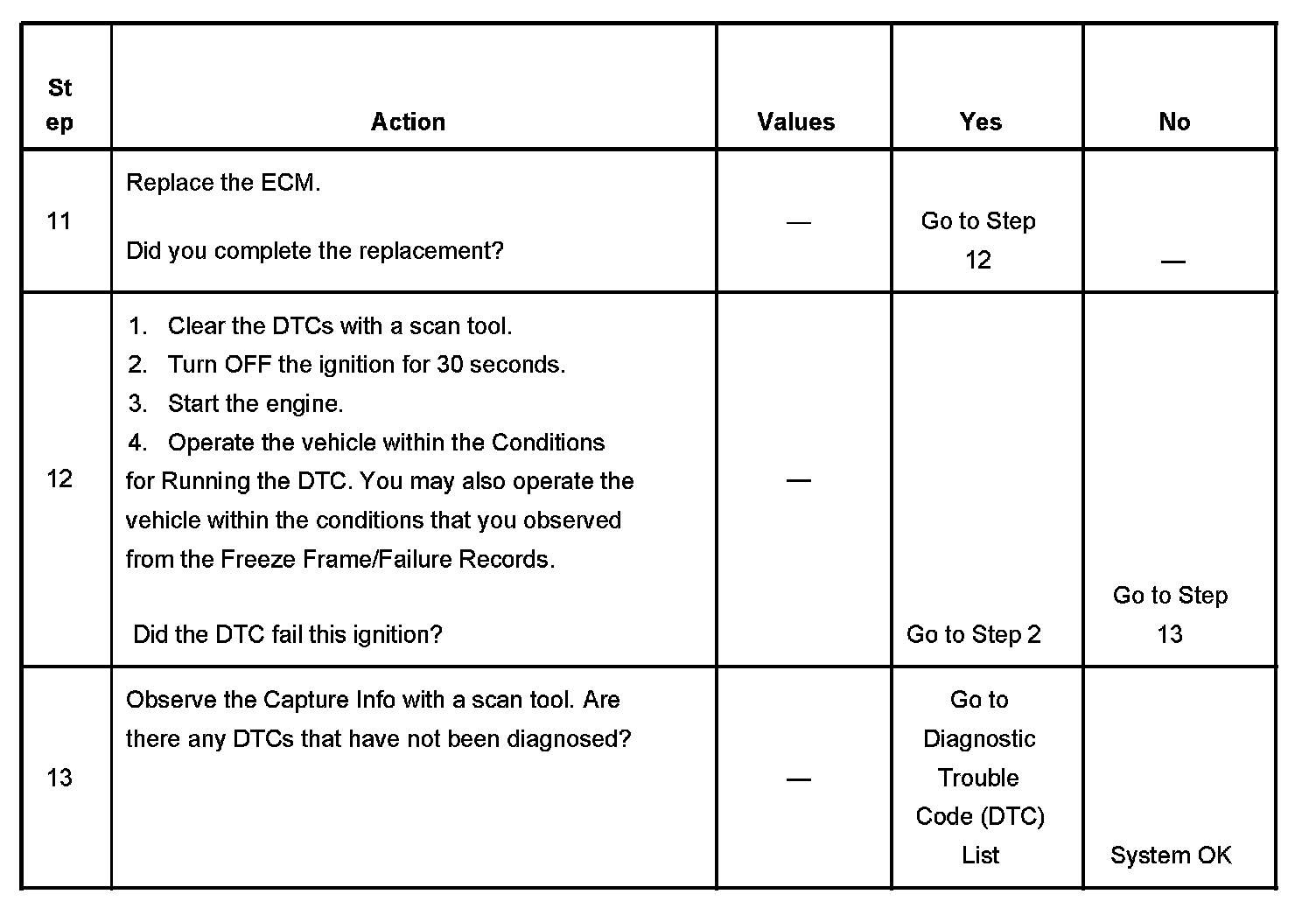

Steps 11-12:
