Transmission

TRANSMISSION ID AND VIN DERIVATIVE LOCATION

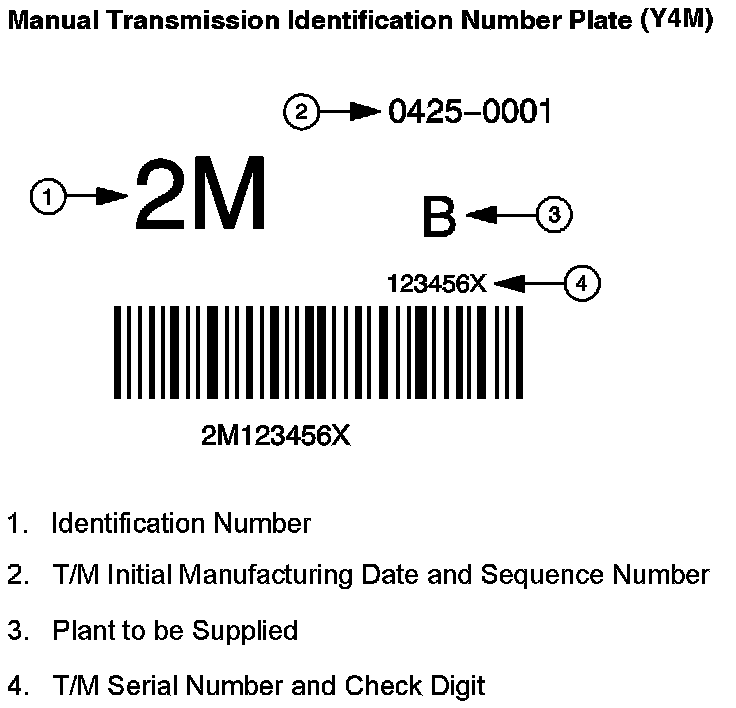

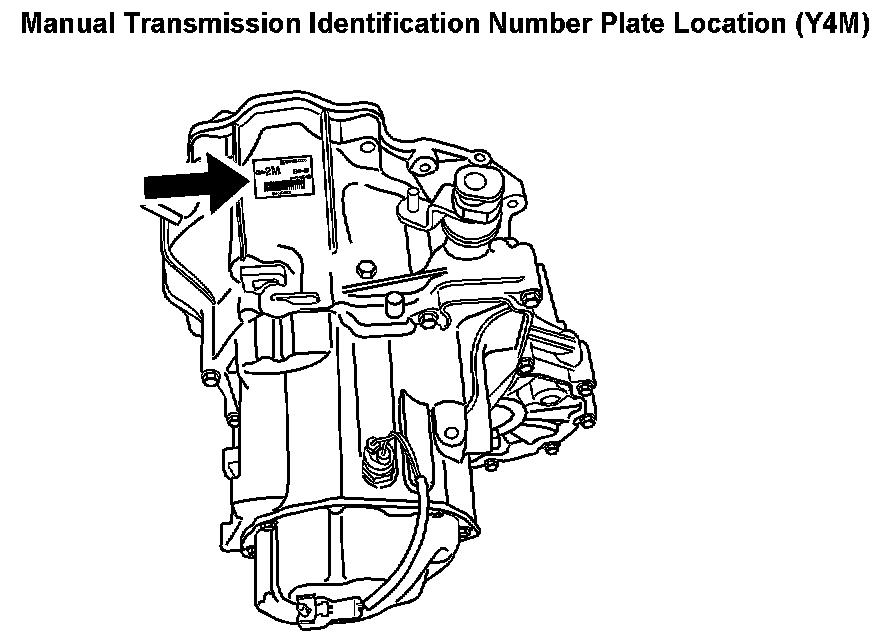

MANUAL TRANSMISSION IDENTIFICATION NUMBER PLATE (Y4M)

Manual Transmission Identification Number Plate (Y4M):

The manual transaxle identification number is attached to the top of the transmission case near the engine.

MANUAL TRANSMISSION IDENTIFICATION NUMBER PLATE (D-16)

Manual Transmission Identification Number Plate (D-16):

The manual transaxle identification number is attached to the top of the transmission case near the engine.

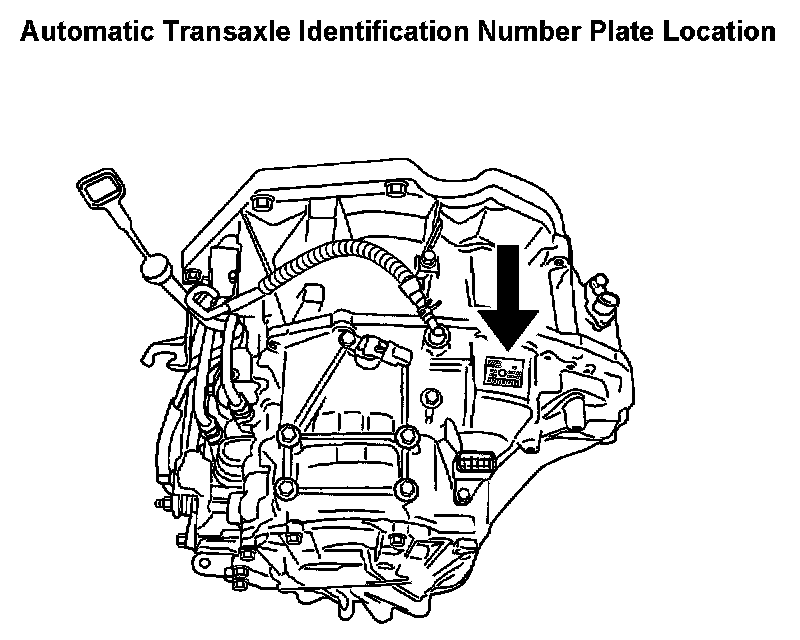

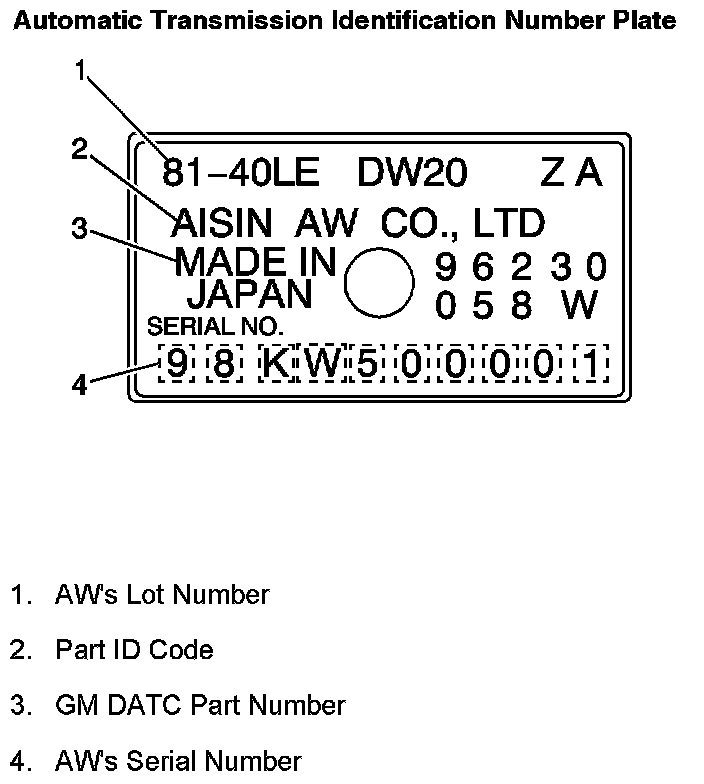

AUTOMATIC TRANSMISSION IDENTIFICATION NUMBER PLATE

Automatic Transmission Identification Number Plate:

The automatic transaxle identification number plate is attached on the upper side of the transaxle case.
