Home
>>
Chevrolet
>>
2004
>>
Aveo L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
Speaker

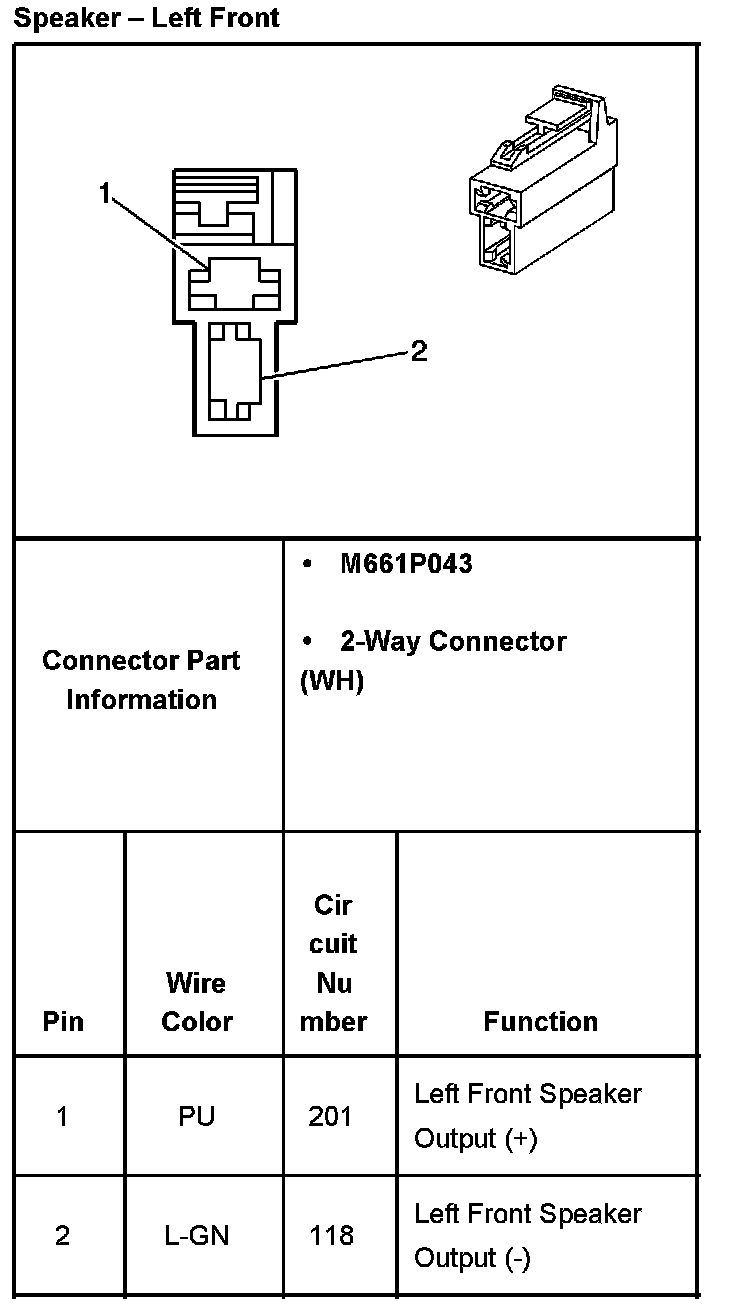

Speaker - Left Front:

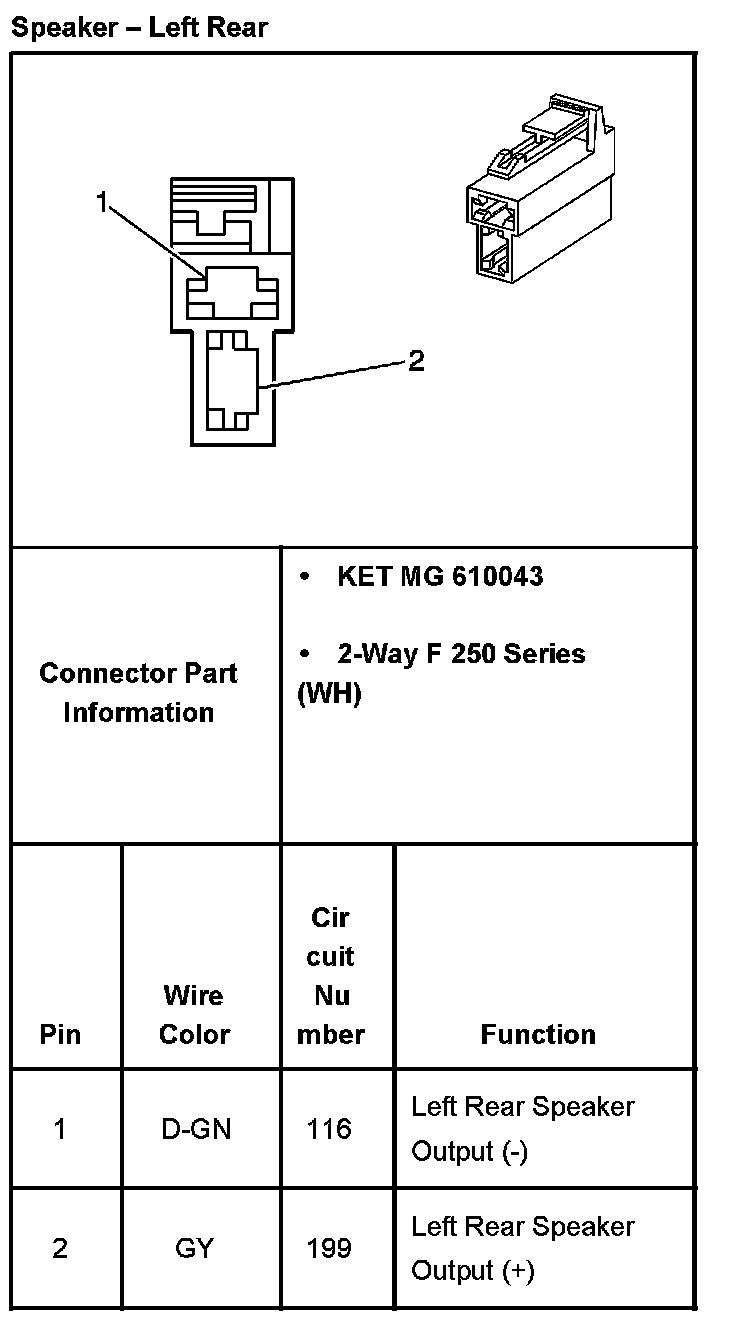

Speaker - Left Rear:
Speaker - Right Front:
Speaker - Right Rear:

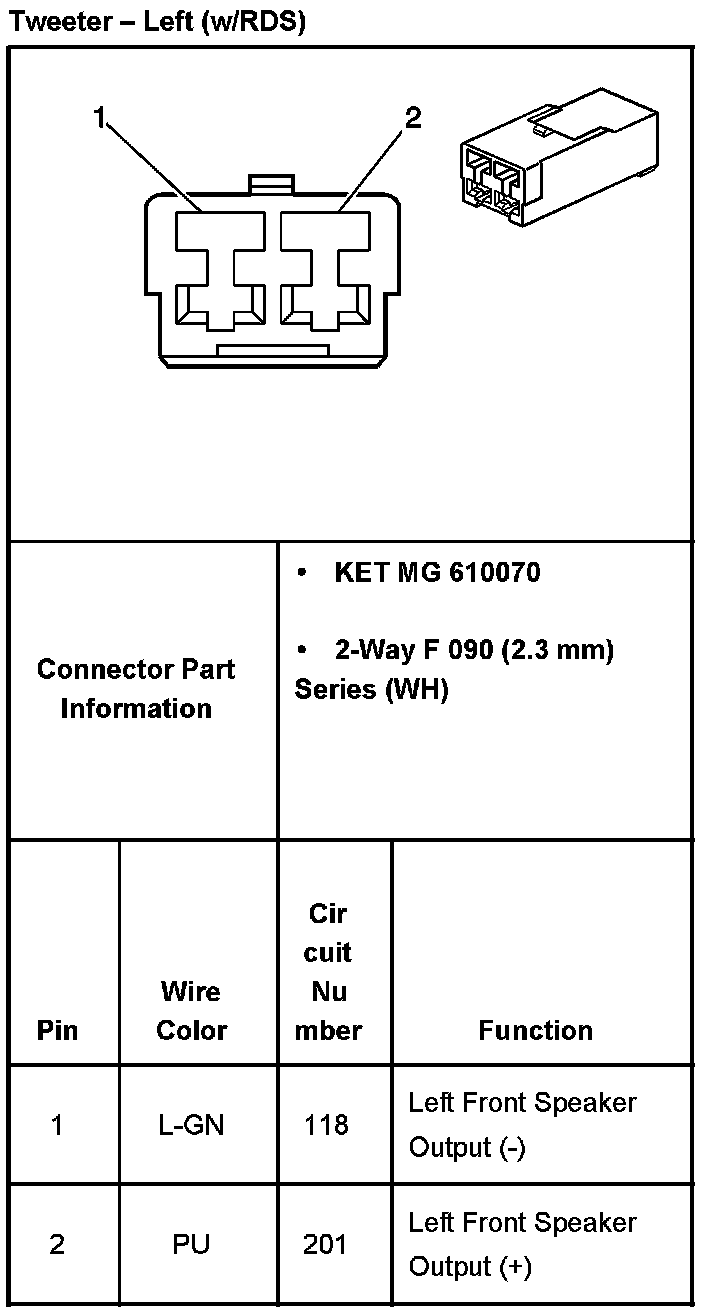

Tweeter - Left (W/RDS):

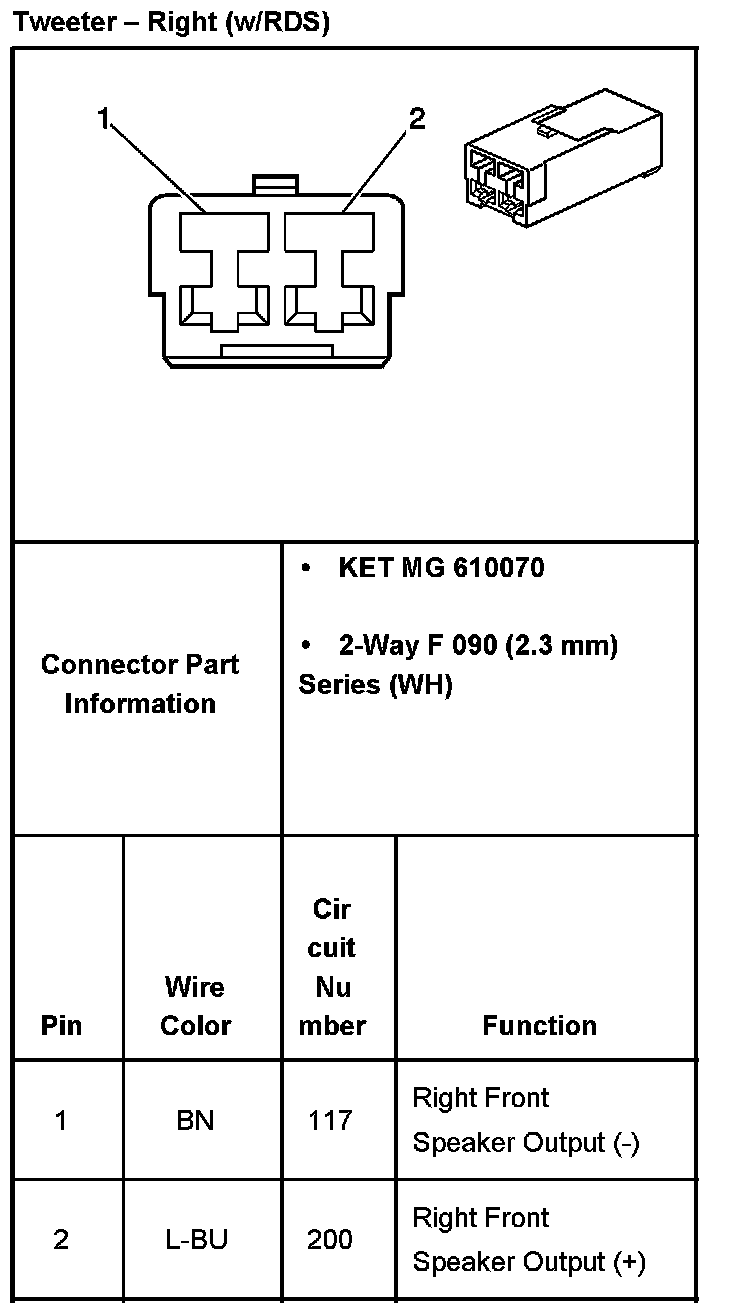

Tweeter - Right (W/RDS):
