Windshield Washer Pump
Windshield Washer Pump

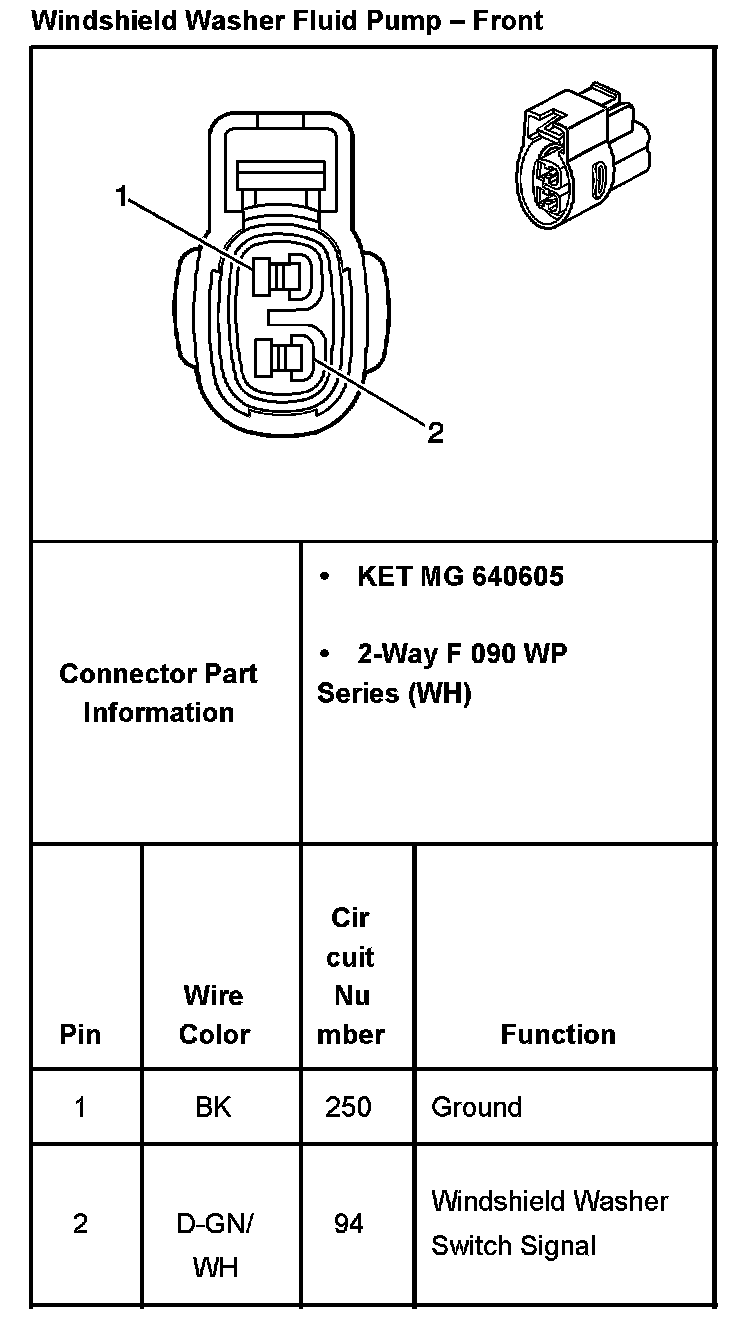

Windshield Washer Fluid Pump - Front:

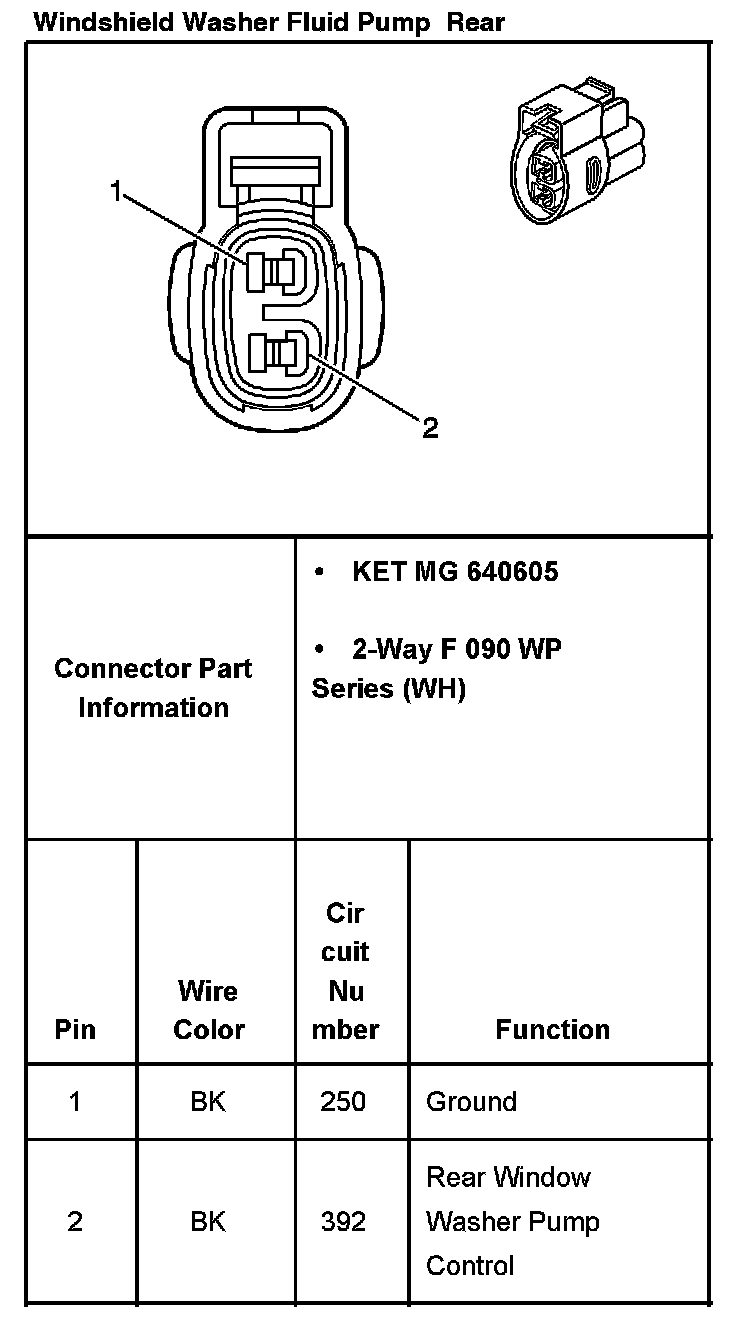

Windshield Washer Fluid Pump - Rear:
