Engine Cooling Schematics

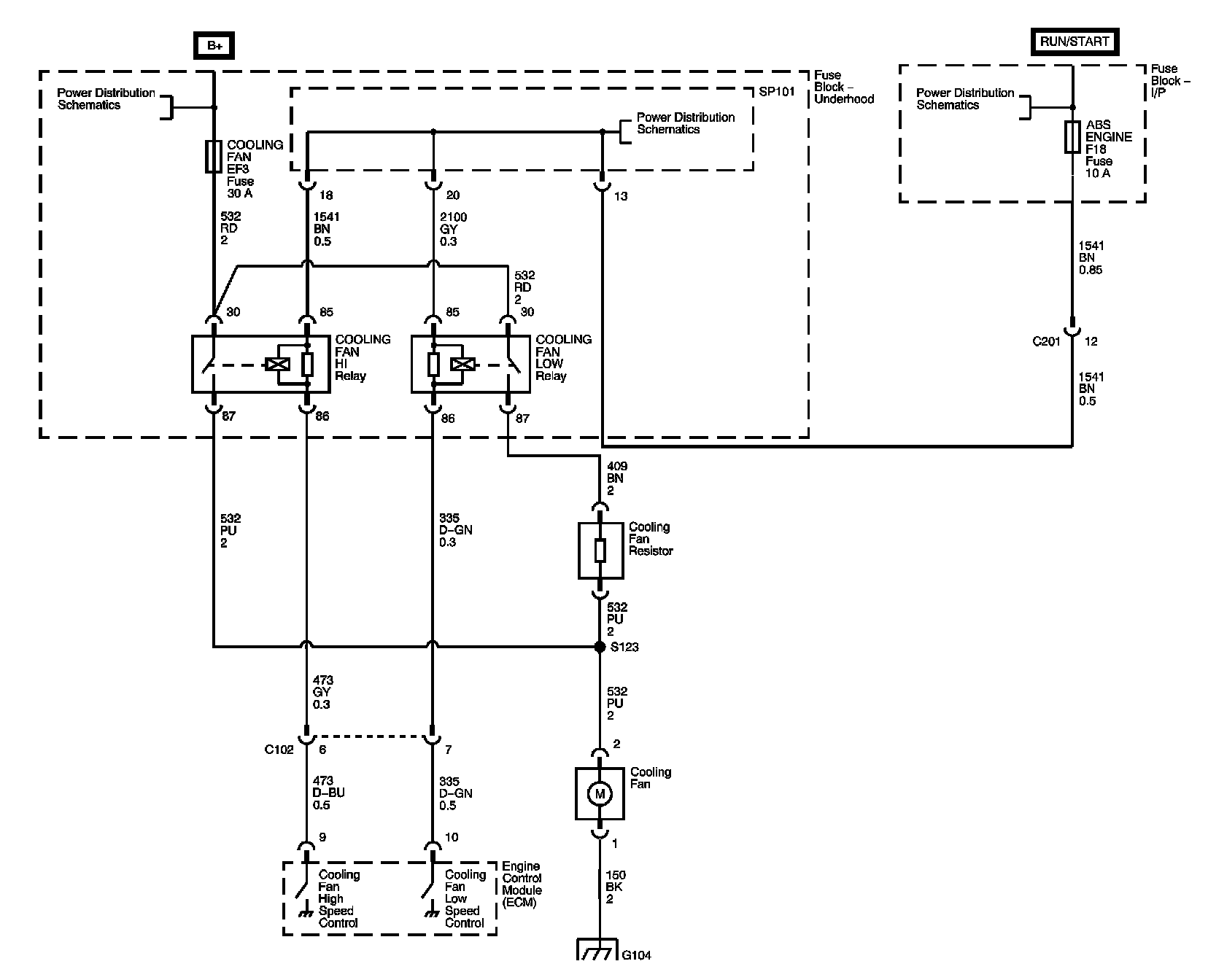

Single Cooling Fan - 1.2L

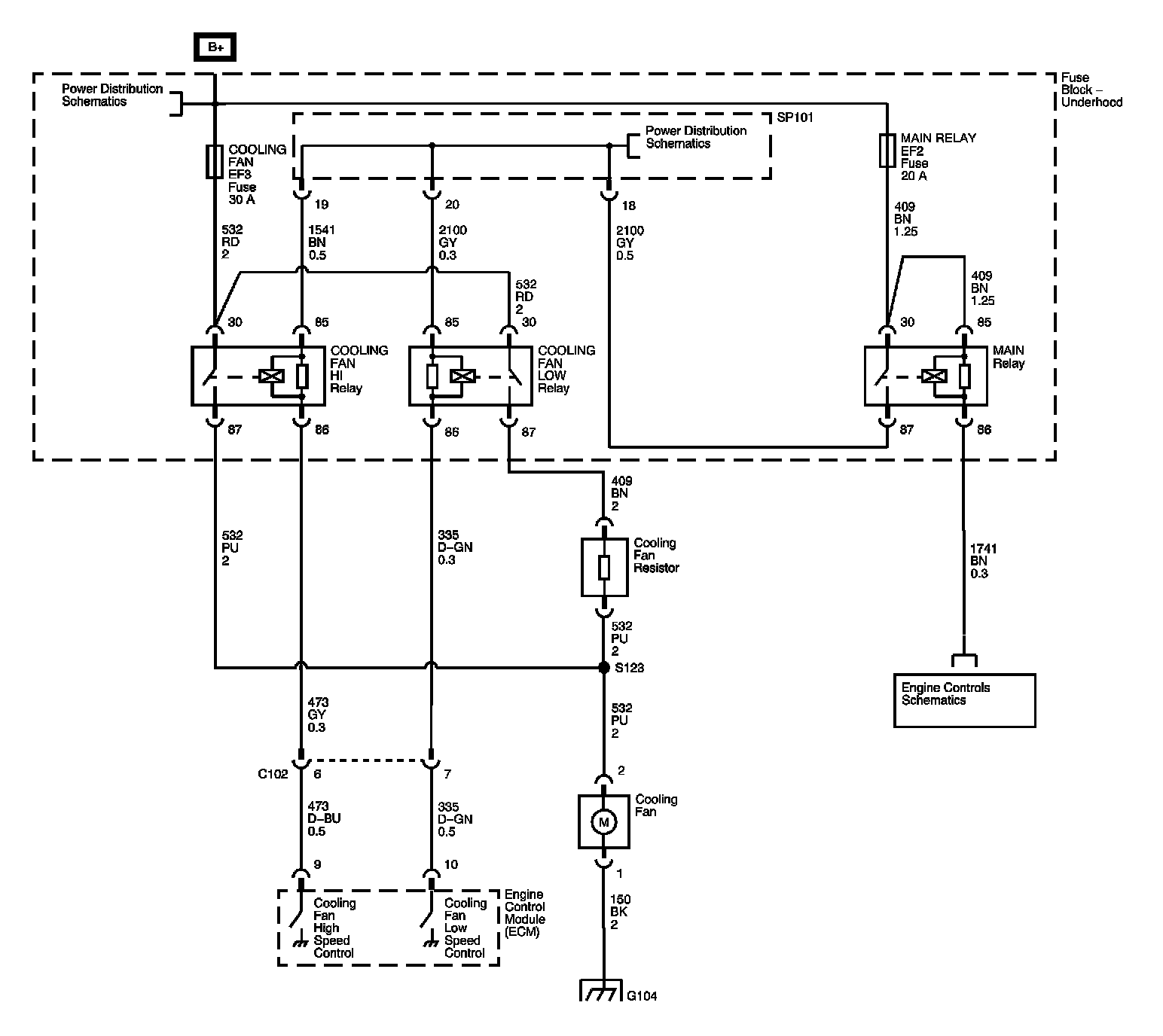

Single Cooling Fan - 1.4L SOHC, 1.5L

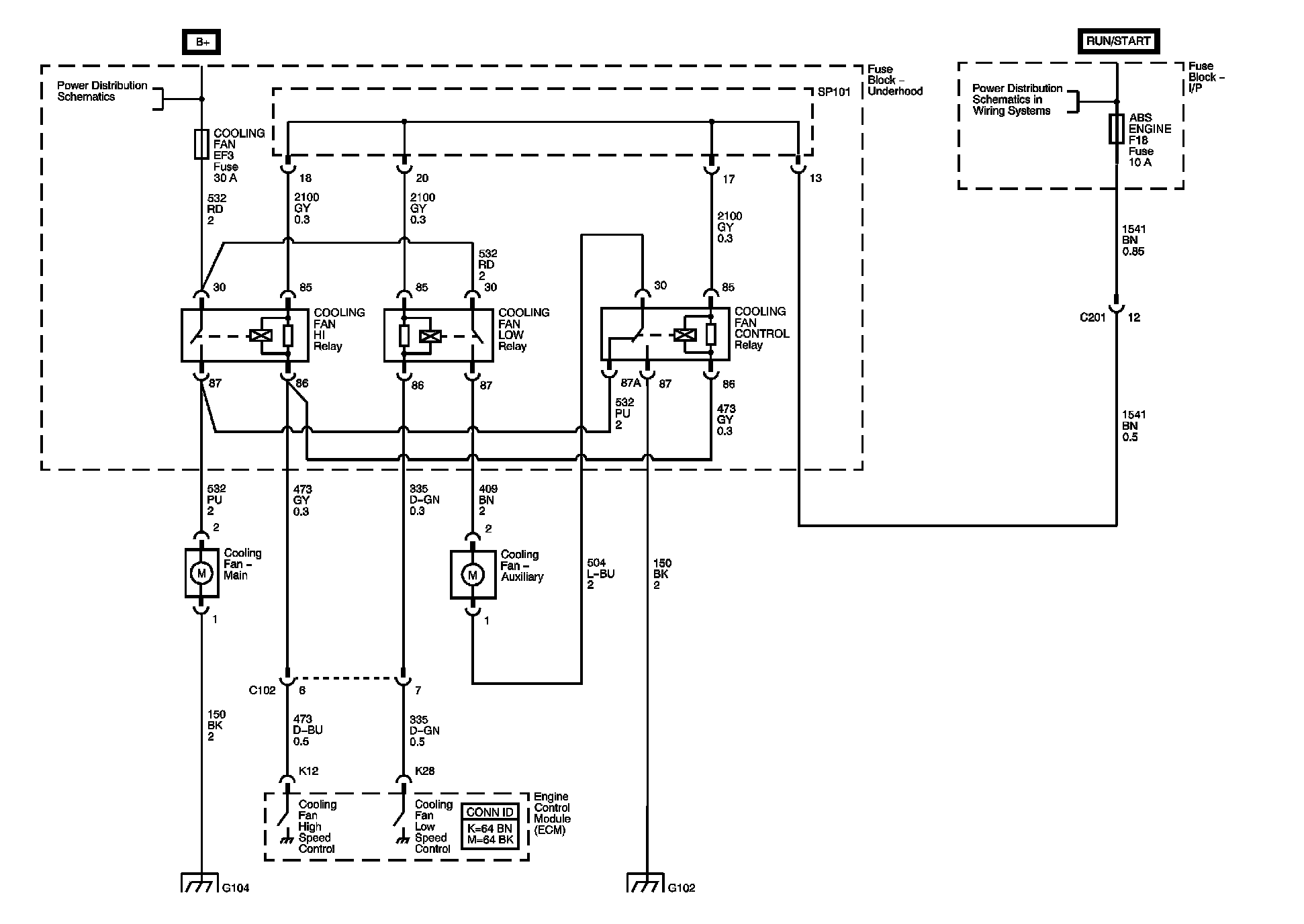

Dual Cooling Fan - 1.4L DOHC, 1.6L
