Horn: Service and Repair

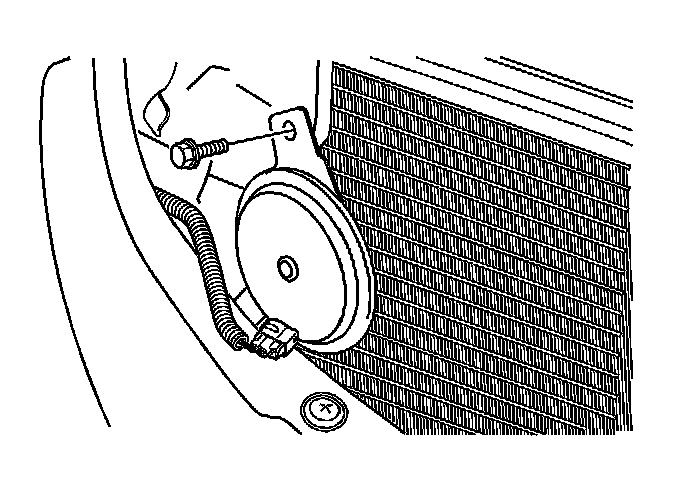

HORN REPLACEMENTREMOVAL PROCEDURE
CAUTION: Refer to Battery Disconnect Caution in Service Precautions.
Battery Disconnect Caution
1. Disconnect the negative battery cable.
2. Remove the bolt from the horn.
3. Disconnect the electrical connector.
4. Remove the horn.

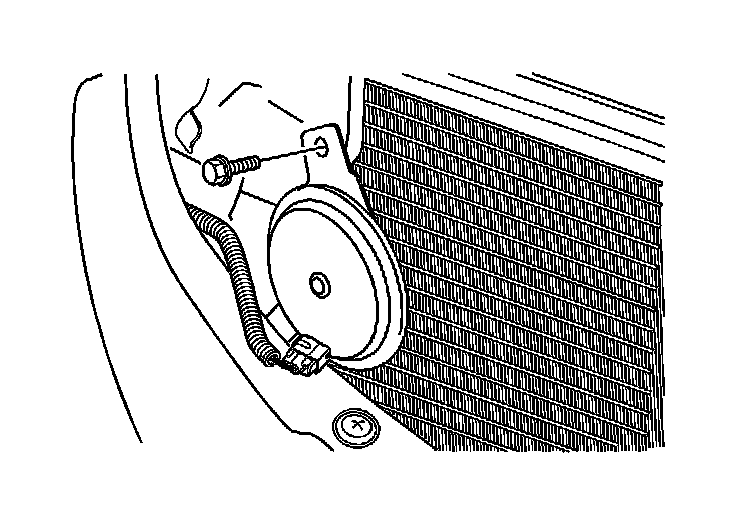

INSTALLATION PROCEDURE
1. Connect the electrical connector.
NOTE: Refer to Fastener Notice in Service Precautions.
Fastener Notice
2. Install the horn with the bolt.
Tighten
Tighten the horn bolt to 15 N.m (11 lb ft).
3. Connect the negative battery cable.
