Trunk Lamp: Service and Repair

REAR COMPARTMENT LAMP REPLACEMENT

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.
Battery Disconnect Caution







1. Disconnect the negative battery cable.

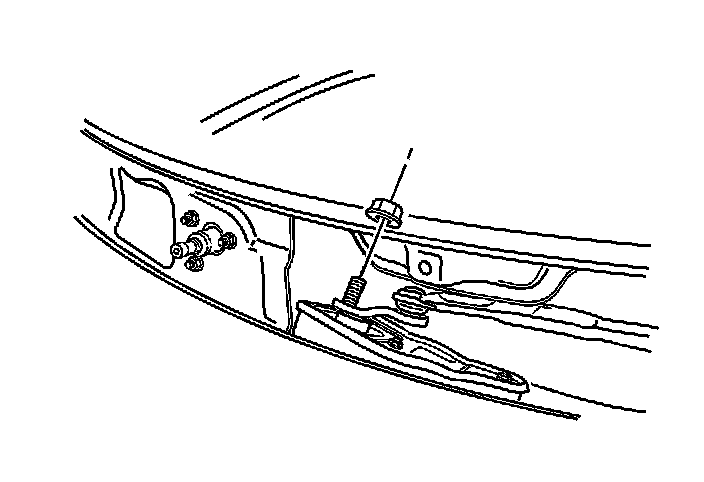

2. Gently pry the luggage compartment lamp off by inserting a flathead screwdriver into the recess on the edge of the lamp.
3. Disconnect the electrical connector.
4. Remove the bulb.


INSTALLATION PROCEDURE







1. Install a new bulb.
2. Connect the electrical connector.
3. Insert the luggage compartment lamp into the recess and press the lens into place.
4. Connect the negative battery cable.
