Turn Signals: Service and Repair

REPEATER LAMP REPLACEMENT

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.
Battery Disconnect Caution







1. Disconnect the negative battery cable.

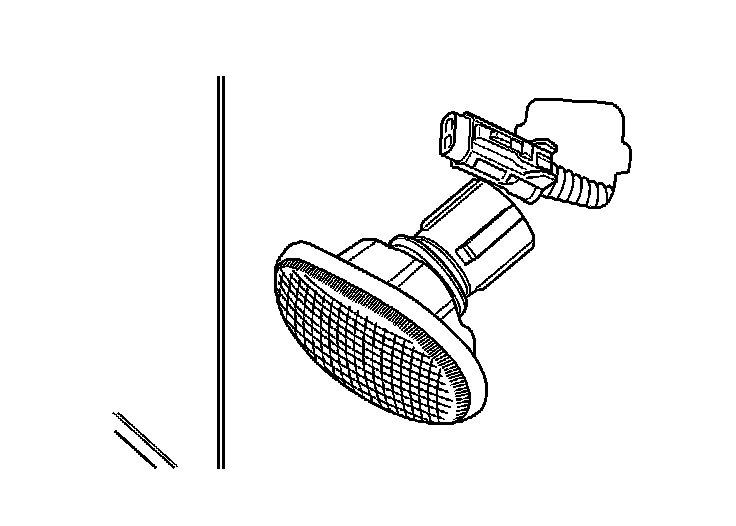

2. Slide the side turn signal lamp rearward.
3. Remove the lamp.
4. Disconnect the electrical connector.


INSTALLATION PROCEDURE







1. Connect the electrical connector.
2. Install the side turn signal lamp.
3. Connect the negative battery cable.
