Home >> Chevrolet >> 2004 >> Aveo L4-1.6L VIN 6 >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Switch >> Diagrams

Wiper Switch: Diagrams

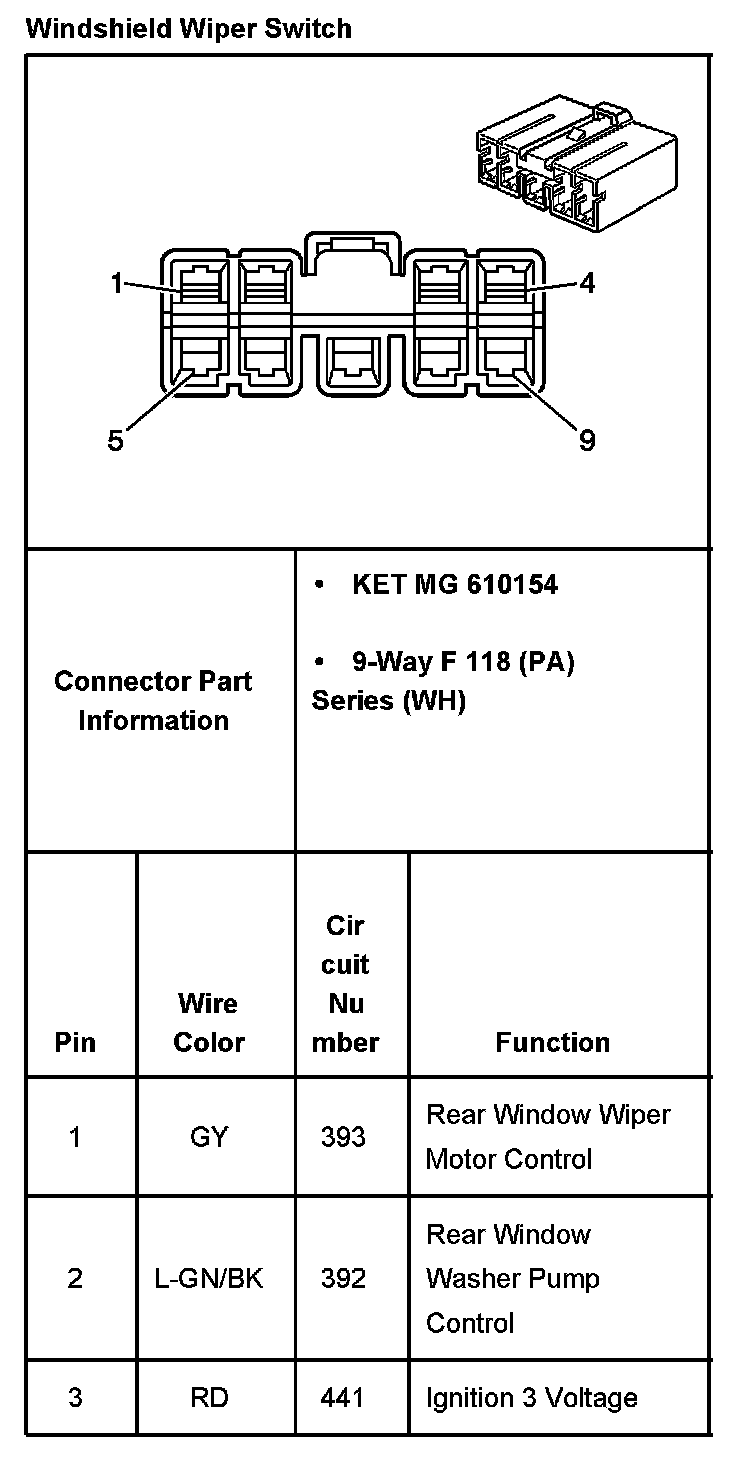

Windshield Wiper Switch Part 1:



Windshield Wiper Switch Part 2:
