C130 Engine Harness to Fuel Injector Harness
C130 Engine Harness to Fuel Injector Harness

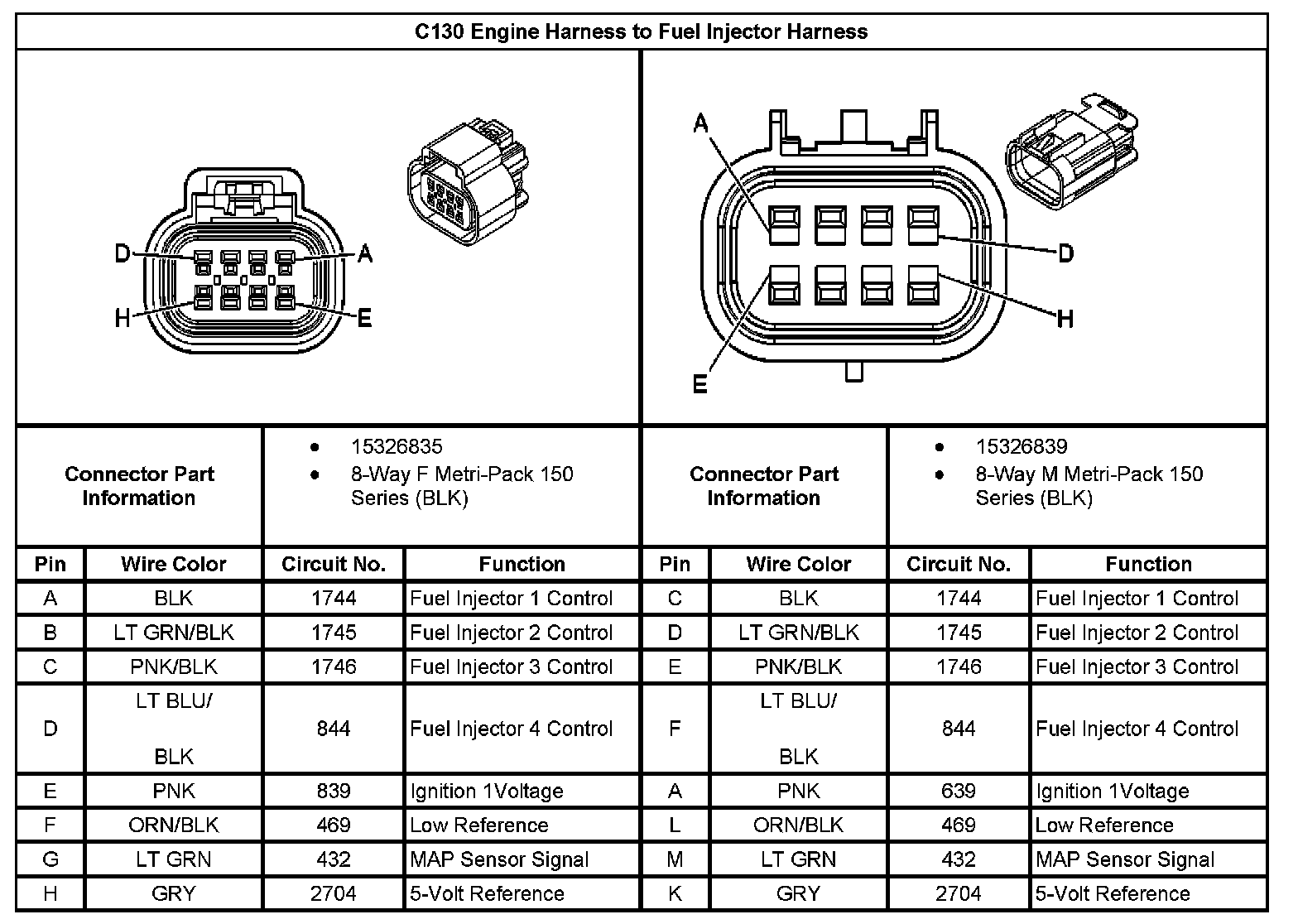

C130 Engine Harness To Fuel Injector Harness:
