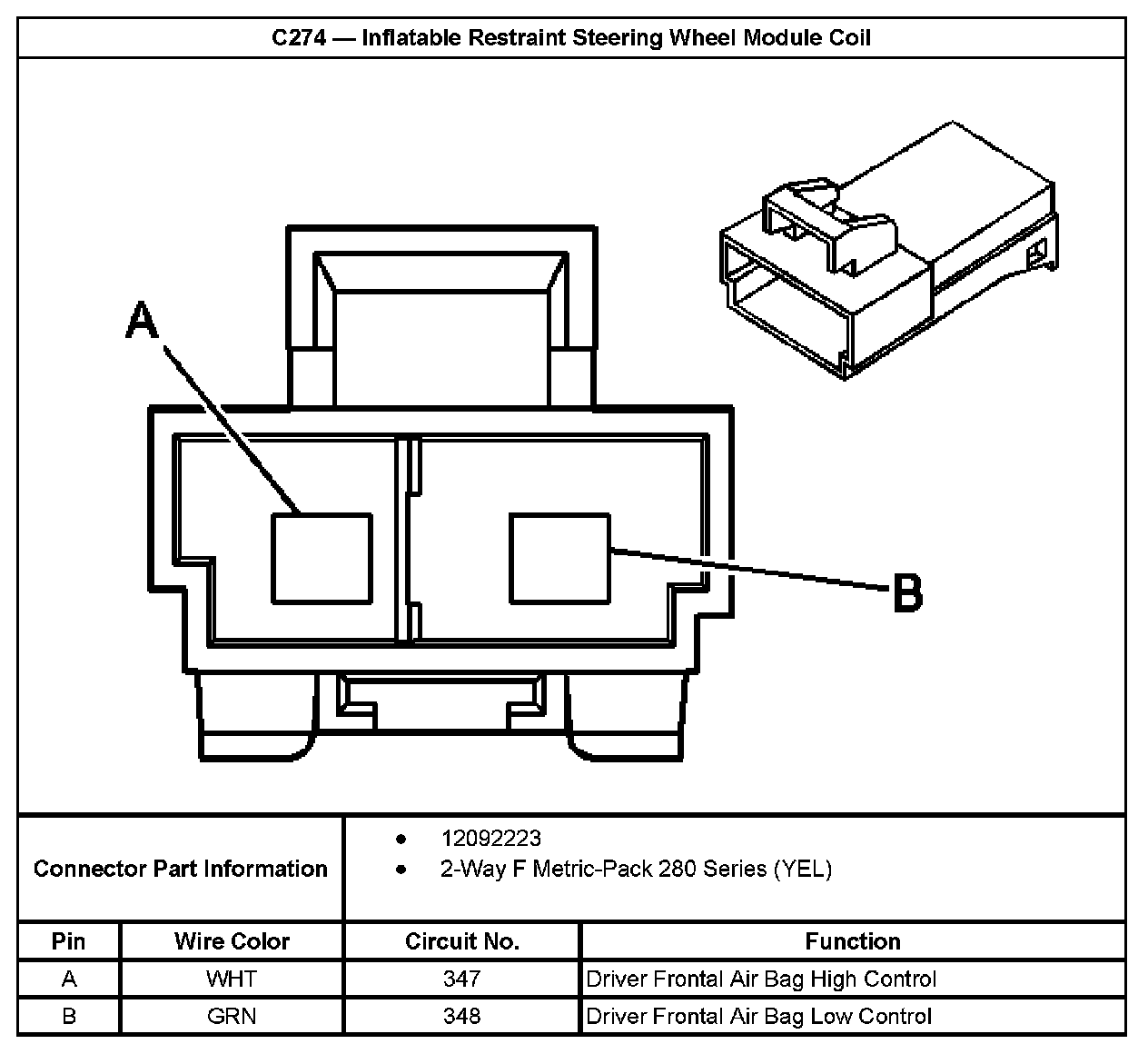

C274 - Inflatable Restraint Steering Wheel Module Coil

C274 - Inflatable Restraint Steering Wheel Module Coil:
