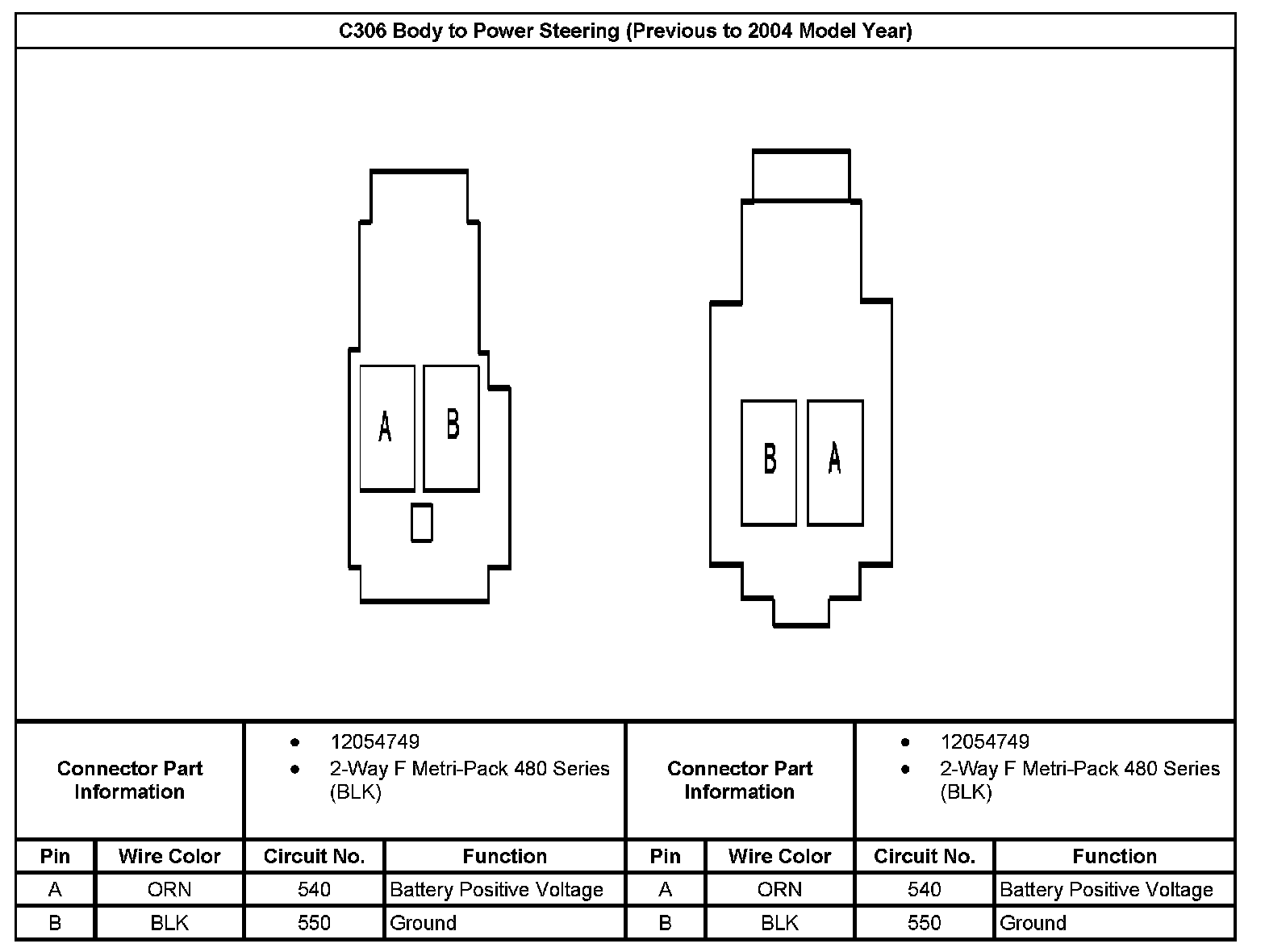

C306 Body to Power Steering (Previous to 2004 Model Year)
C306 Body to Power Steering (Previous to 2004 Model Year)
C306 Body To Power Steering (Previous To 2004 Model Year):
