C500 - C501
>>
C501 Left Front Door to Body
C501 Left Front Door to Body

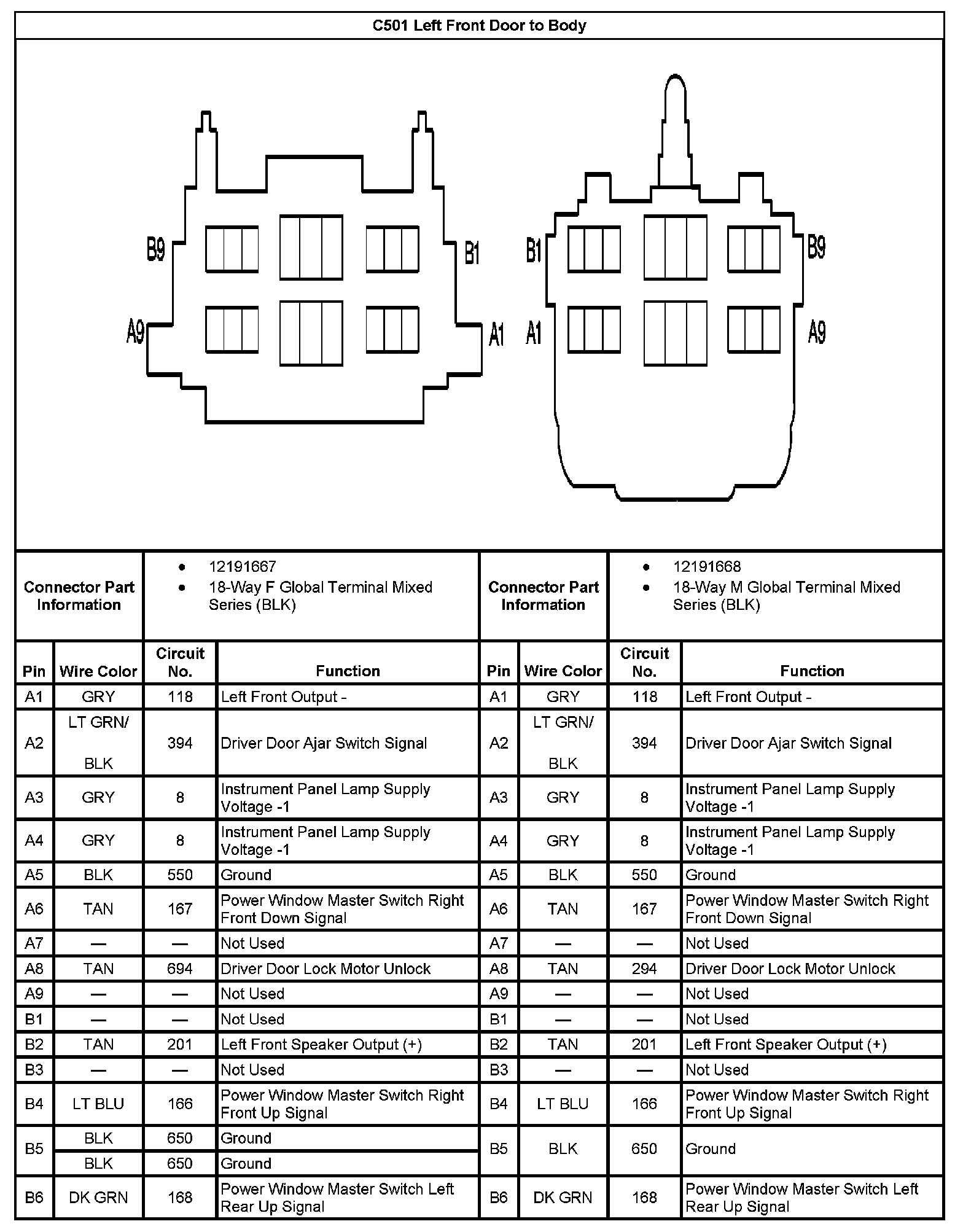

C501 Left Front Door To Body Part 1:

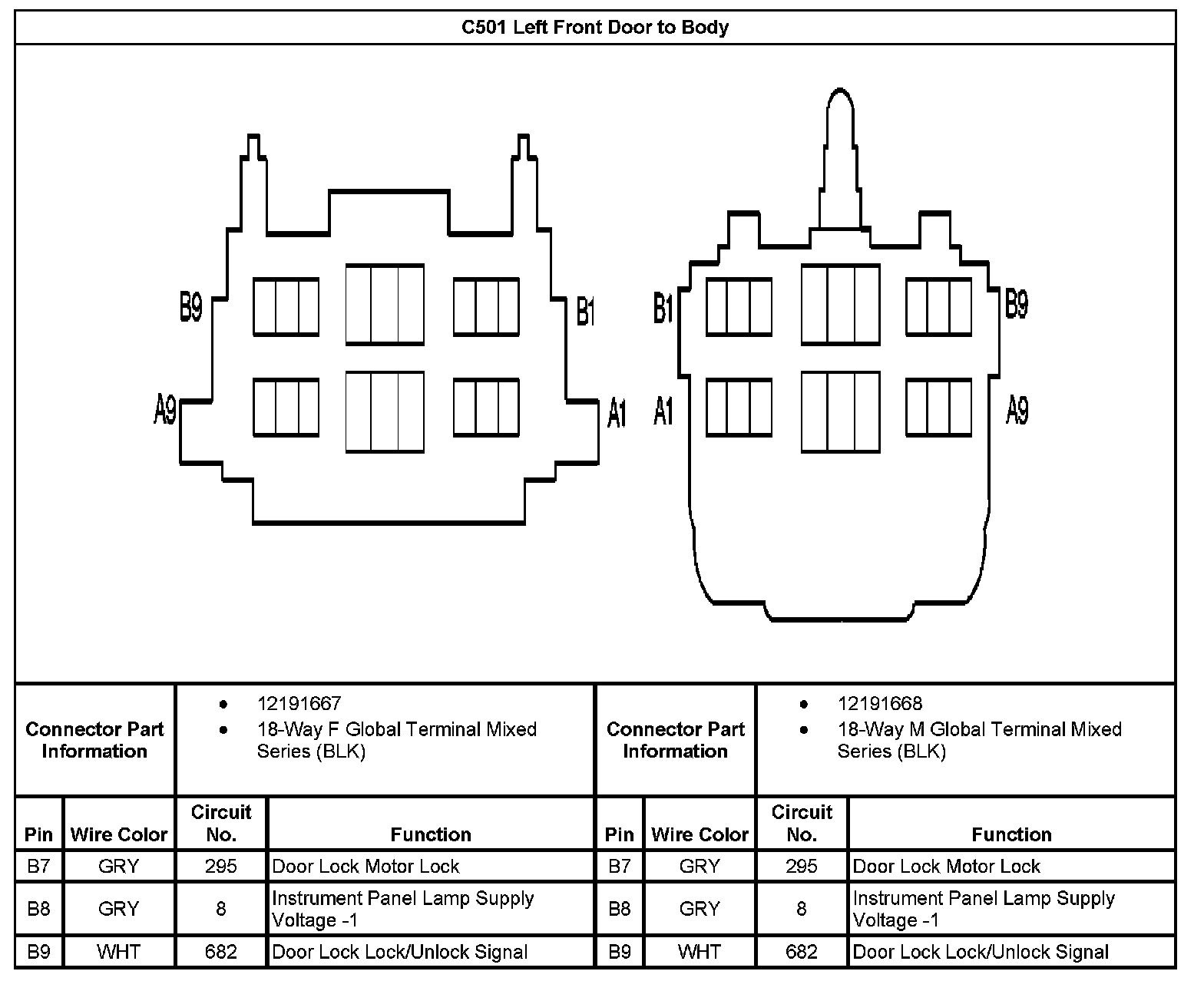

C501 Left Front Door To Body Part 2:
