Home >> Chevrolet >> 2004 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Junction Block Underhood, C6

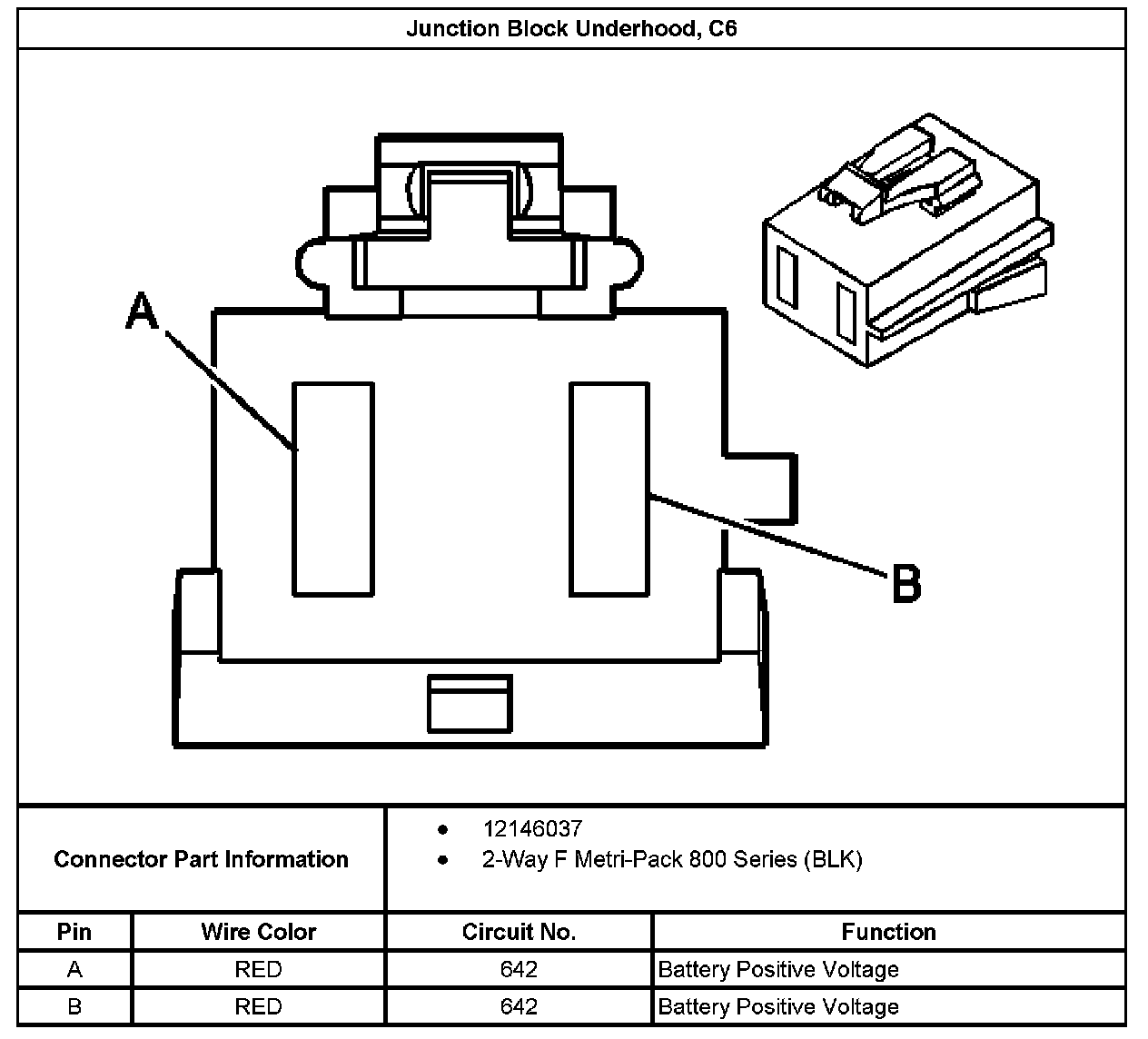

Junction Block Underhood, C6

Junction Block Underhood, C6:
