Power Window Switch
Power Window Switch

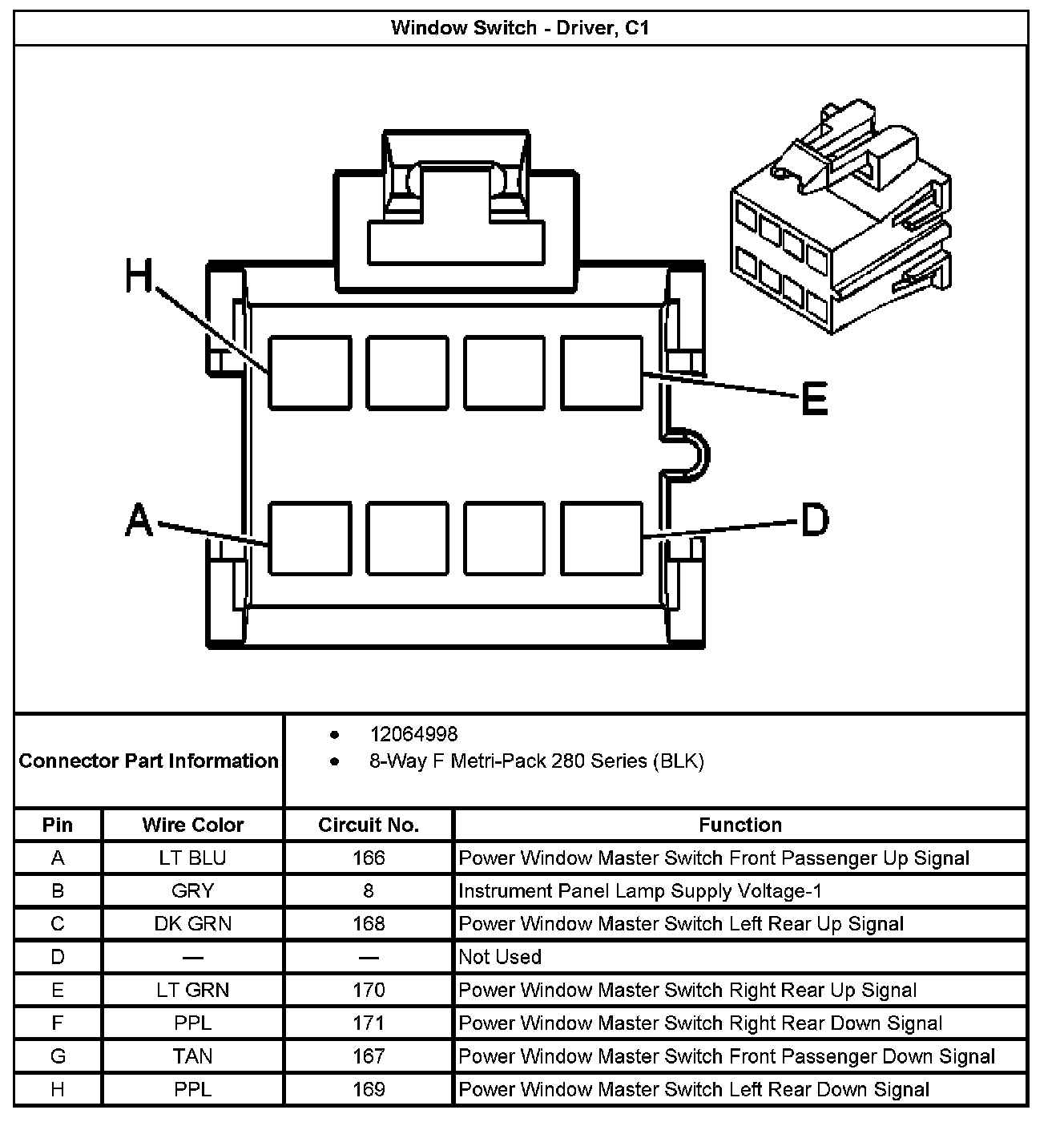

Window Switch - Driver, C1:
Window Switch - Driver, C2:

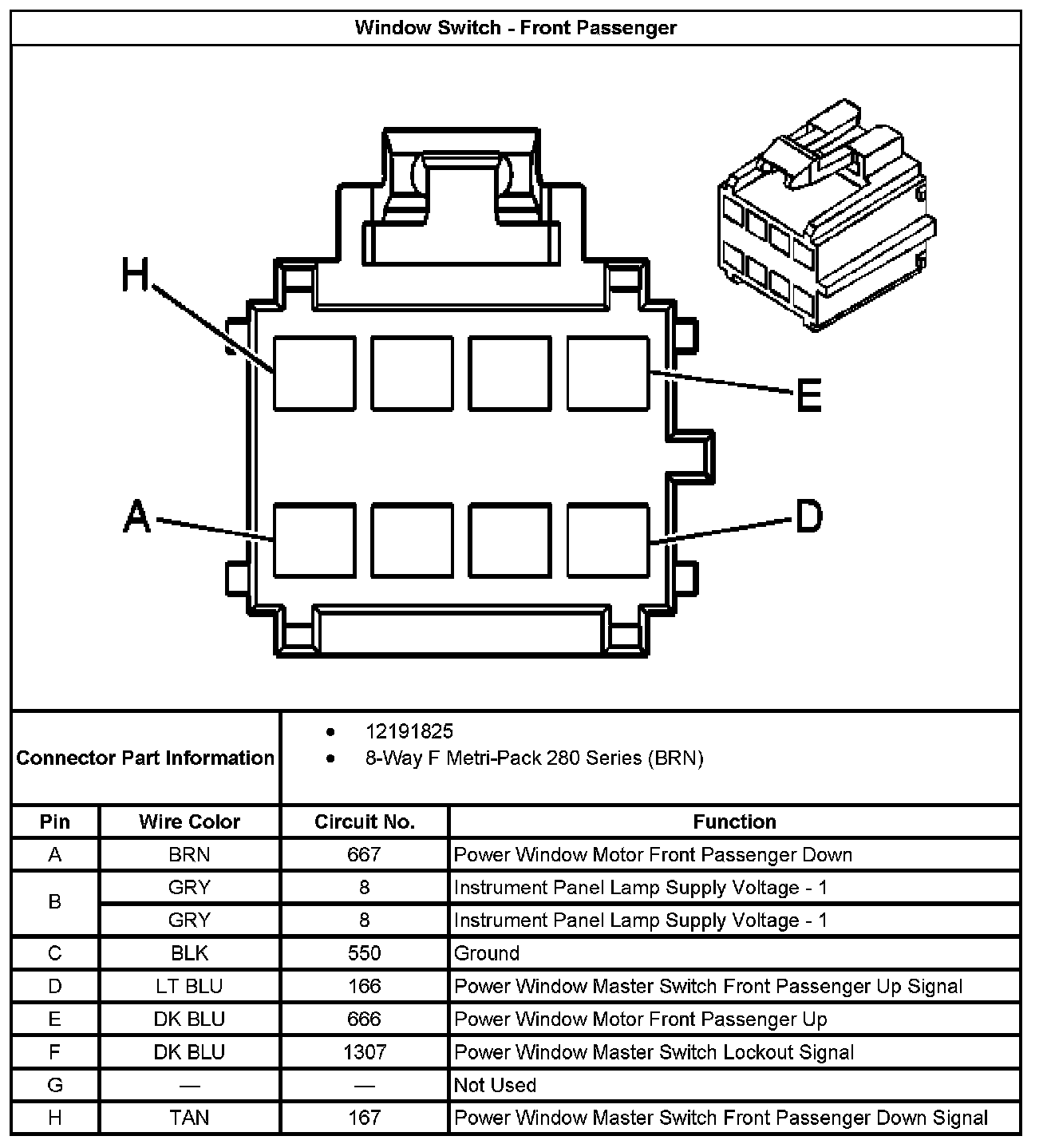

Window Switch - Front Passenger:

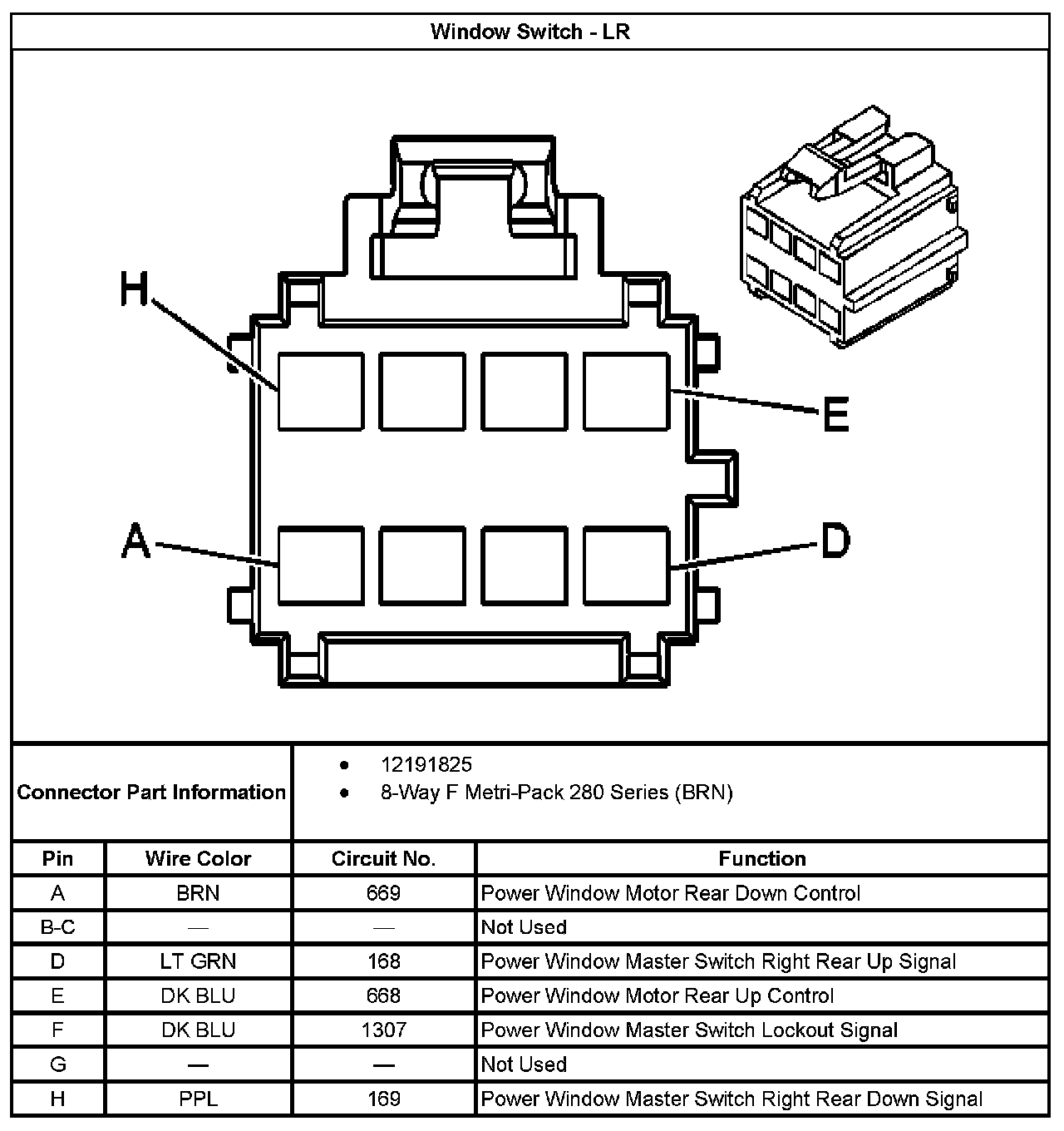

Window Switch - LR:
Window Switch - RR:
