Home >> Chevrolet >> 2004 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> SP101 - SP103 >> Splice Pack, SP103 (Indexing May Vary)

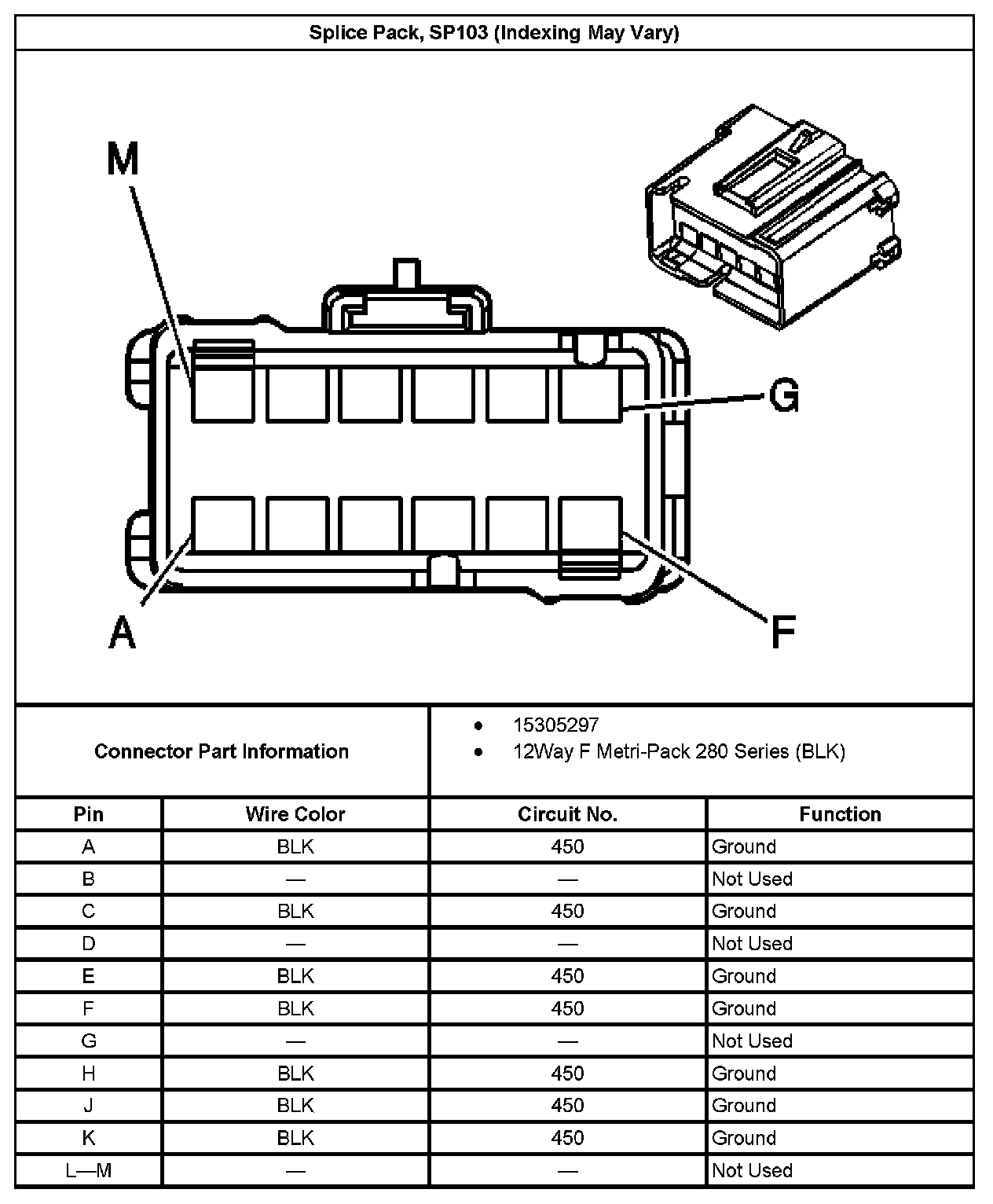

Splice Pack, SP103 (Indexing May Vary)

Splice Pack, SP103 (Indexing May Vary):
