Home >> Chevrolet >> 2004 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> SP201 - SP203 >> Splice Pack, SP201 (Indexing May Vary)

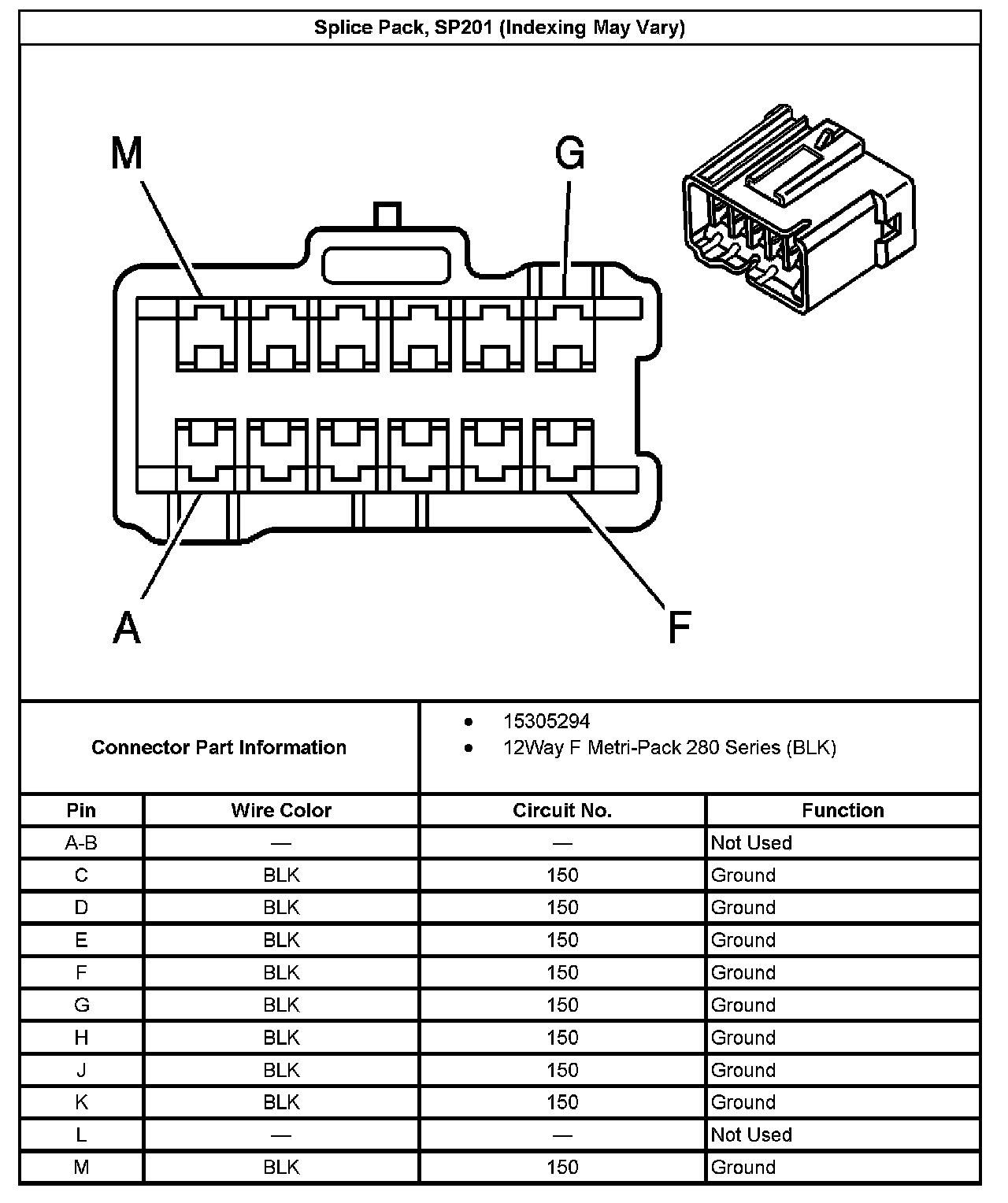

Splice Pack, SP201 (Indexing May Vary)

Splice Pack, SP201 (Indexing May Vary):
