Home >> Chevrolet >> 2004 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> SP301 - SP303 >> Splice Pack, SP303 (Indexing May Vary)

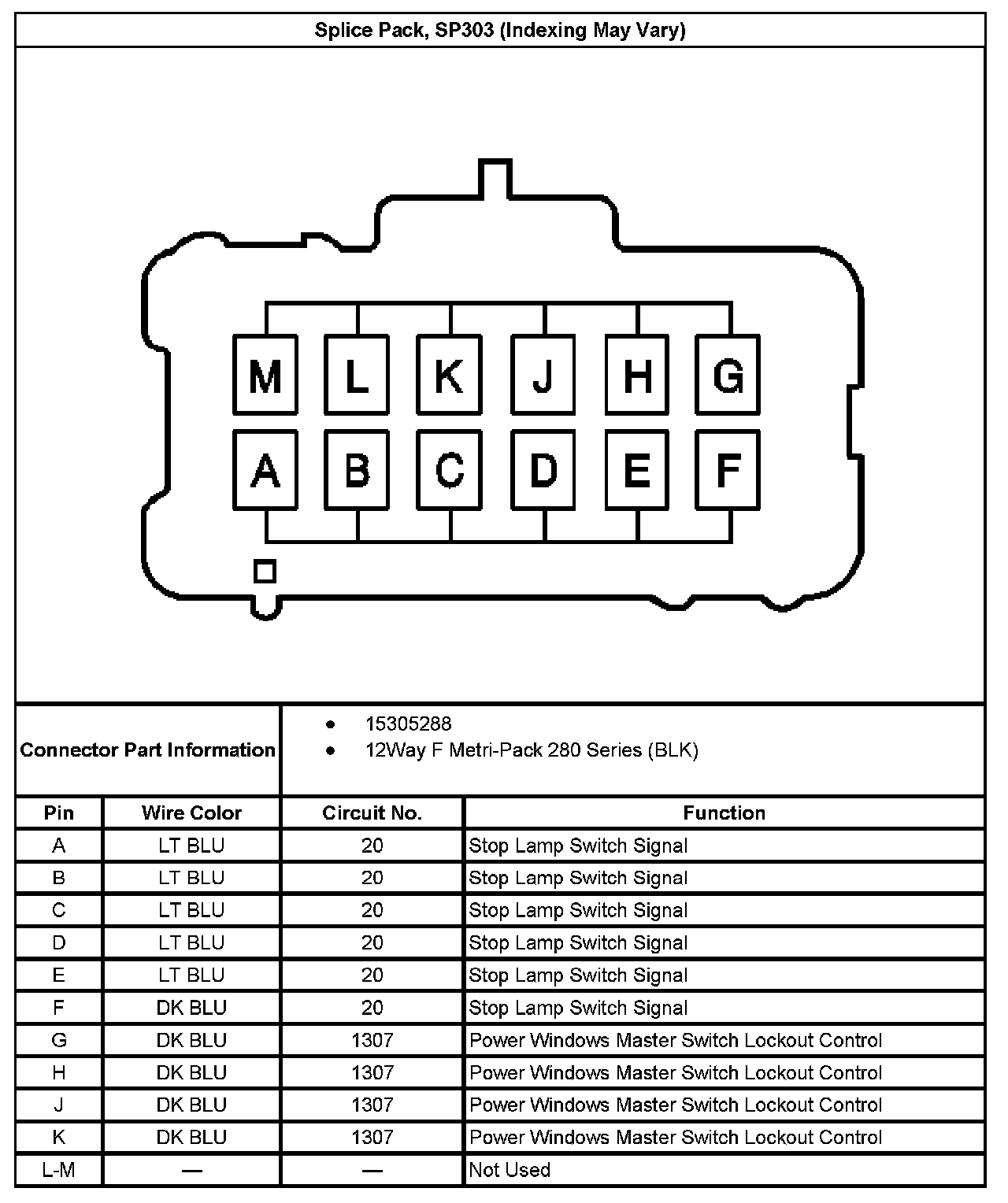

Splice Pack, SP303 (Indexing May Vary)

Splice Pack, SP303 (Indexing May Vary):
