Home
>>
Chevrolet
>>
2004
>>
Classic L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
Cooling System
Engine Cooling Schematics

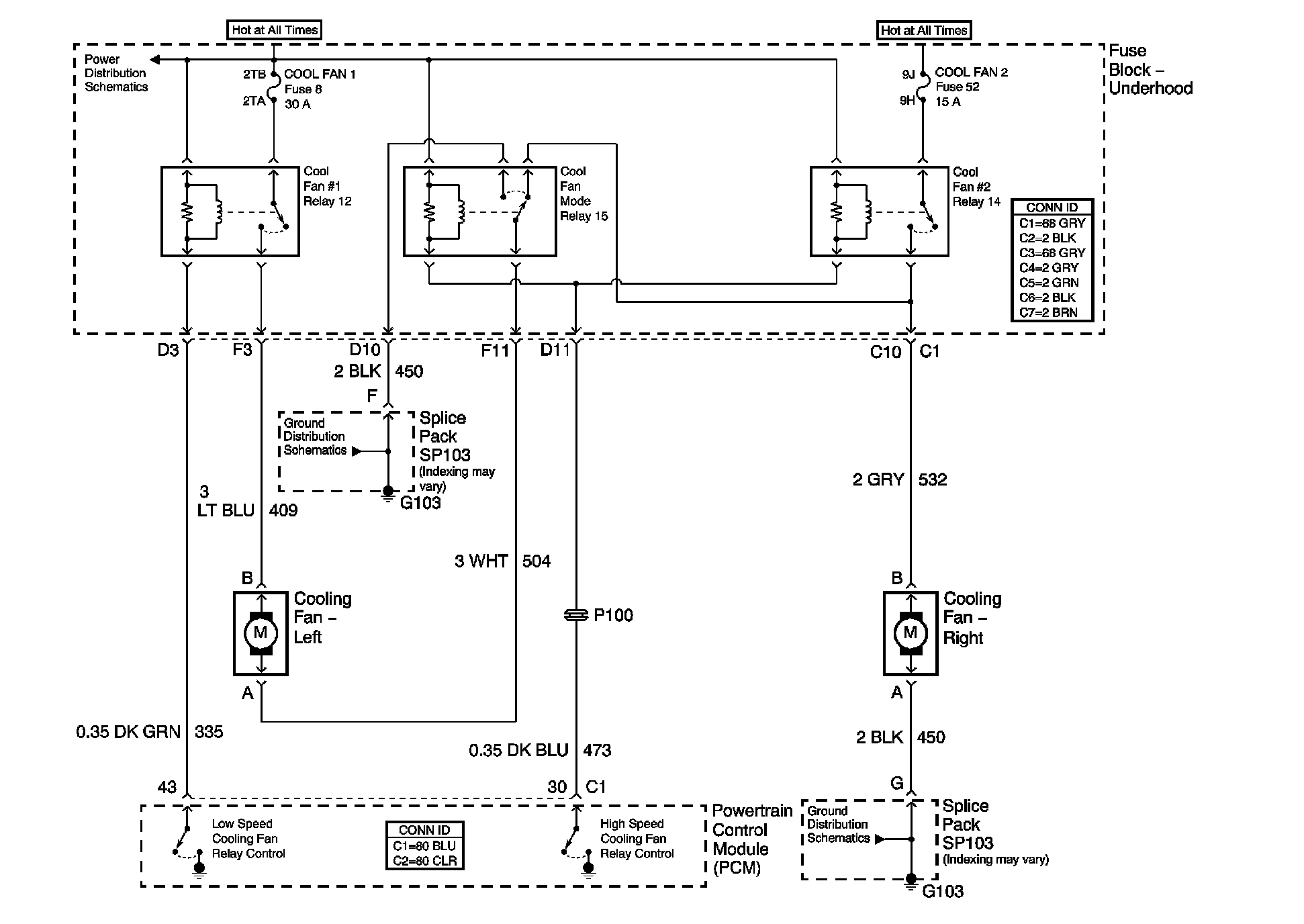

Cooling Fans

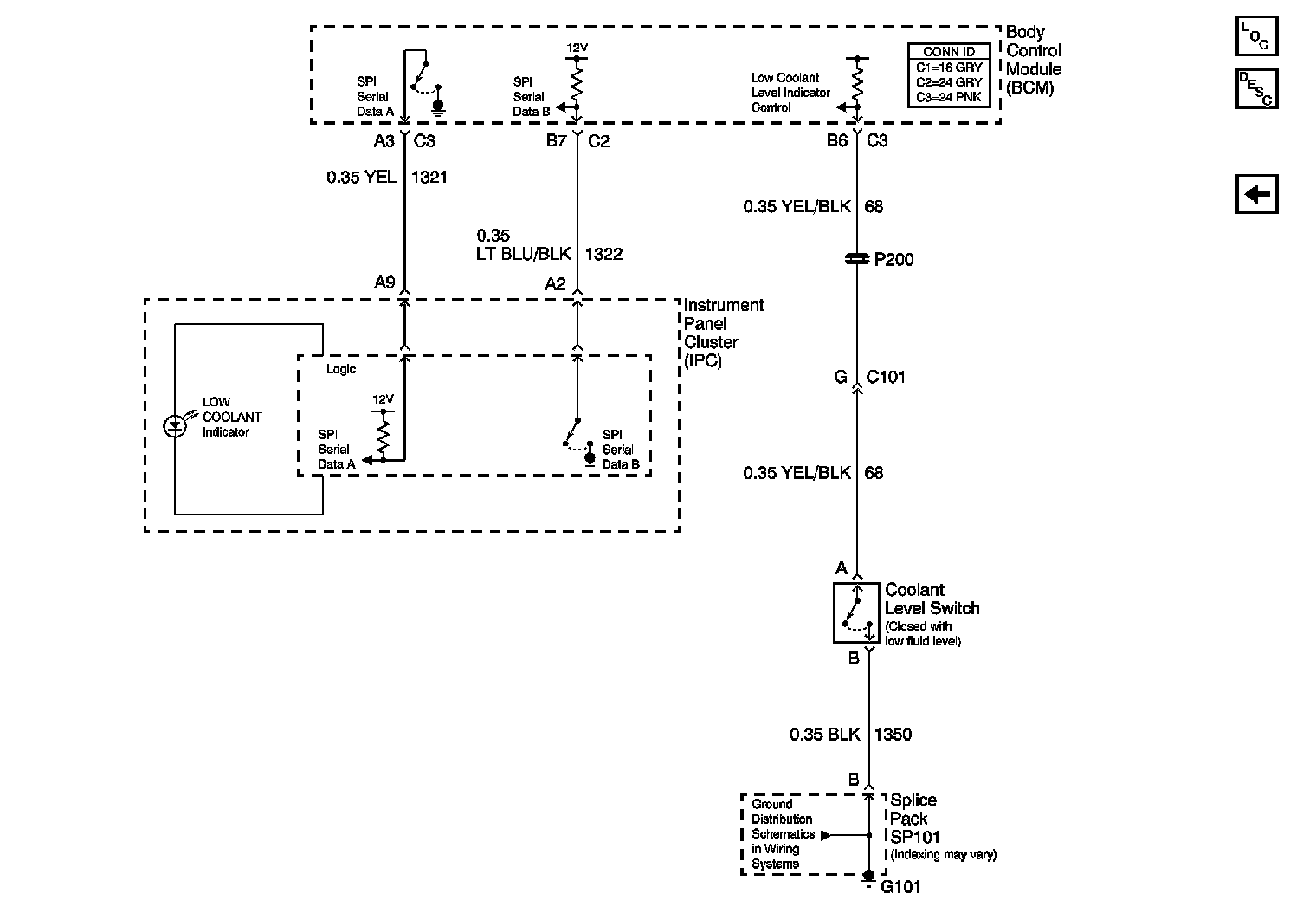

Low Coolant Indicator
