Connector Views

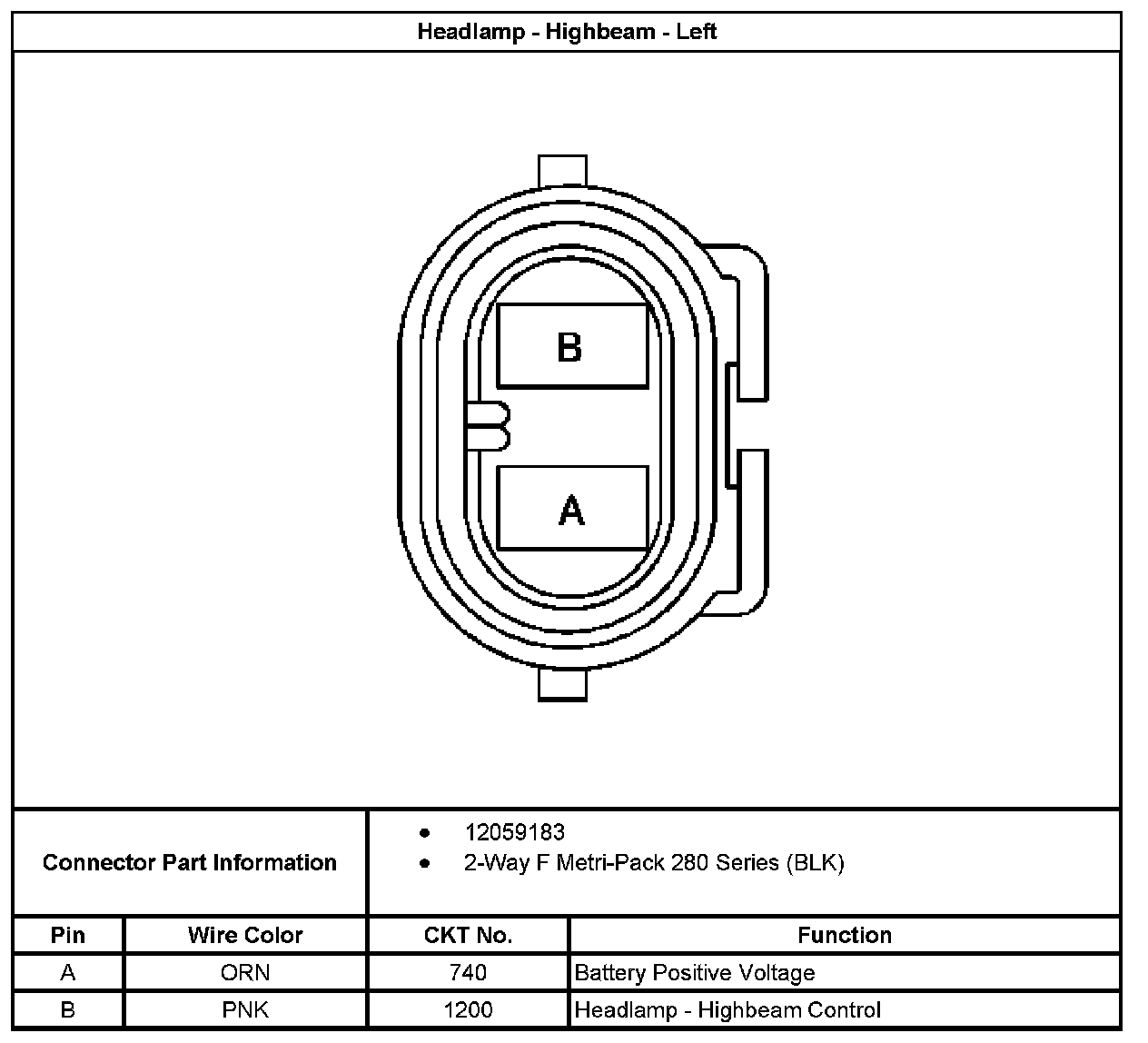

Headlamp - Highbeam - Left:

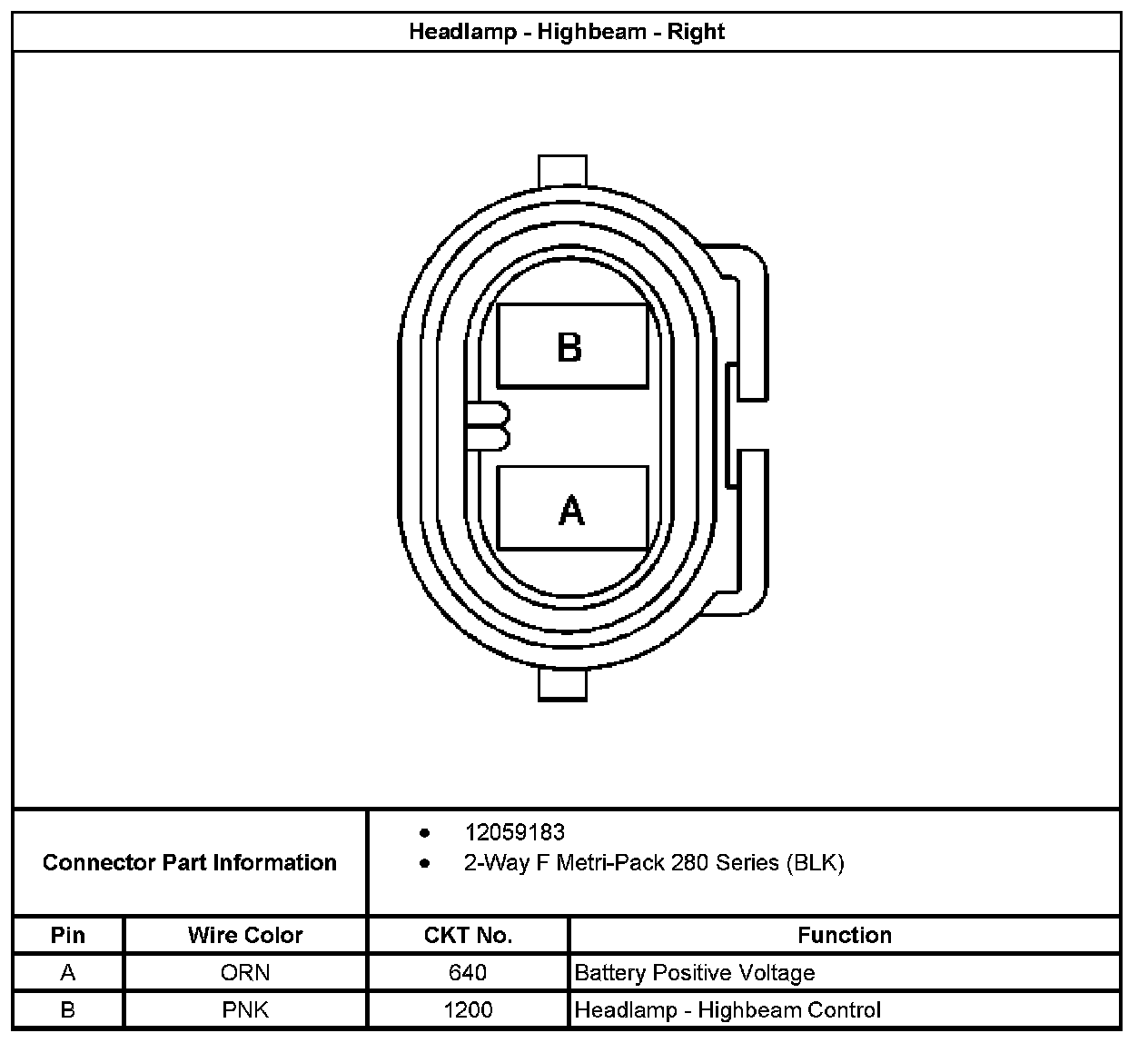

Headlamp - Highbeam - Right:

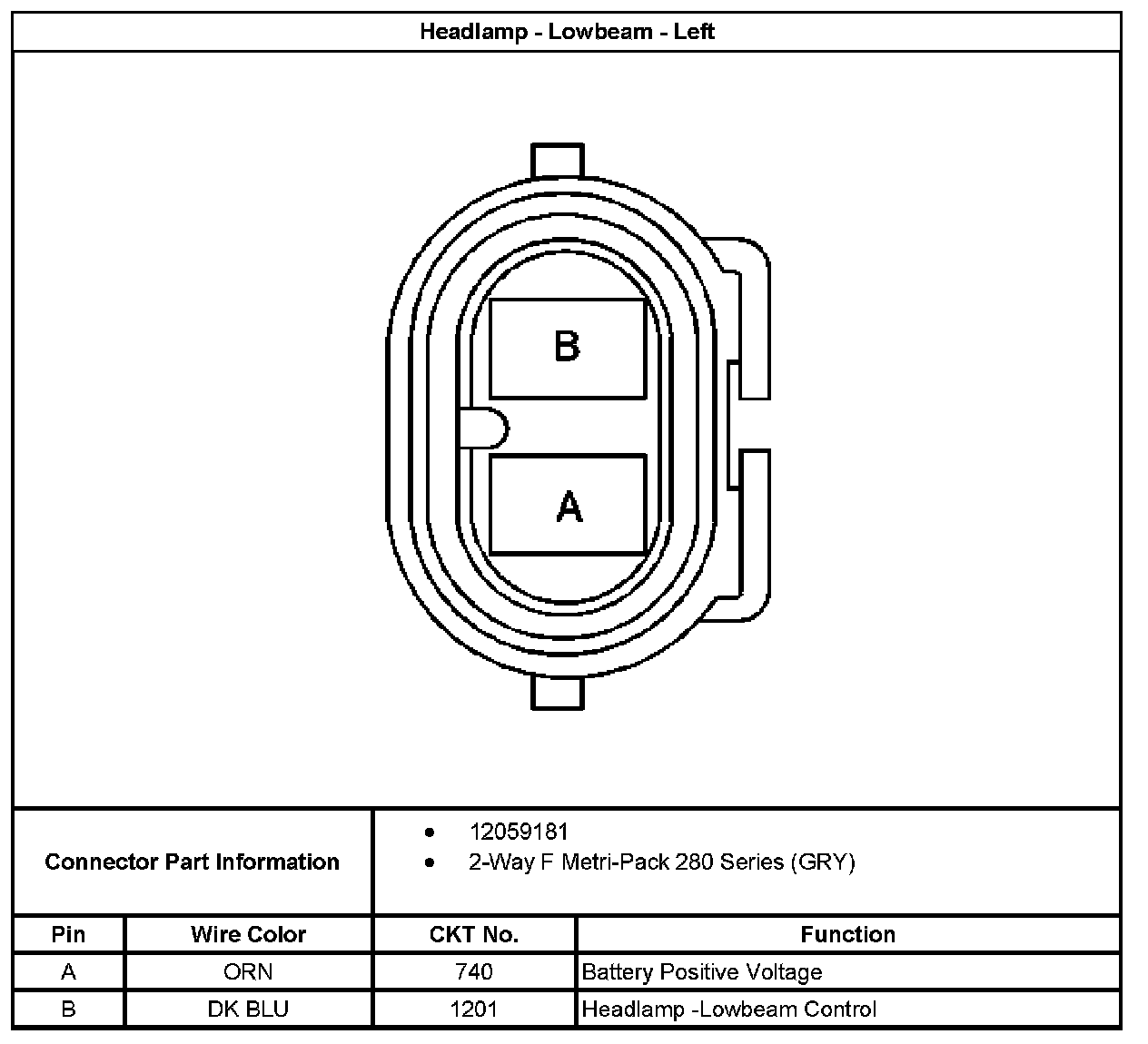

Headlamp - Lowbeam - Left:

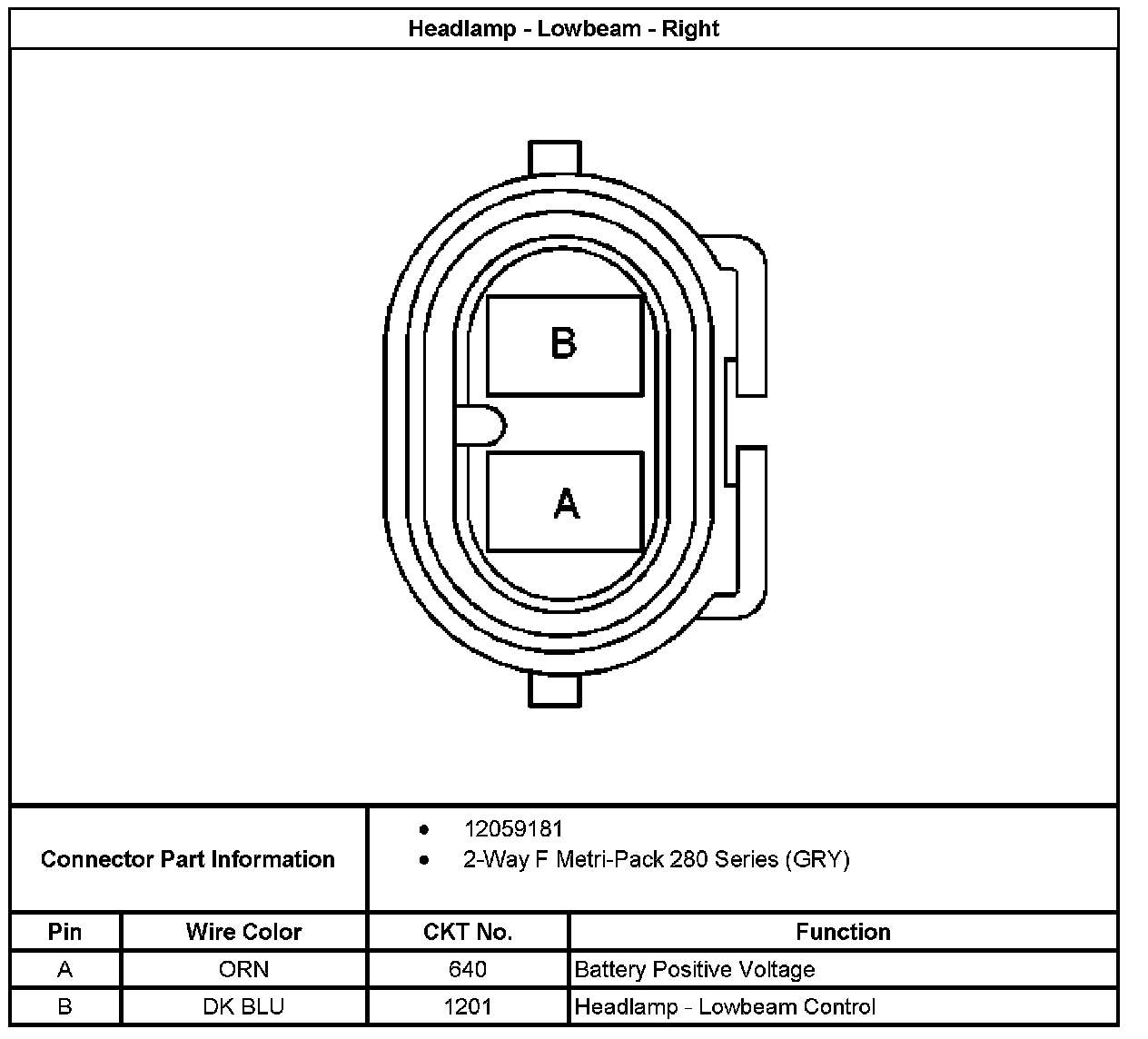

Headlamp - Lowbeam - Right:
