C302 Front Body Harness to Passengers Seat Harness
C302 Front Body Harness to Passengers Seat Harness

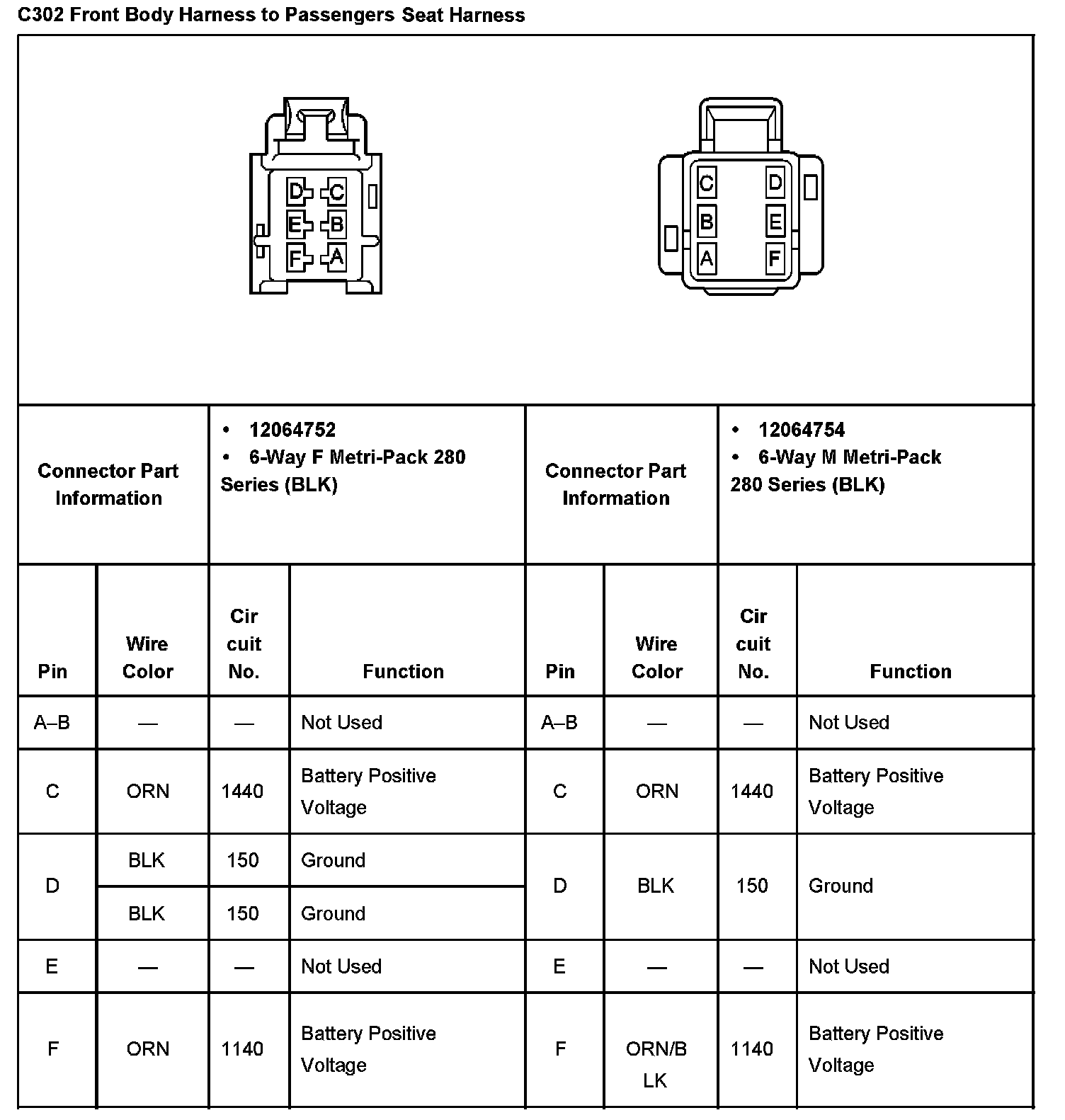

C302 Front Body Harness To Passengers Seat Harness:
