Fuel Gauge Sender
Fuel Gauge Sender

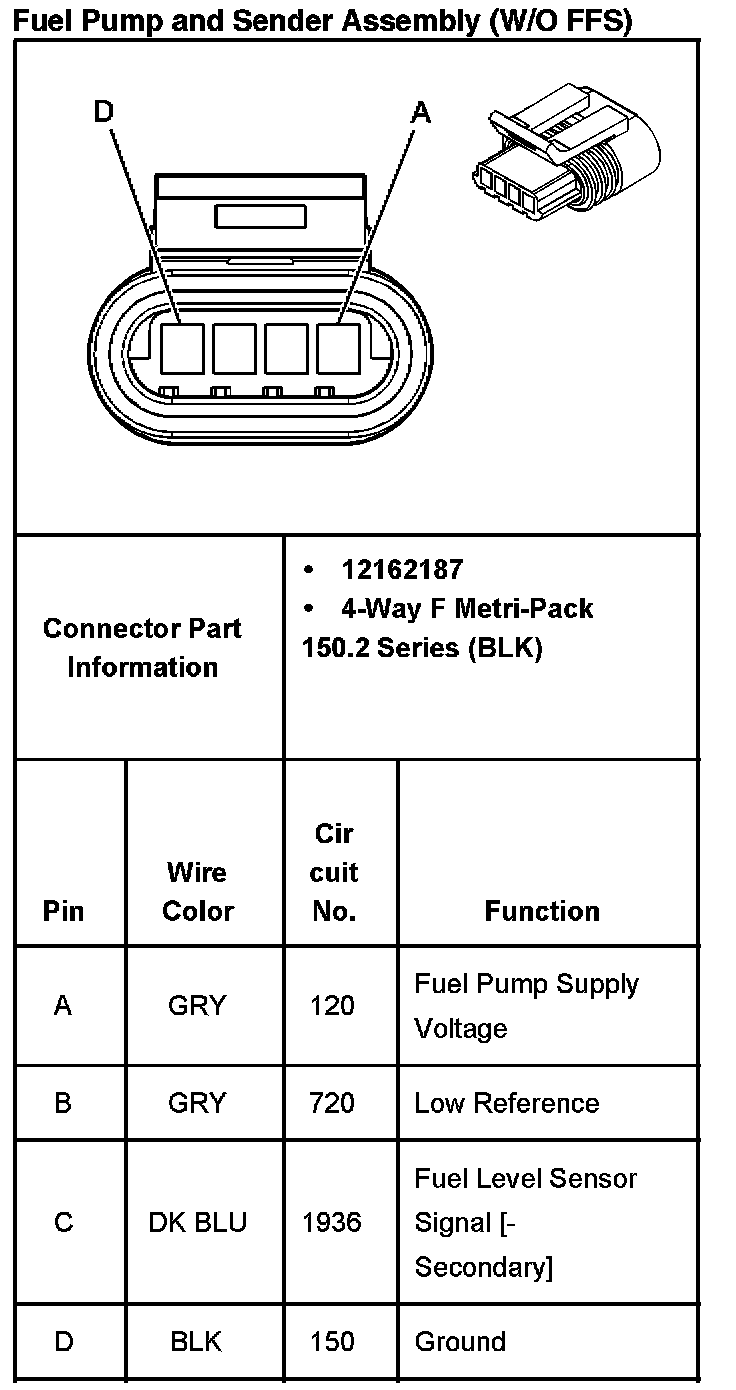

Fuel Pump And Sender Assembly (Without RPO Code FFS):
Fuel Pump And Sender Assembly (With RPO Code FFS):
