Hydraulic Brakes Connector End Views

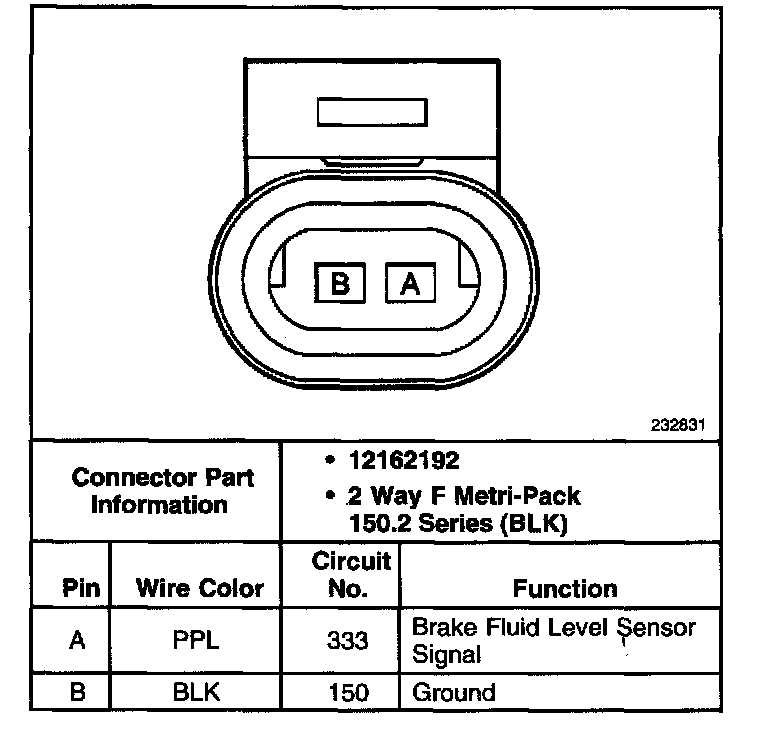

Brake Fluid Level Switch:
Brake Fluid Level Switch

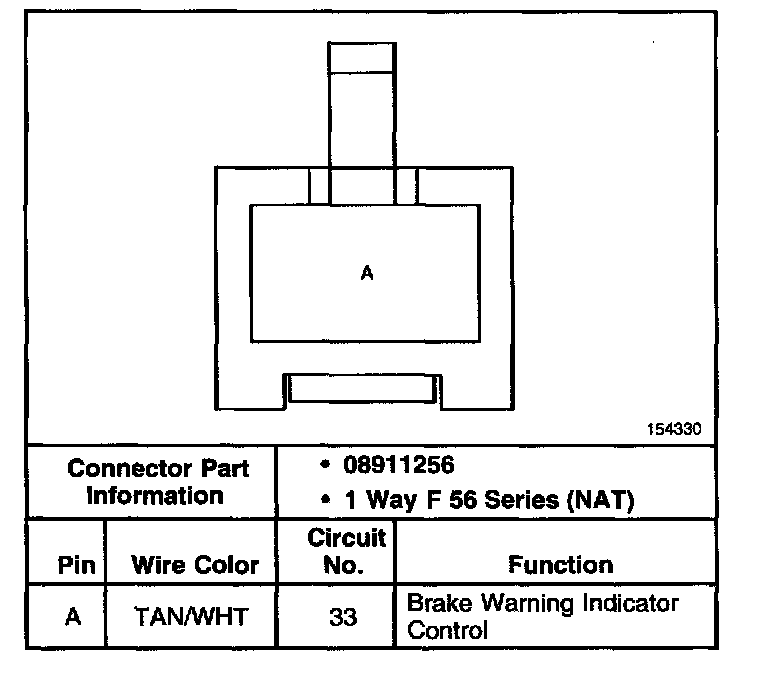

Park Brake Switch:
Park Brake Switch
