Case and Associated Parts

Disassembled Views

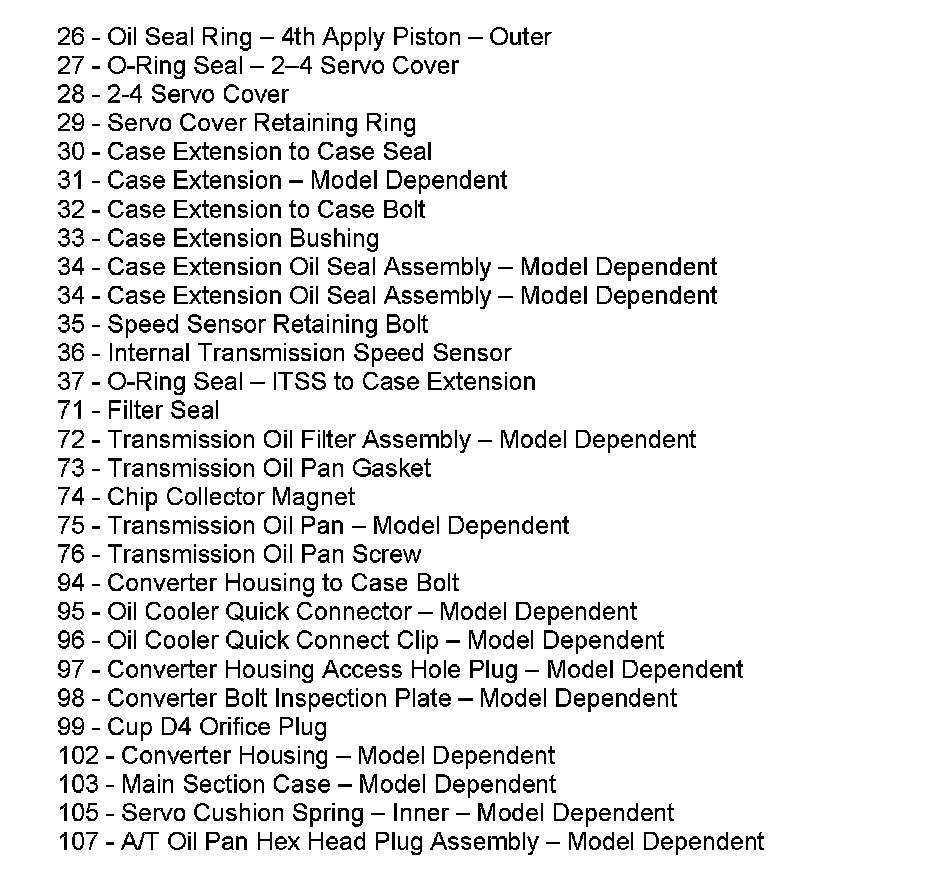

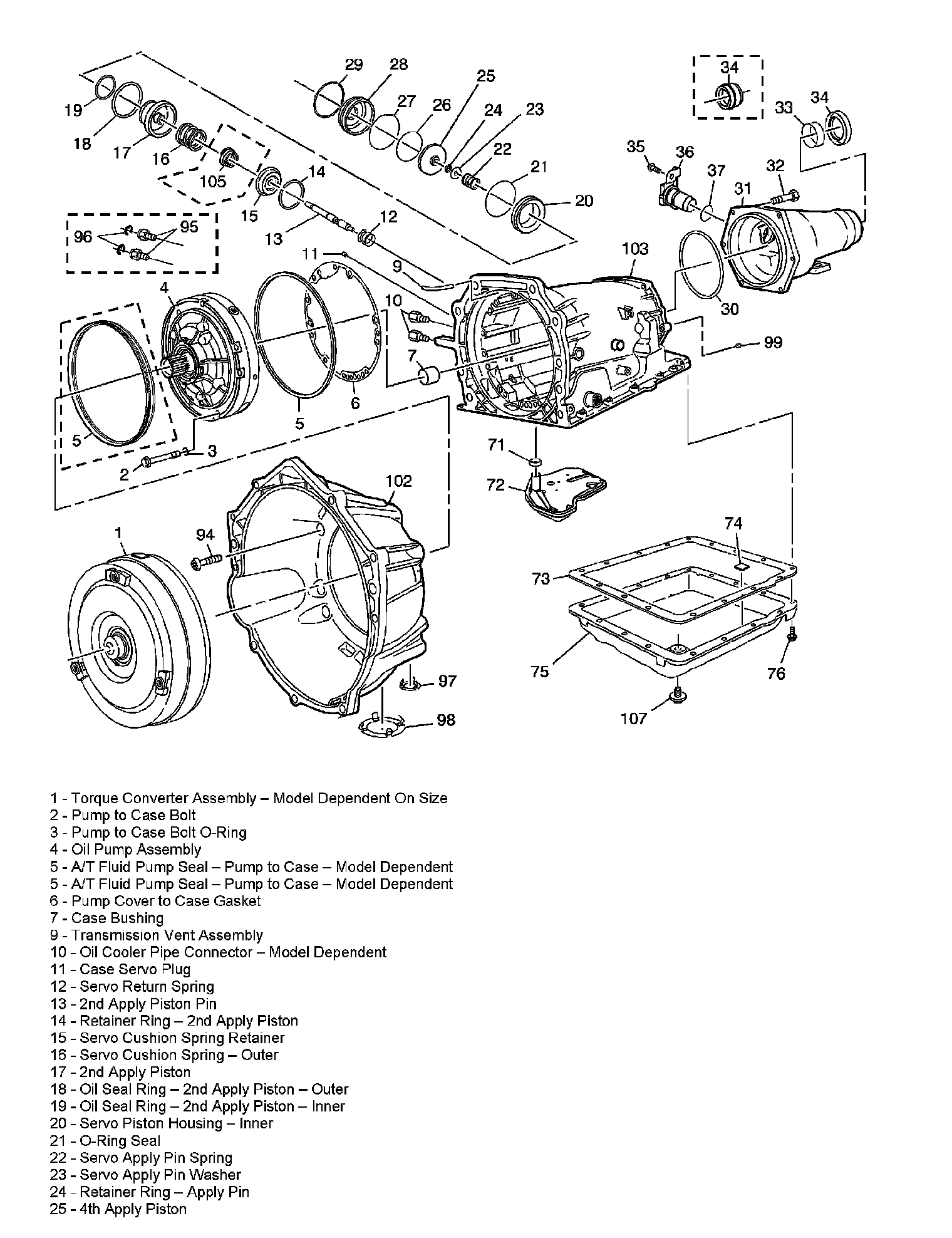

Case and Associated Parts (1 of 2)

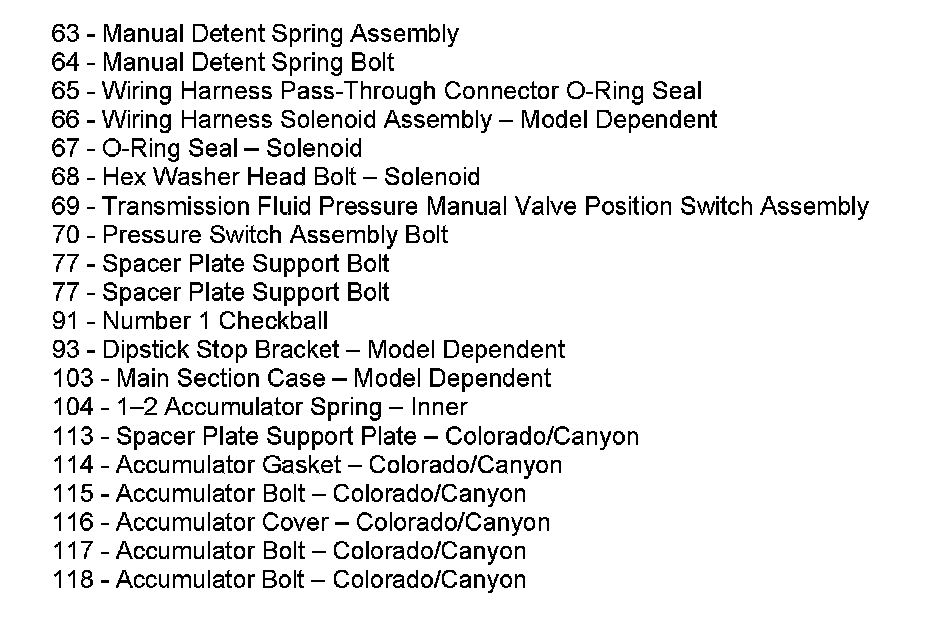

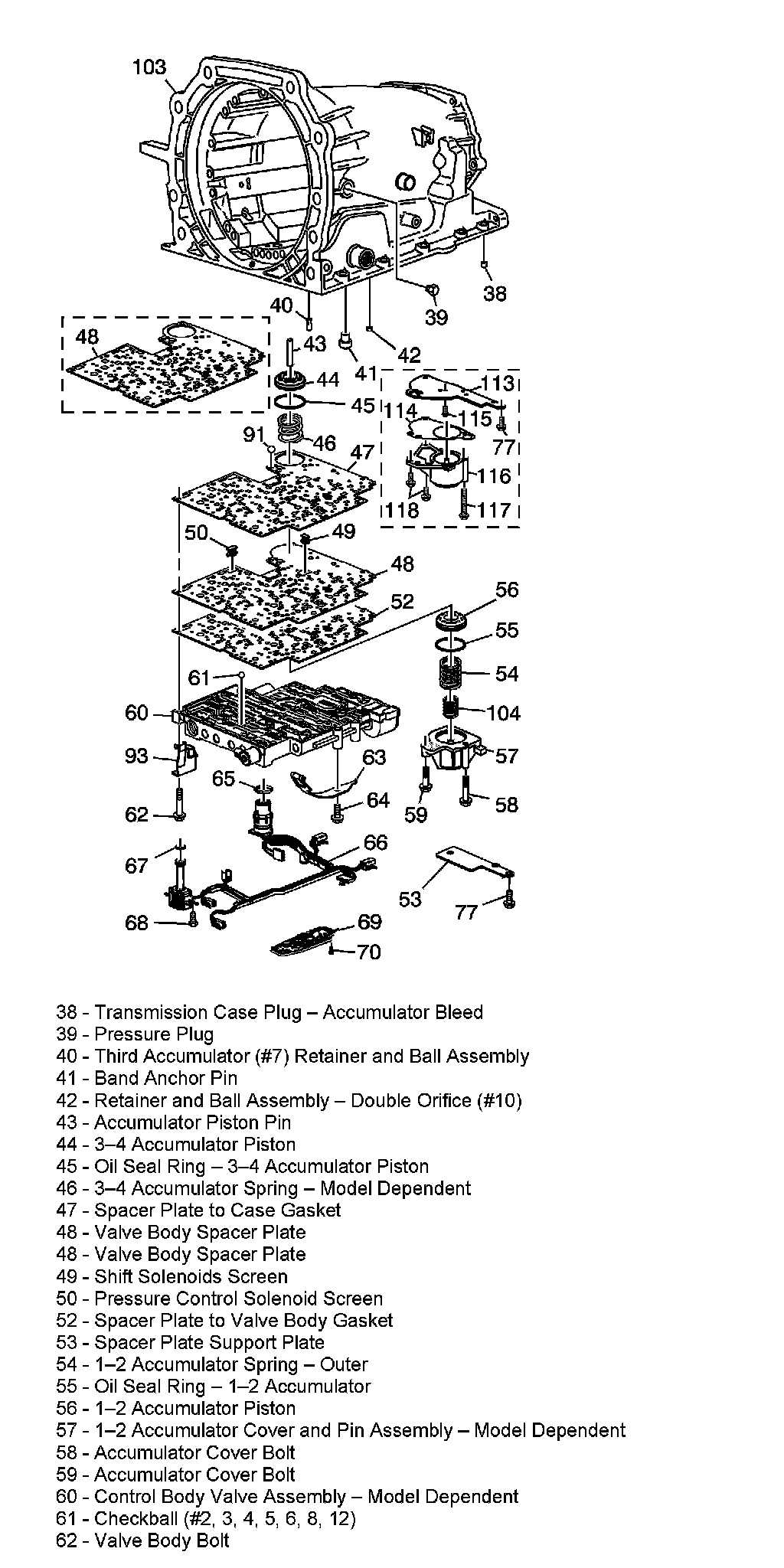

Case and Associated Parts (2 of 2) M30/M32





Case and Associated Parts (2 of 2) M33 Only
