Forward Lamp Harness Views
>>
Forward Lamp Harness
Forward Lamp Harness

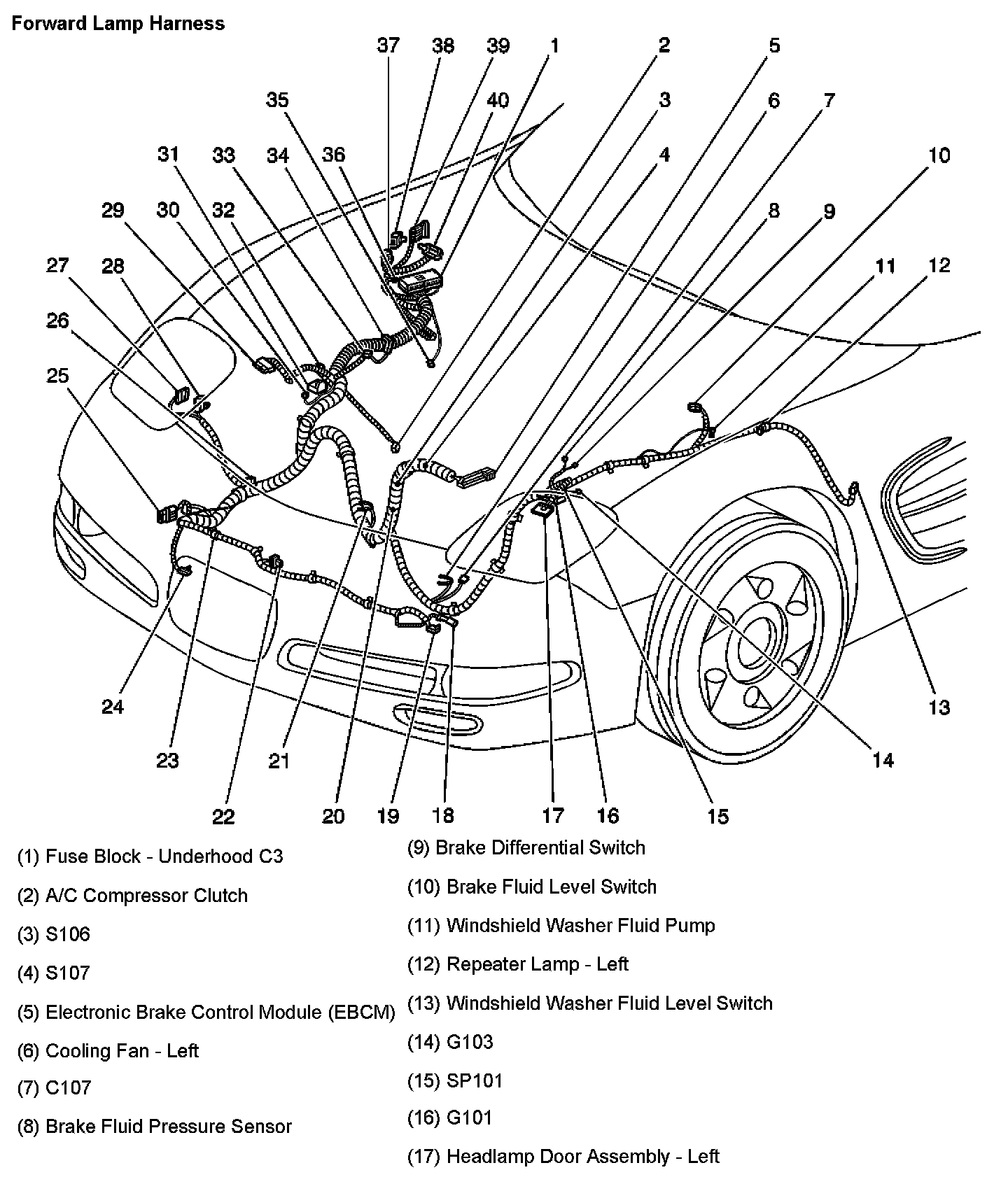

Forward Lamp Harness, Part 1:

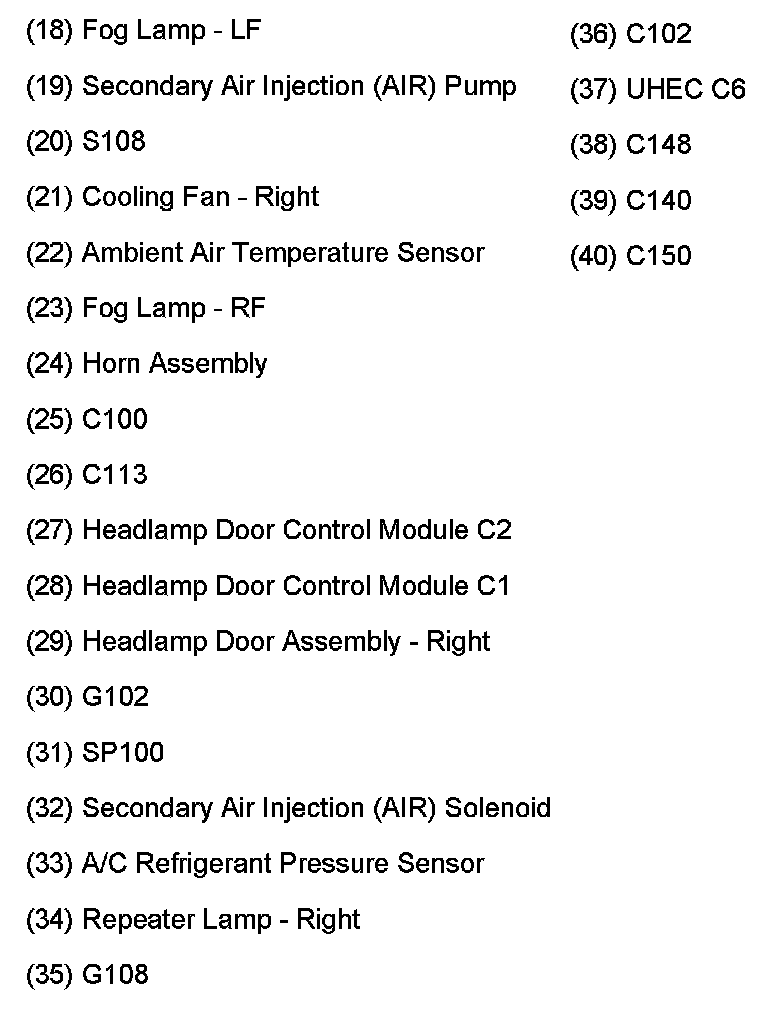

Forward Lamp Harness, Part 2:
