Tilt Lever - Non-Telescoping

Tilt Lever Replacement

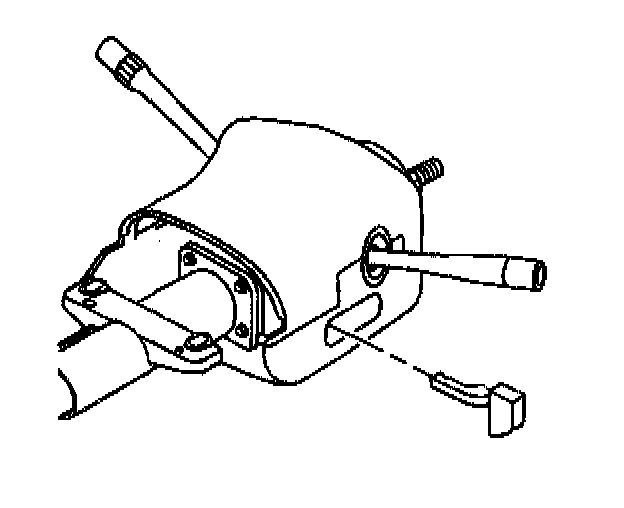

Removal Procedure





1. Using a small screw driver, release the locking tab from the tilt lever handle.
2. Slide the tilt lever handle straight out from the steering column.

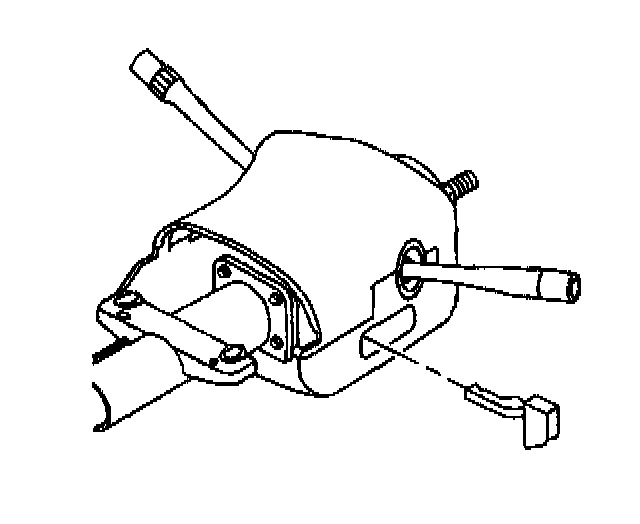

Installation Procedure





Slide the tilt lever handle into the steering column until the locking tab clicks into place.
