Drive Pinion Disassemble
Drive Pinion DisassembleTools Required
^ J42162 Side Gear Compressor
^ J42164 Pinion Gear Holder
^ J42166 Front Pinion Bearing Remover
^ J42172 Bearing Race Installer/Spanner Wrench

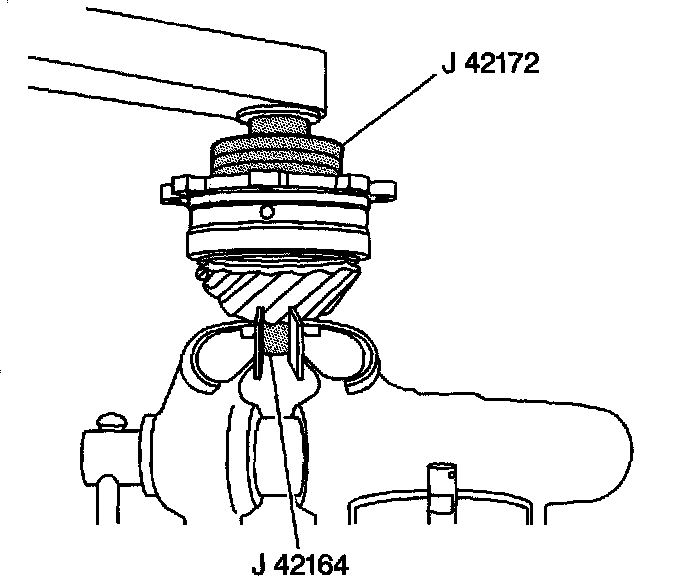

1. Remove the pinion nut using the J42172 and the J42164.
2. Position the pinion housing/cage into a press.

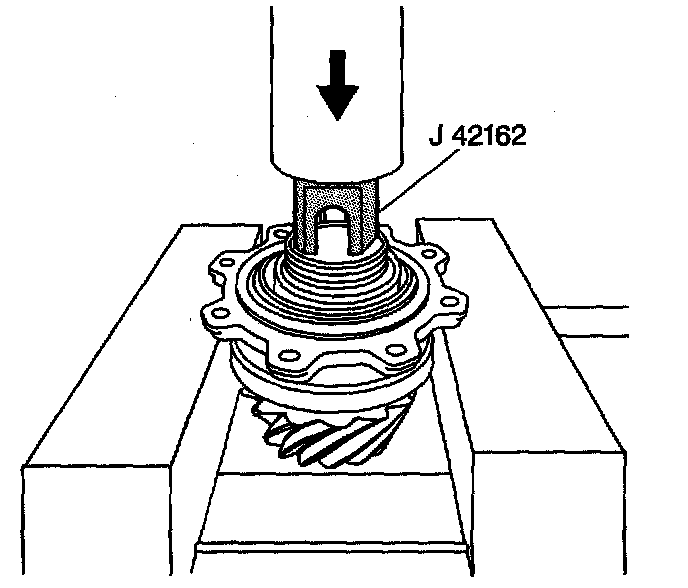

3. Use the J42162 and a hydraulic press in order to remove the pinion shaft and bearing from the housing/cage.
Important: The spacer is specific for the bearing set and must be used in order to achieve the proper bearing preload. The pinion bearings, spacer and housing/cage must be replaced as a set.

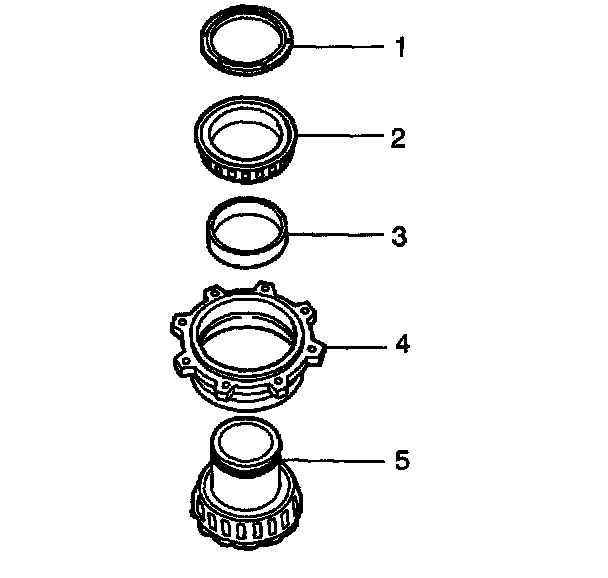

4. Remove the nut (1), bearing (2), spacer (3), and pinion shaft (5) from the housing/cage (4).
5. Install the J42166 onto the pinion shaft and bearing.

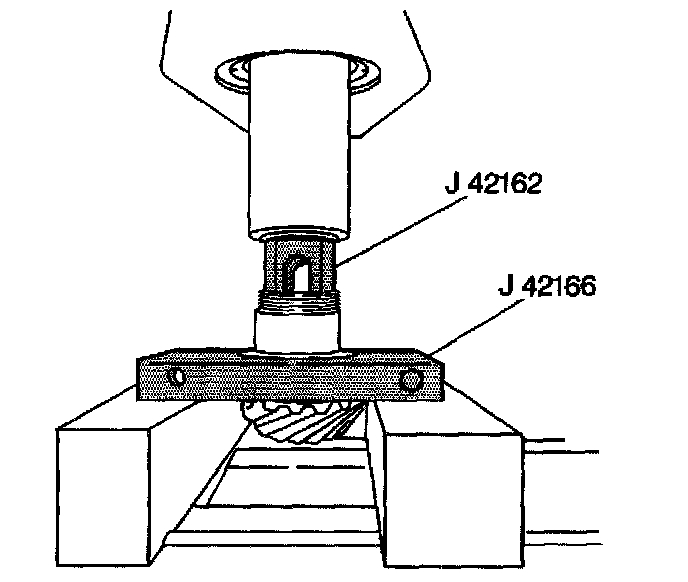

6. Use the J42162, J42166, and a hydraulic press in order to remove the bearing from the shaft.
