Hood: Service and Repair

Hood Replacement

Removal Procedure

Caution: Refer to Hood Hold Open Device Caution in Service Precautions.

Notice: When removing body panels, apply tape to corners of panel and adjacent surfaces to help prevent paint damage.




1. Disconnect the under hood light electrical wire connector located on the passenger side front of the lower radiator support.




2. Mark the location of the hinges on the frame rails using a grease pencil.
3. With the aid of a helper, support the hood assembly.

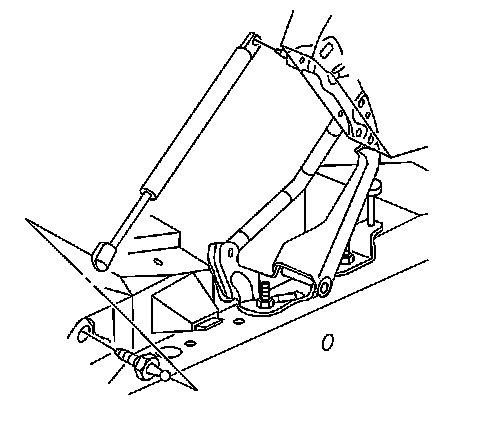

4. Remove the struts from the upper ball studs.
Pry outward on the retaining clip and pull the strut from the ball stud.

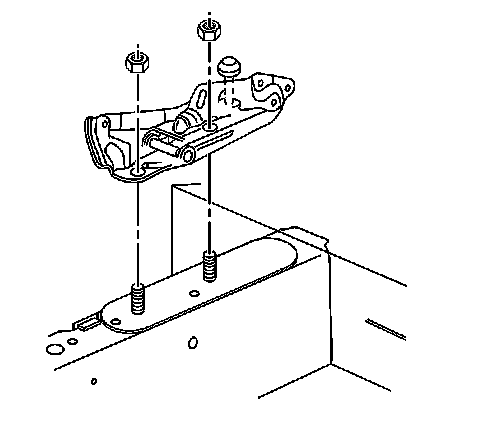

5. Remove the nuts attaching the hinge to the frame rail.




6. Remove the hood.
7. Transfer parts as necessary.

Installation Procedure




1. With the aid of a helper position the hood with hinges relative to the marks on the frame rails.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the nuts attaching the hinge to the frame rail.

Tighten the hinge to frame rail nuts to 25 N.m (18 lb ft).




3. Install the struts.




4. Connect the under hood light electrical connection.
5. Adjust the hood fit as necessary.
