Door Locks: Service and Repair

Lock Replacement - Door

Removal Procedure

Caution: Refer to Express Down Feature Caution in Service Precautions.

Important: The clip retaining the outside door handle opening rod to the door lock should not be reused. To ensure the proper retention of the rod the clip must be replaced after being opened to release the rod.




1. Remove the door trim panel.




2. Remove the water deflector.




3. Remove the switch from the door trim panel.

1. Pry up the rear edge of the driver side switch, or the front edge of the passenger side switch.
2. Slide the driver side switch rearward, or the passenger side switch forward, out of the door trim panel.

4. Reconnect the power window switch to the wire harness and raise the door window.
5. Disconnect the switch.

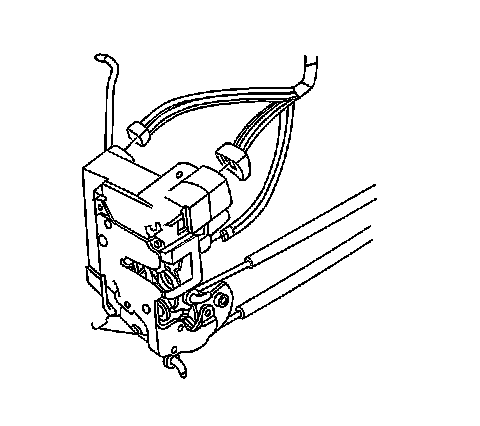

6. Disconnect the outside handle lock cylinder rod from the lock cylinder lever (key lockable outside handle).




7. Disconnect the electrical connectors from the lock.
8. Disconnect the outside handle opening rod from the door lock by opening the clip using a coolant hose removal tool or by cutting the base of the clip off with a pair of side cutters and unscrewing the clip from the rod.
9. Remove the screws from the door lock.




10. Remove the Inside door handle.




11. Disconnect the rods from the inside handle.
12. Disconnect the rods from the anti rattle retainer.




13. Remove the door lock with the inside handle and the outside handle opening rods attached.
14. Remove the rods if not reusing the lock. Note the position of each rod.

Installation Procedure

Caution: Refer to Express Down Feature Caution in Service Precautions.

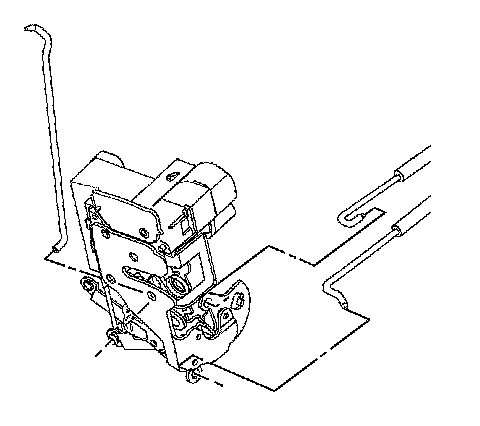

1. Install the inside door handle rods to the door lock.
2. Install the lock cylinder rod to the door lock (left door and right door Japan).

Important: To ensure the proper retention of the door opening rod to the door lock, the lock clip must be replaced after being opened to release the rod.

3. If reusing the lock, install a new outside handle door opening rod clip to the lock, (a new clip is supplied with a new lock).




4. Position the door lock to the inside of the door.

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the door lock upper screw first, then install the lower screws.

Tighten the door lock screws to 10 N.m (89 lb in).




6. Connect the lock rod to the outside handle lock cylinder lever (key lockable outside handle).
7. Connect the outside handle opening rod to the door lock.




8. Connect the electrical connectors.




9. Connect the rods to the inside handle.




10. Install the inside door handle.
11. Snap the inside handle rods, at the black line on the rod sleeve, into the door anti-rattle clip.




12. Install the water deflector.
13. Connect the power window switch and lower the door window.
14. Disconnect the power window switch.




15. Install the door trim panel.
16. Install the door switch

1. Connect the electrical connector.
2. Insert the front edge of the driver side switch, the rear edge of the passenger side switch, into the door trim panel.
3. Press the rear edge of the driver side switch, the front edge of the passenger side switch, into the door trim panel to secure.
