Connector Views

Inside Rearview Mirror-DDO:




Inside Rearview Mirror-W/O DDO:

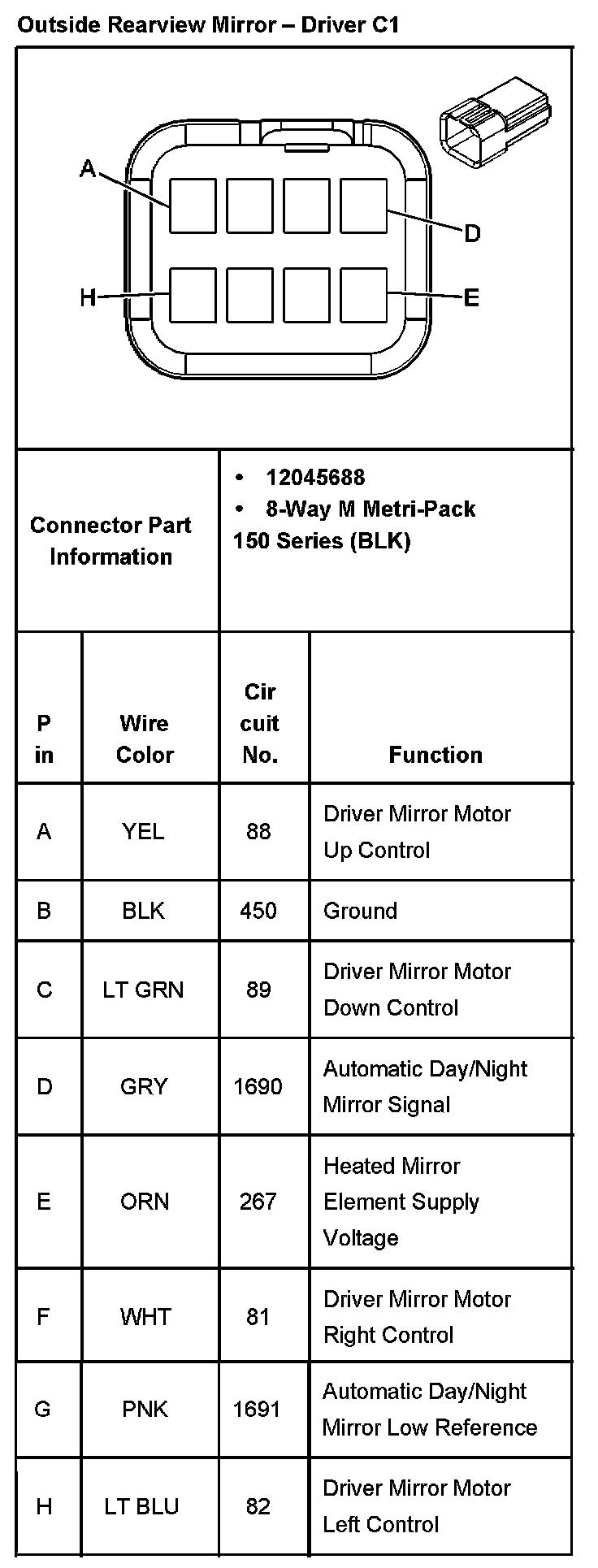

Outside Rearview Mirror-Driver C1:




Outside Rearview Mirror-Driver C2:

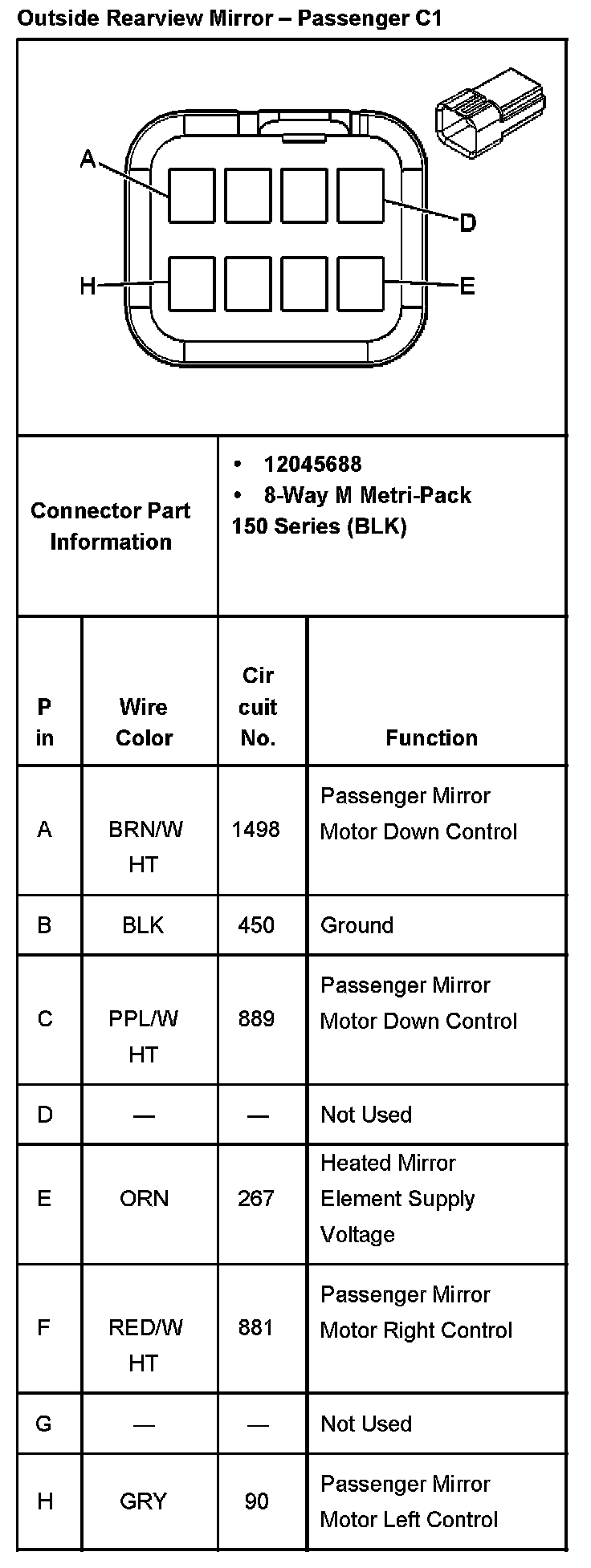

Outside Rearview Mirror-Passenger C1:

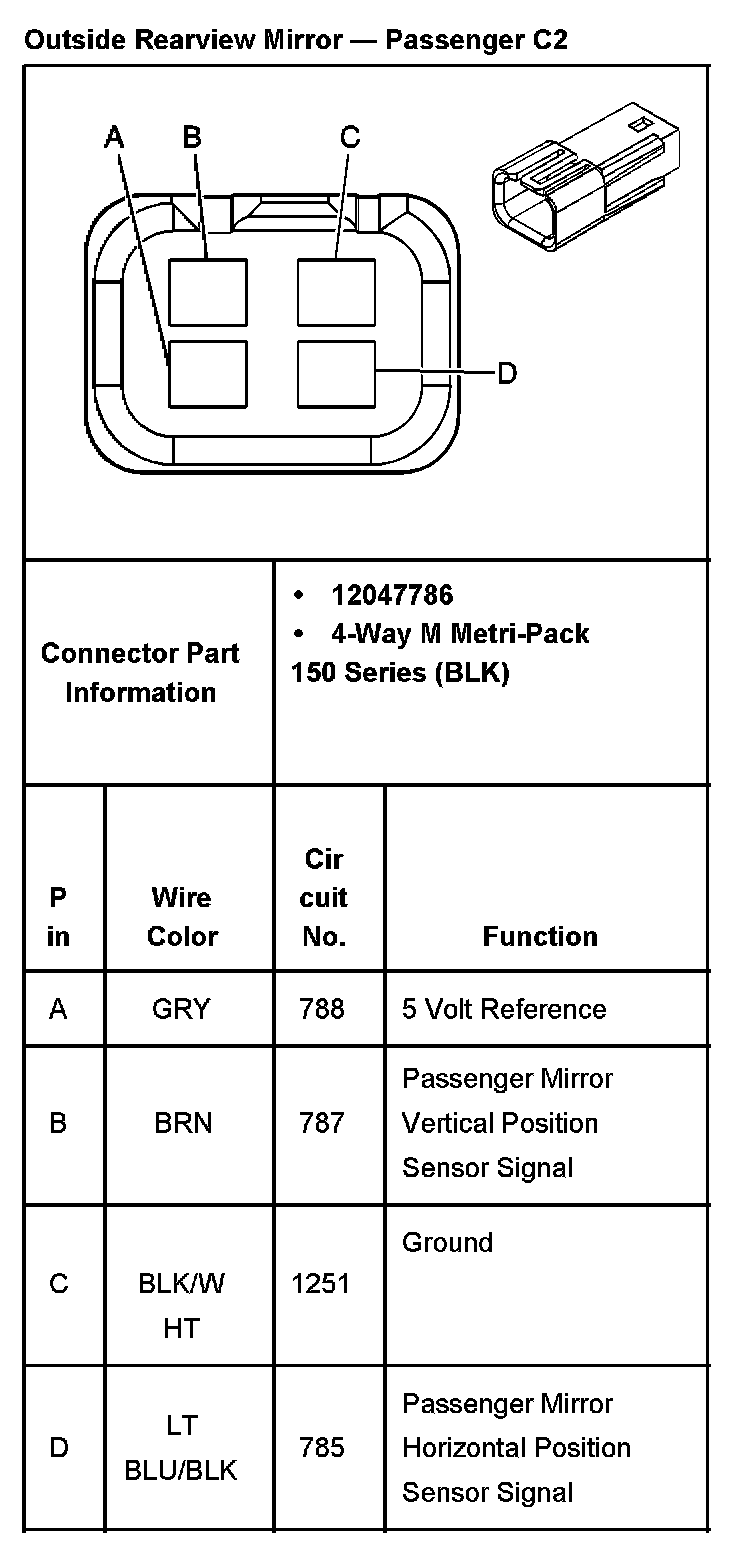

Outside Rearview Mirror-Passenger C2:
