Seat Replacement (Power)
Seat Replacement (Power)
Removal Procedure
1. Place a protective cover over the sill plate and door trim panel and/or remove the roof lift off panel (coupe), or lower the folding top (convertible), to provide additional space for seat removal.
2. Tilt the steering wheel full up.
3. Position the seat rearward.
4. Remove the push pins and covers from the front of the adjuster legs.
5. Remove the nuts from the front of the adjuster legs.
6. Position the seat forward. If the rear adjuster nuts are accessible skip to step 9. If the seat will not move and the rear adjuster nuts are not accessible determine if the motor or the adjuster is the cause and perform step 7 or 8.
7. If the power seat motor is inoperative and the rear adjuster nuts are not accessible perform the following steps.
1. Power up and raise the front of the power seat to gain access to the forward motor bracket.
2. Reach under the seat and cut the tie strap attaching the front motor bracket to the torque tube.
3. Bend the bracket ends inward and slide the bracket off the adjuster transmissions.
4. Pull the forward motor cables from the adjusters.
5. Insert one end of a removed cable into a low speed drill and insert the other end into the adjuster.
6. With the low speed drill move the adjuster forward, alternating sides, until the rear adjuster nuts are exposed.
8. If the seat adjuster is inoperative and the rear adjuster nuts are not accessible perform the following steps:
1. Remove the recliner handle.
2. Remove the seat side trim panel.

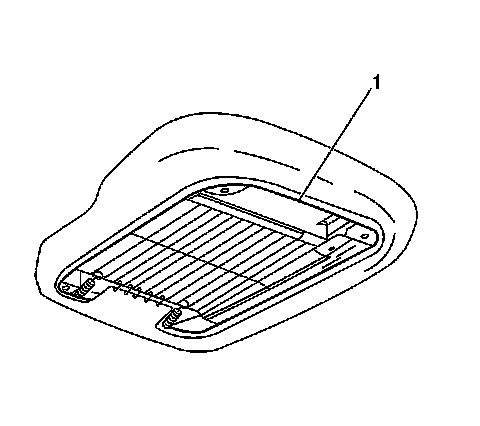

3. Reach under the seat cushion and cut the seat cover tie string (1) at the front center of the seat cushion.
4. Lift the seat cushion cover and foam to access the 4 seat cushion to frame attaching bolts.
5. Remove the seat cushion to frame attaching bolts.
6. Cut the tie straps mounting the lumbar pump pouch and reposition the pump and pouch up through the seat support wires.
7. Remove the memory seat control module from the seat.
8. Disconnect the seat belt harness rosebud clip (drivers seat).
9. Disconnect the electrical connectors.
10. Remove the seat.
9. Remove the nuts attaching the rear adjuster legs.
10. Disconnect the seat electrical connector.
11. Remove the seat and/or the adjuster.
12. Transfer parts as necessary.
Installation Procedure
1. Install the adjuster(s) to the seat if removed.
2. Install the seat cushion cover, if removed.
Notice: Refer to Fastener Notice in Service Precautions.
3. Install the buckle side of the seat belt, if removed.
Tighten the seat belt buckle side mounting nut to 50 N.m (37 lb ft).
4. Install the front motor bracket, if removed.
5. Install the lumbar pump, if removed.
6. Position the seat forward on the adjuster(s).
7. Position the seat with the adjuster on the rear studs.
8. Lift the front of the seat and connect the electrical connector.
9. Install the nut to the rear inboard stud (net locating stud).
10. Install the nut to the rear outboard stud.
Tighten the adjuster mounting nuts to 50 N.m (37 lb ft).
11. Move the seat rearward.
12. Install the nuts to the front adjuster legs.
Tighten the adjuster mounting nuts to 50 N.m (37 lb ft).
13. Install the adjuster leg covers.
14. Secure the covers with push pins.
15. Remove the protective cover and/or install the roof lift off panel, or raise the convertible top.
