Component Tests and General Diagnostics

Park Brake System Diagnosis

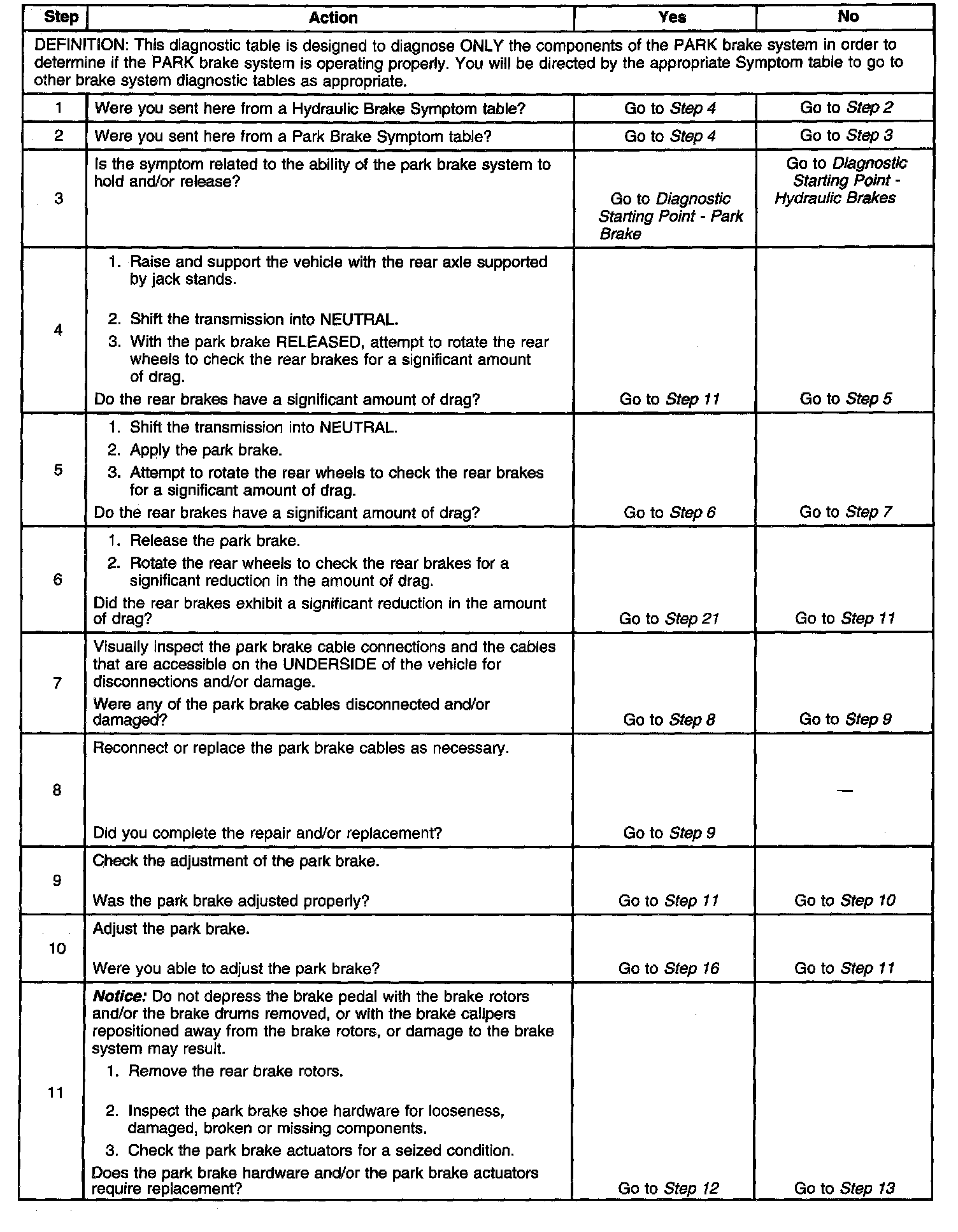

Test 1 - 11





Test 12 - 23

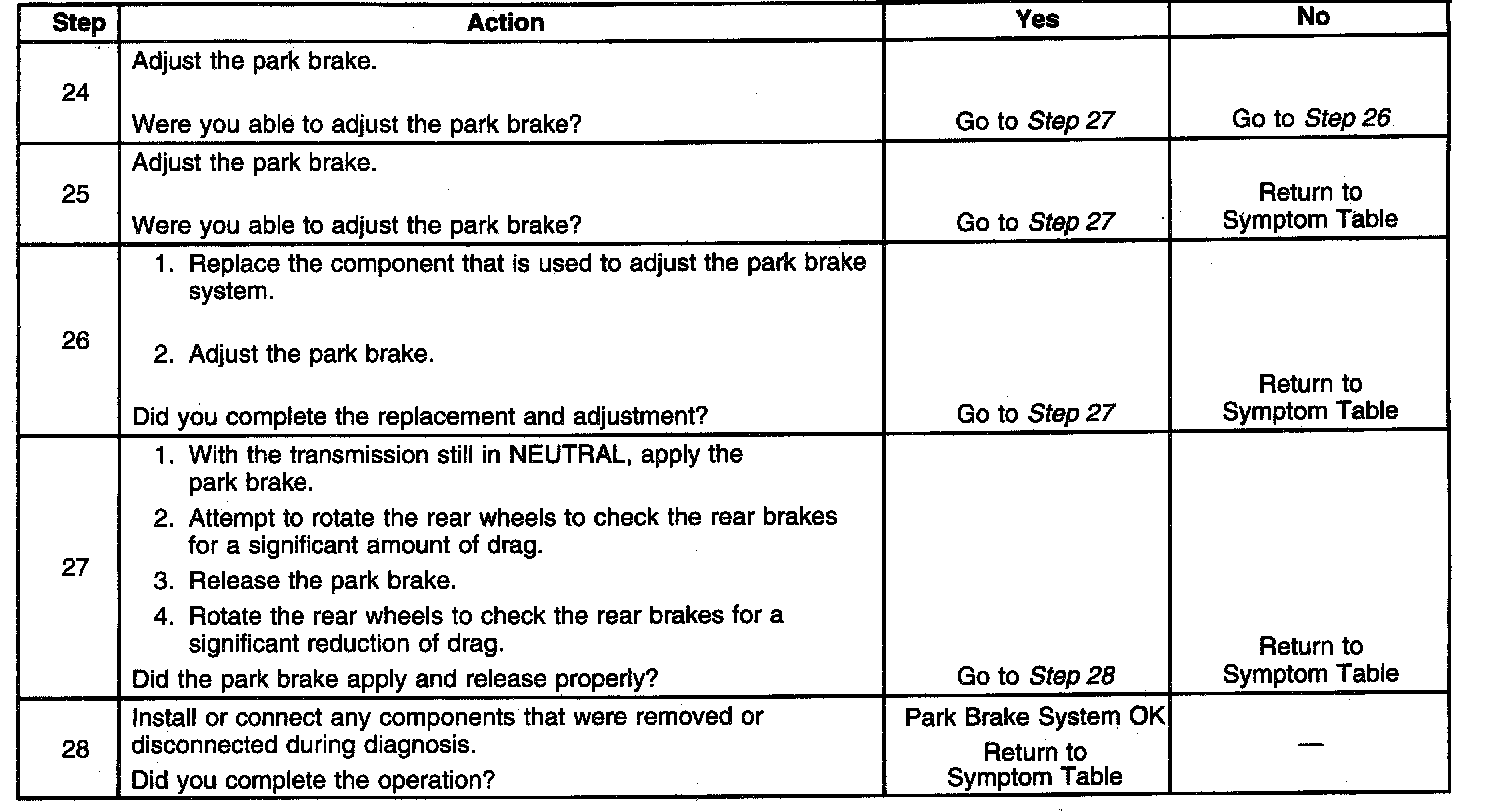

Test 24 - 28
