Bose(R) Signal Processor - Coupe

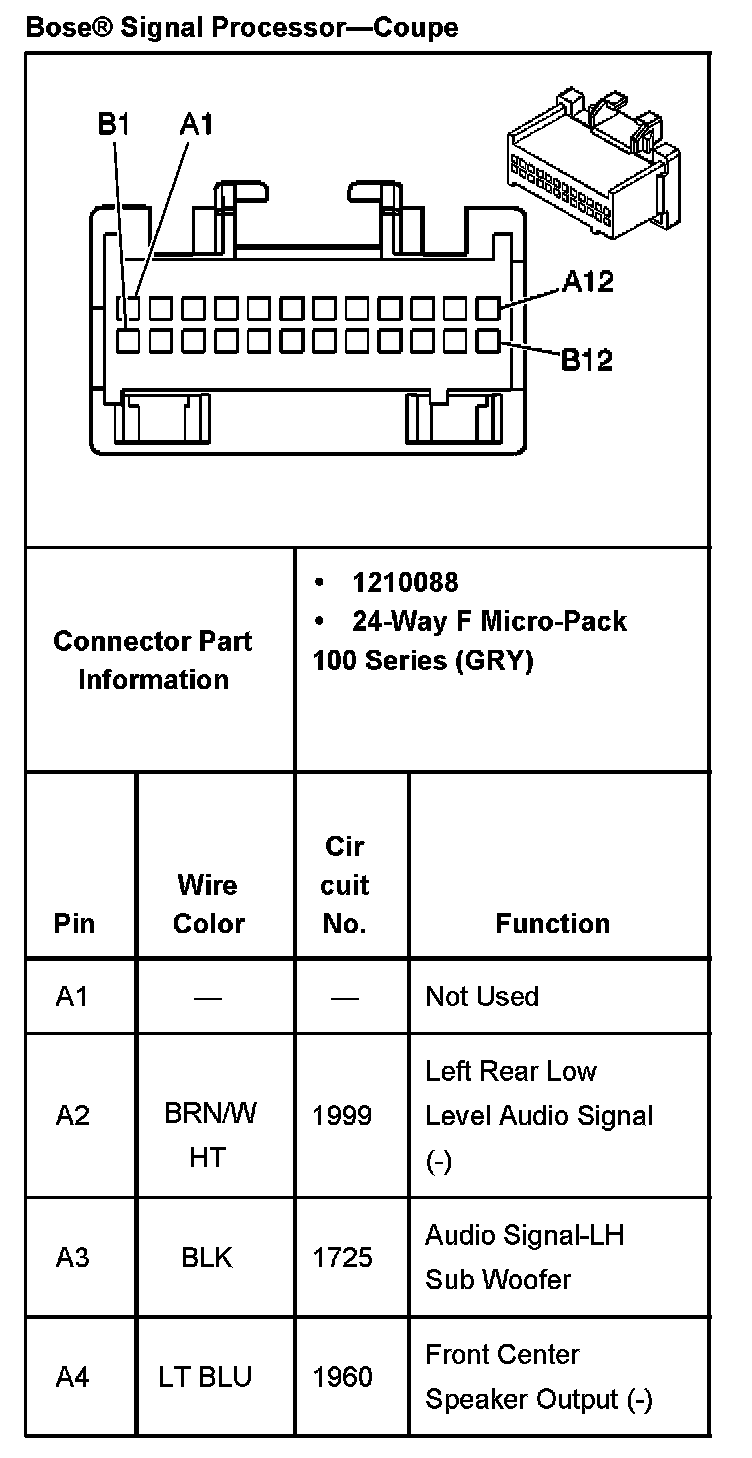

Bose(R) Signal Processor Coupe Part 1:

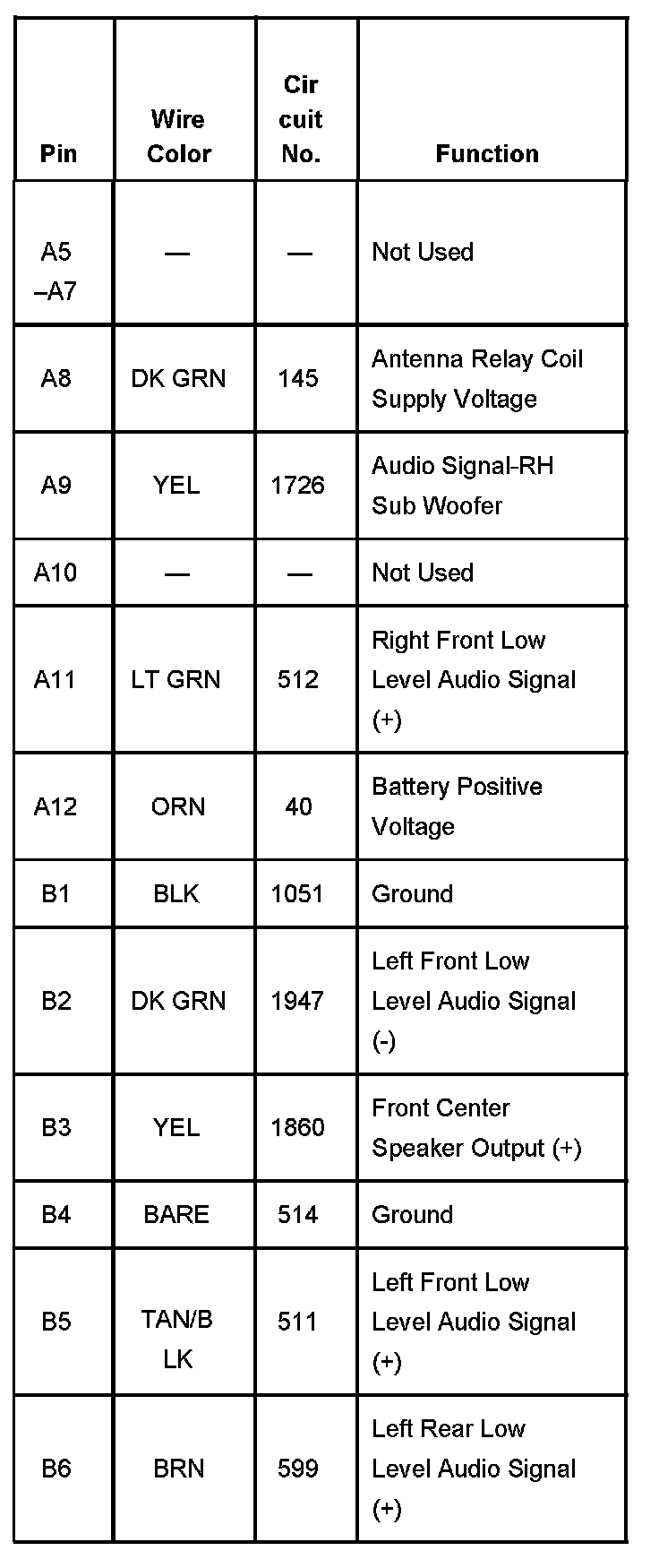

Bose(R) Signal Processor Coupe Part 2:

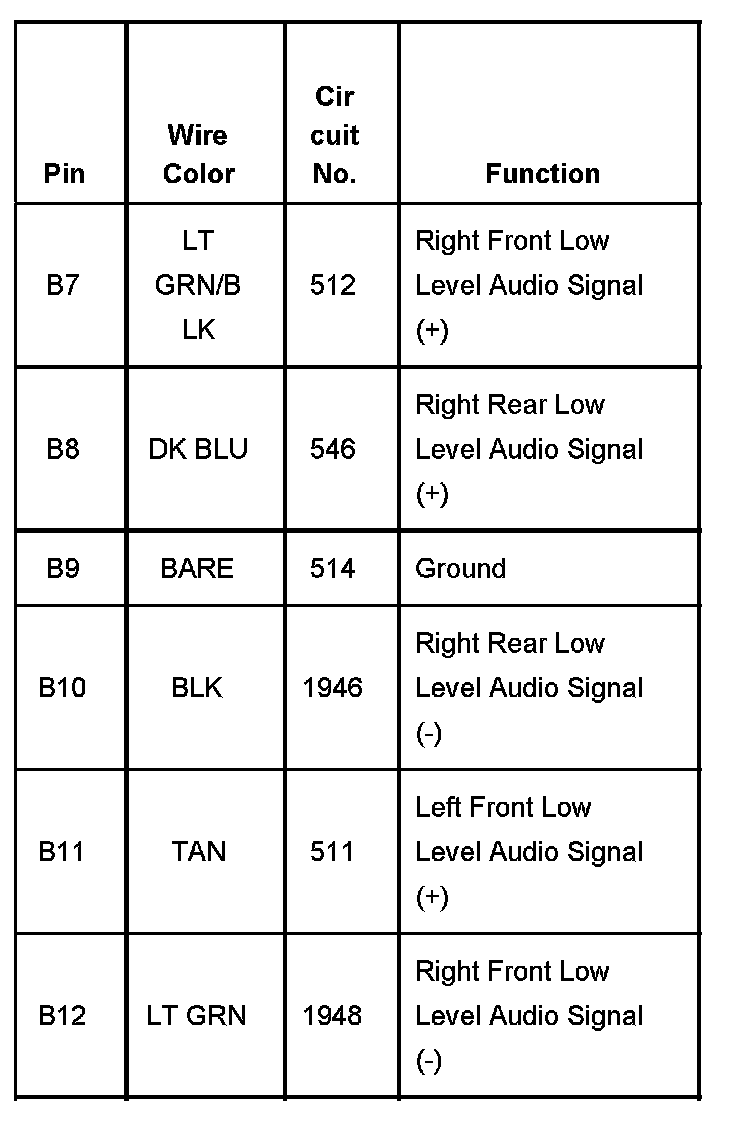

Bose(R) Signal Processor Coupe Part 3:
