Pressure Regulating Solenoid, A/T

Automatic Transmission Internal Connector End Views

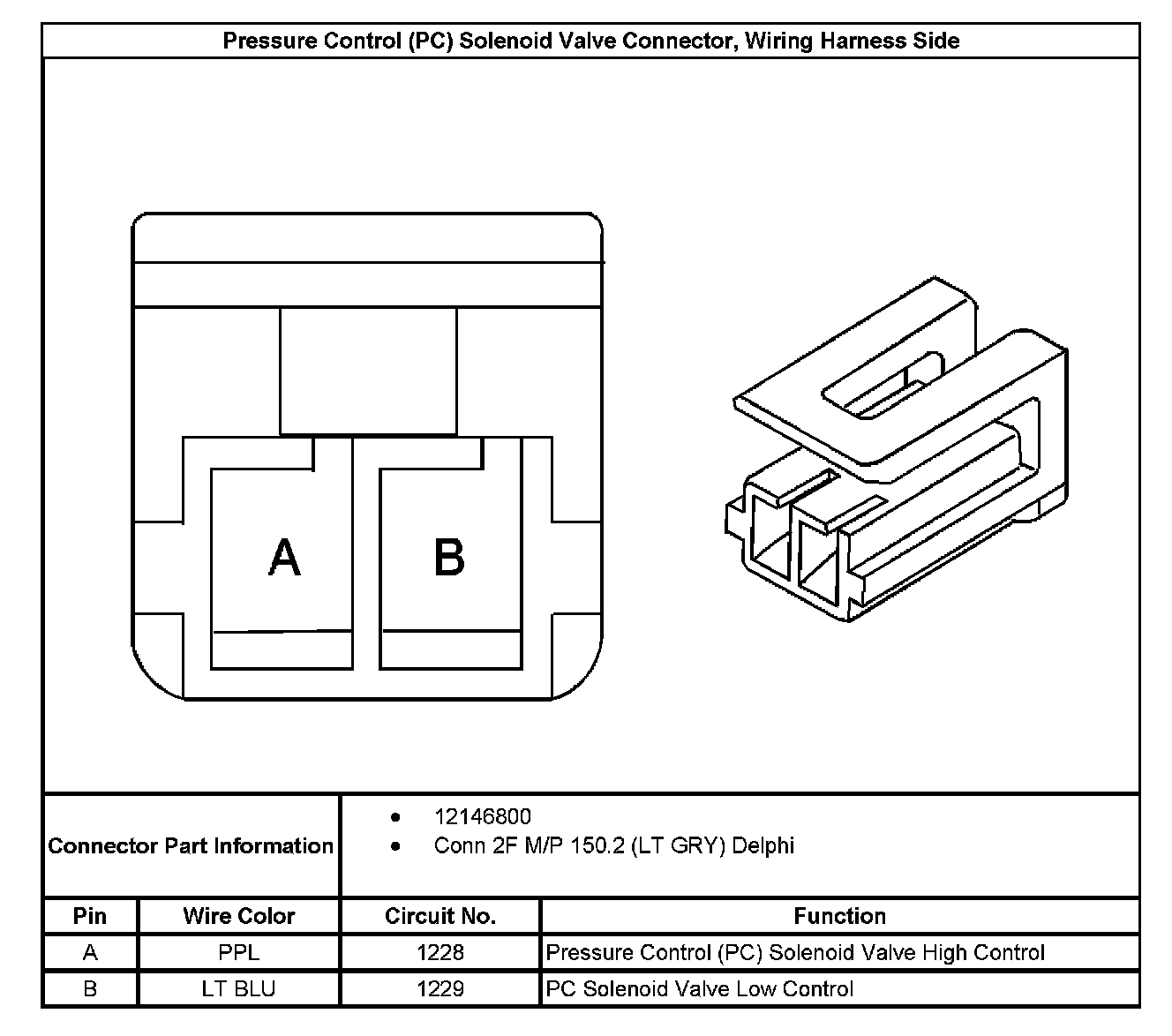

Pressure Control (PC) Solenoid Valve Connector, Wiring Harness Side
