Transmission Position Sensor/Switch, A/T

Automatic Transmission Related Connector End Views

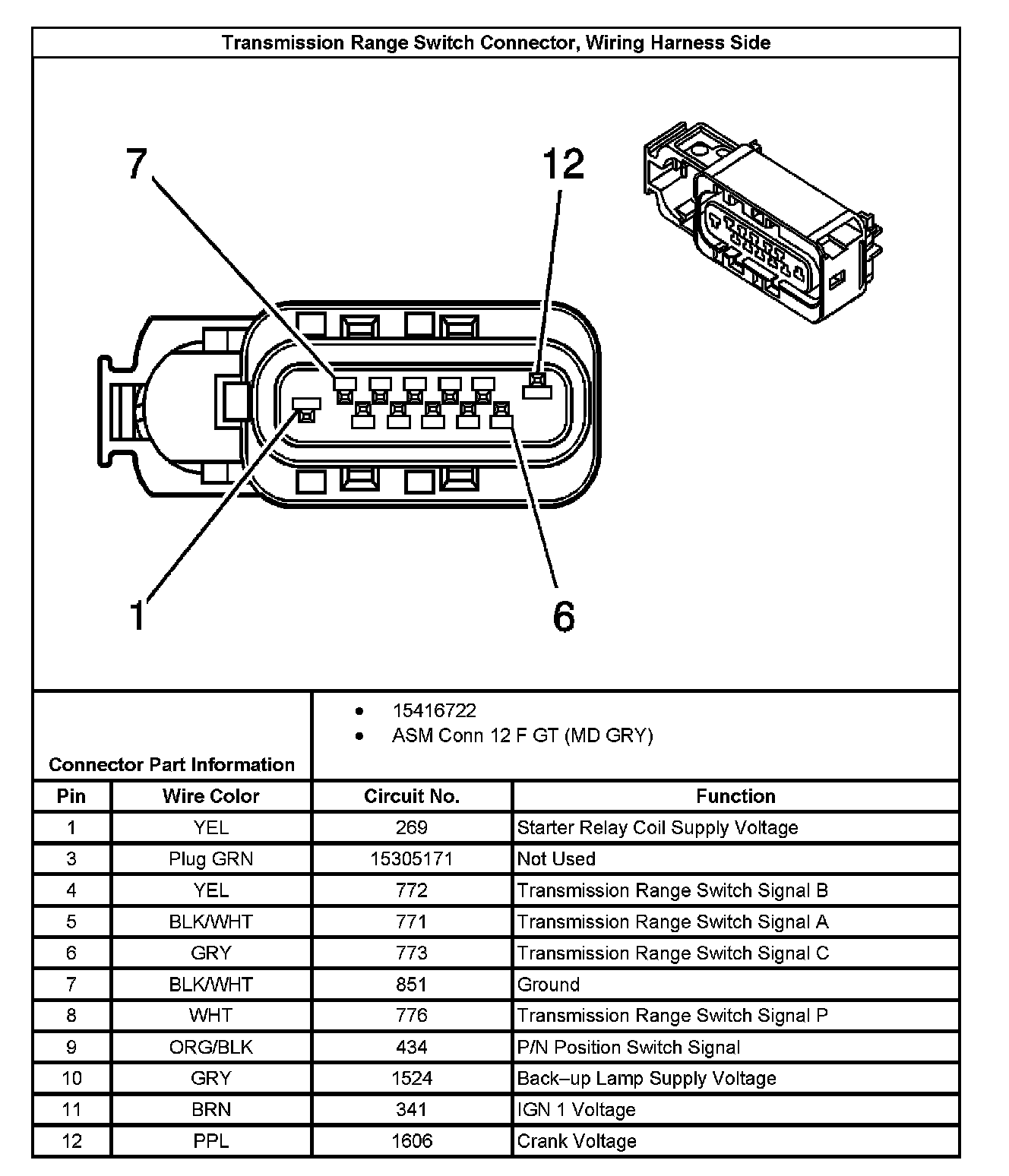

Transmission Range Switch Connector, Wiring Harness Side
