Backup Lamp
>>
System Diagram
System Diagram

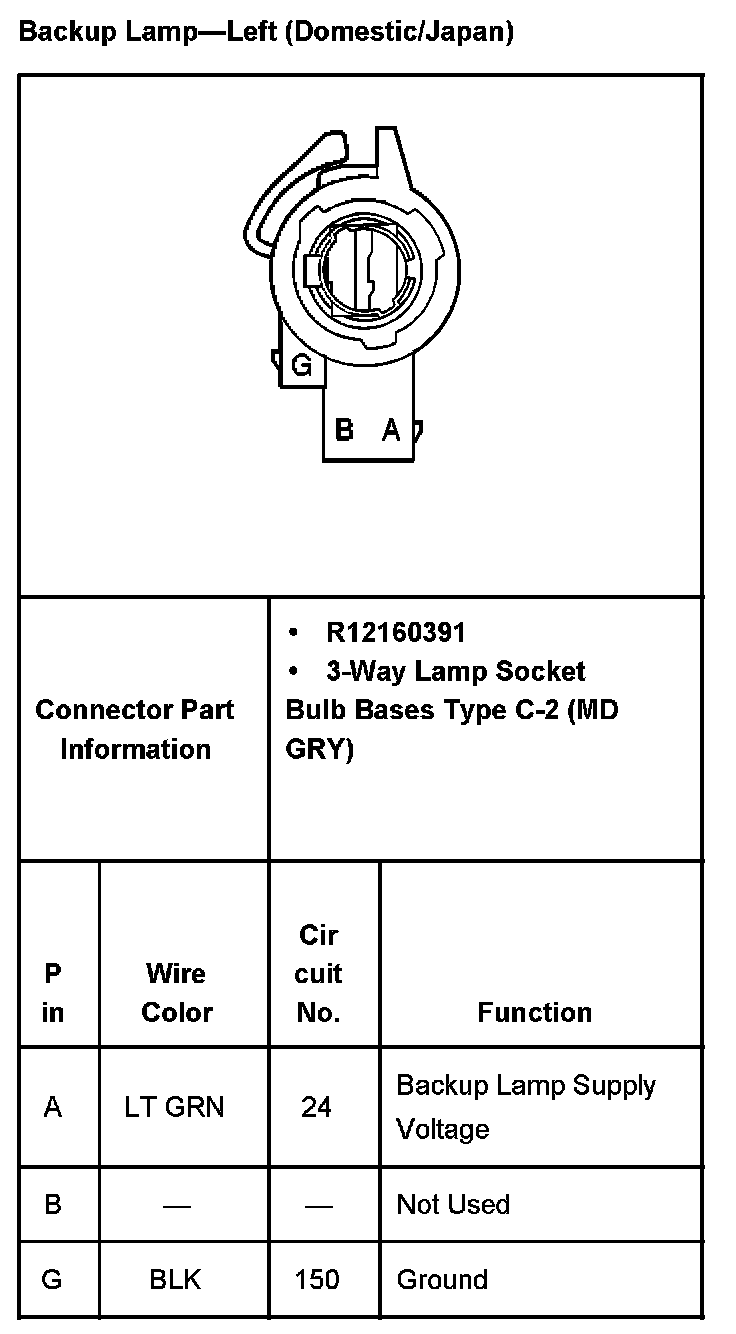

Backup Lamp - Left (Domestic/Japan):
Backup Lamp - Left(Europe):
Backup Lamp - Right(Domestic/Japan):
Backup Lamp - Right(Europe):
