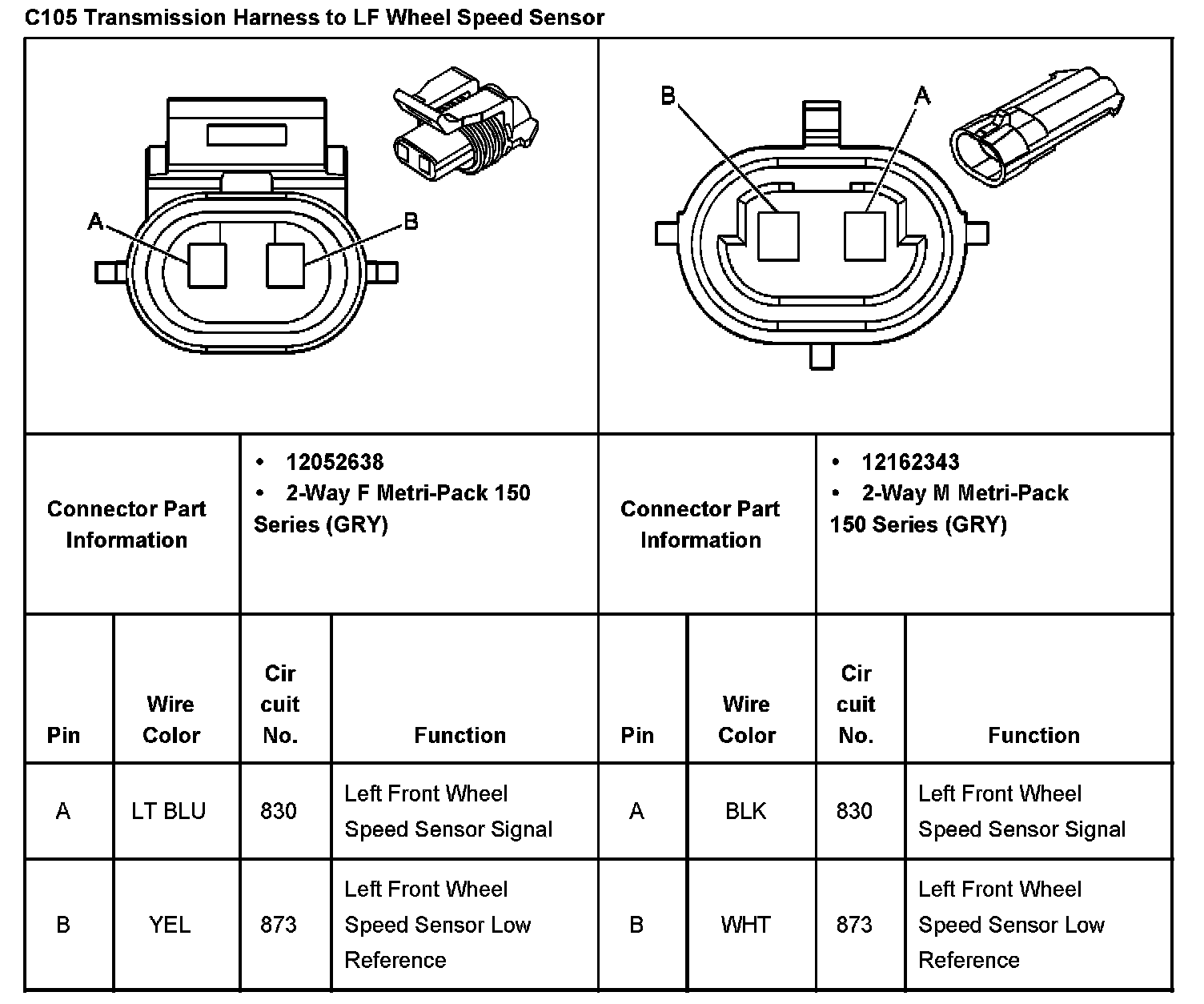

C105 Transmission Harness to LF Wheel Speed Sensor
C105 Transmission Harness to LF Wheel Speed Sensor
C105 Transmission Harness To LF Wheel Speed Sensor:
