C148 Transmission Harness to Forward Lamp Harness

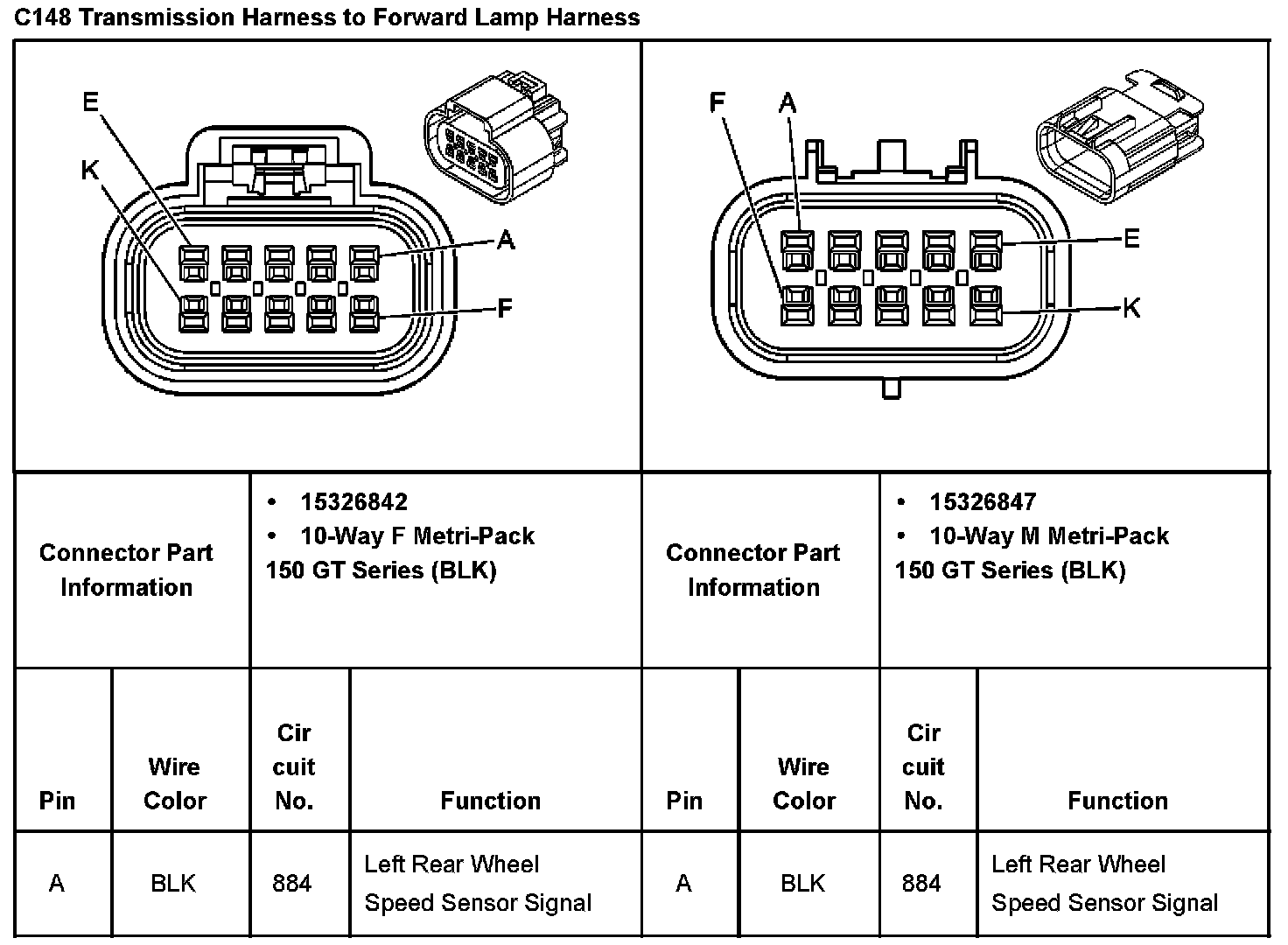

C148 Transmission Harness to Forward Lamp Harness
C148 Transmission Harness To Forward Lamp Harness Part 1:
C148 Transmission Harness To Forward Lamp Harness Part 2:
